Bolt Tightening Procedure For Cylinder Head Cover - AR01.20-P-5014-03MR
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 274
CRANKCASE VENTILATION, CYLINDER HEAD COVER, CAMSHAFT BEARING HOUSING
| Number | Designation | ENGINE 274 | ||
|---|---|---|---|---|
| BA01.20-P-1001-01R | Bolt, cylinder head cover to cylinder head | Stage 1 | Nm | 10 |
| Stage 2 | ∠° | 90 | ||

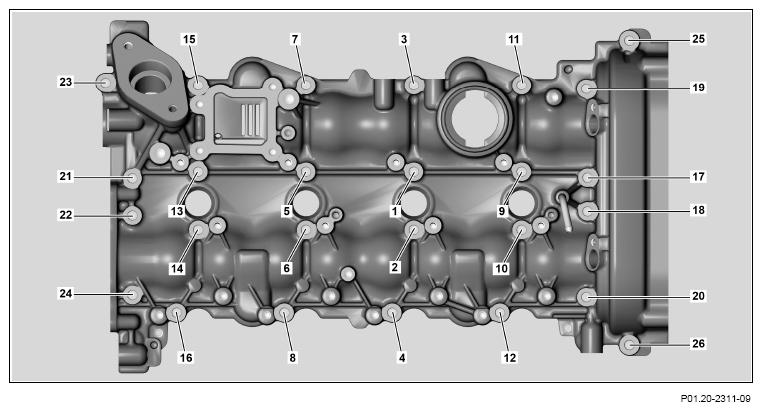

Tighten cylinder head cover bolts in the numerical sequence.
Replace screw/bolts.
- Tighten screw/bolts (1 to 26) according to Stage 1.
- Tighten screw/bolts (1 to 26) according to Stage 2.
