Attach/Detach Engine Hoist - AR01.10-P-2400-17MRI

Engine 264 in model 205, 253

Fig 1: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

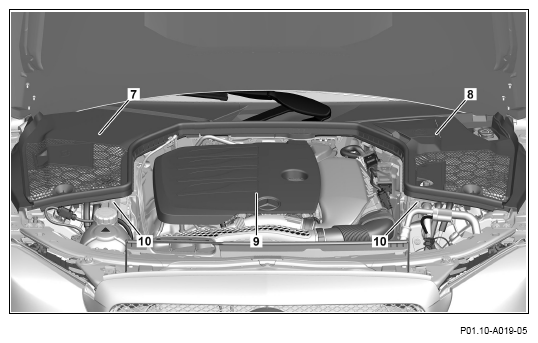

1. Remove upper engine cover (9).
2. Remove right engine compartment cover (7).
3. Remove left engine compartment cover (8).
4. Remove seals (10).

   Courtesy of MERCEDES-BENZ USA

5. Remove expansion reservoir of the coolant and place to one side with connected lines.
6. Engine 264 in model 205 with code B01 (48V technology)

   Remove expansion reservoir of the low-temperature circuit and place to one side with connected lines.

   Courtesy of MERCEDES-BENZ USA

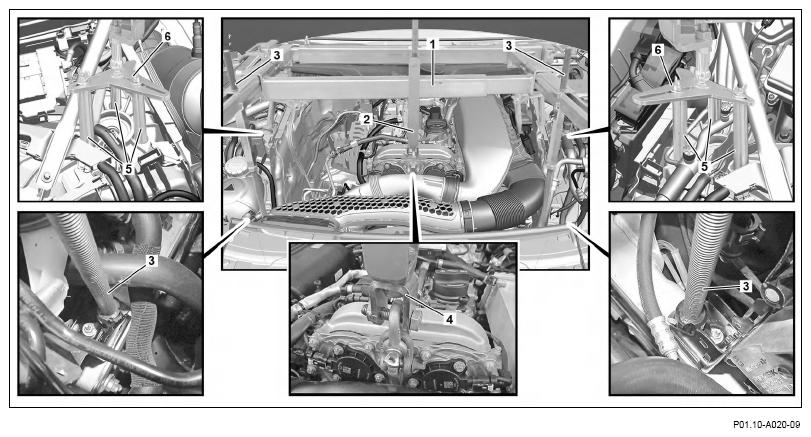

7. Attach adapter plates (6) to engine support fixture (1).
8. Attach adapter (5) to adaptation plates (6).
9. Attach engine support fixtures (3) to engine support fixture (1).
10. Preset engine support fixture (1).
11. Place engine support fixture (1) on suspension strut towers and longitudinal members.

    Helper required.

12. Adjust engine support fixture (1), align it horizontally and tighten threaded connections.
13. Attach shackle between support (4) and the engine suspension lug.
14. Tighten turnbuckle of lifting device (2).

    When lifting the engine, to not subject engine mounts to tension.

    The engine mount can get damaged otherwise.

15. Remove in the reverse order.
