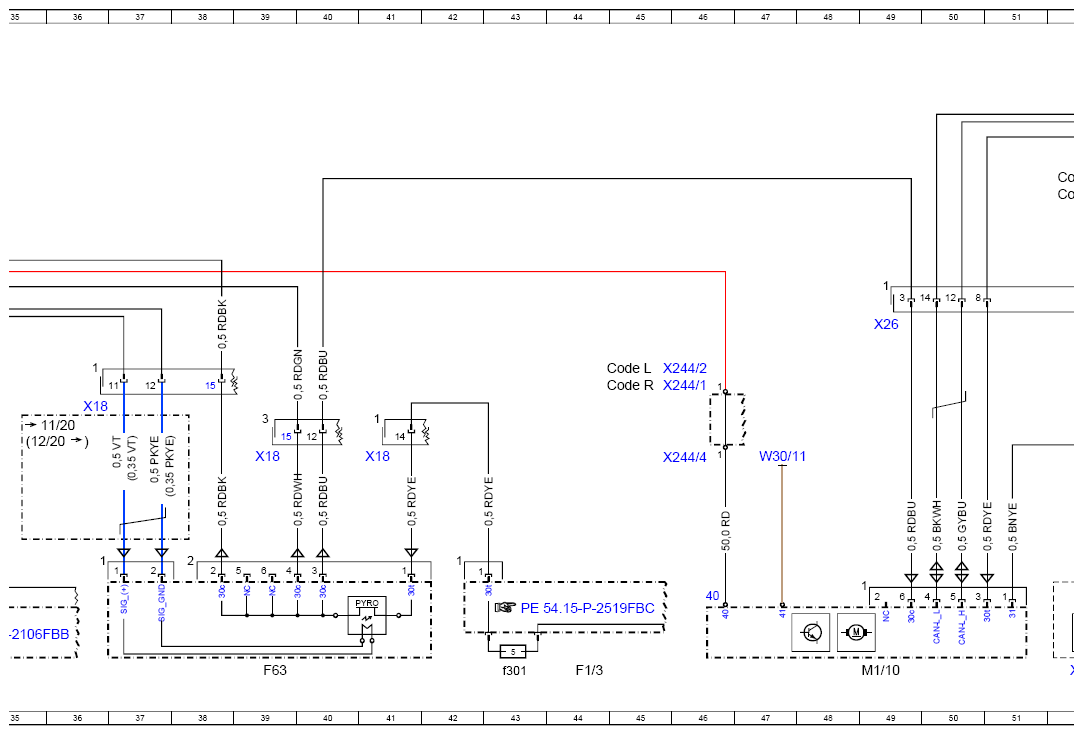

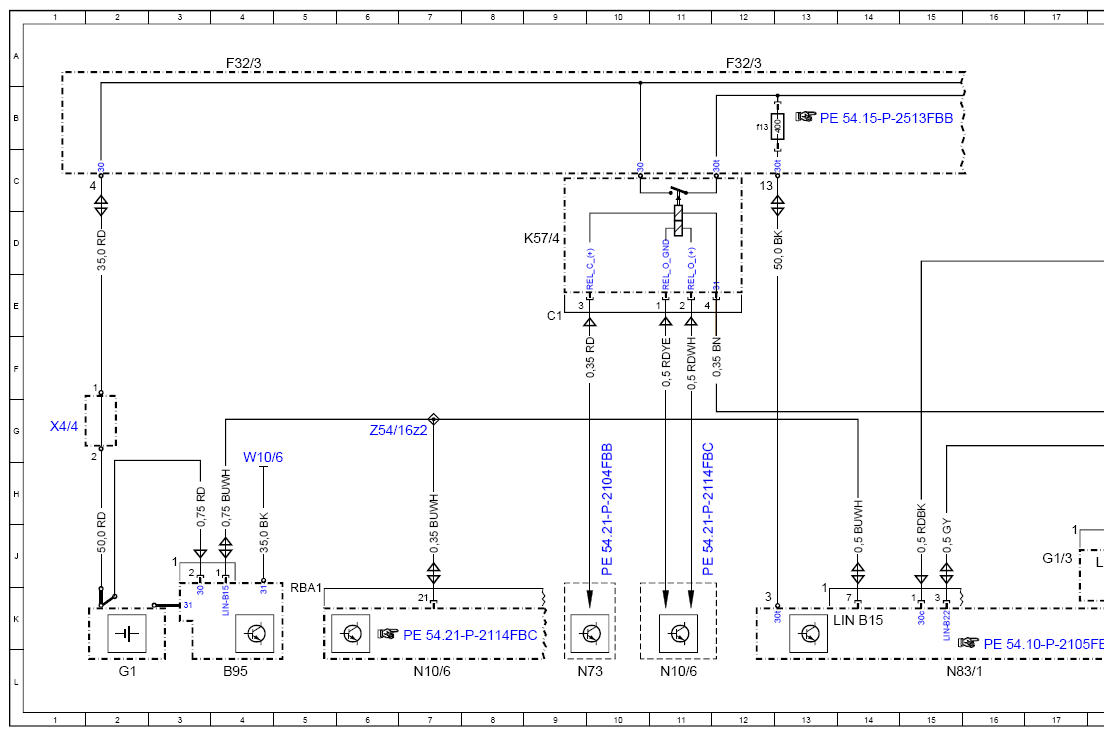

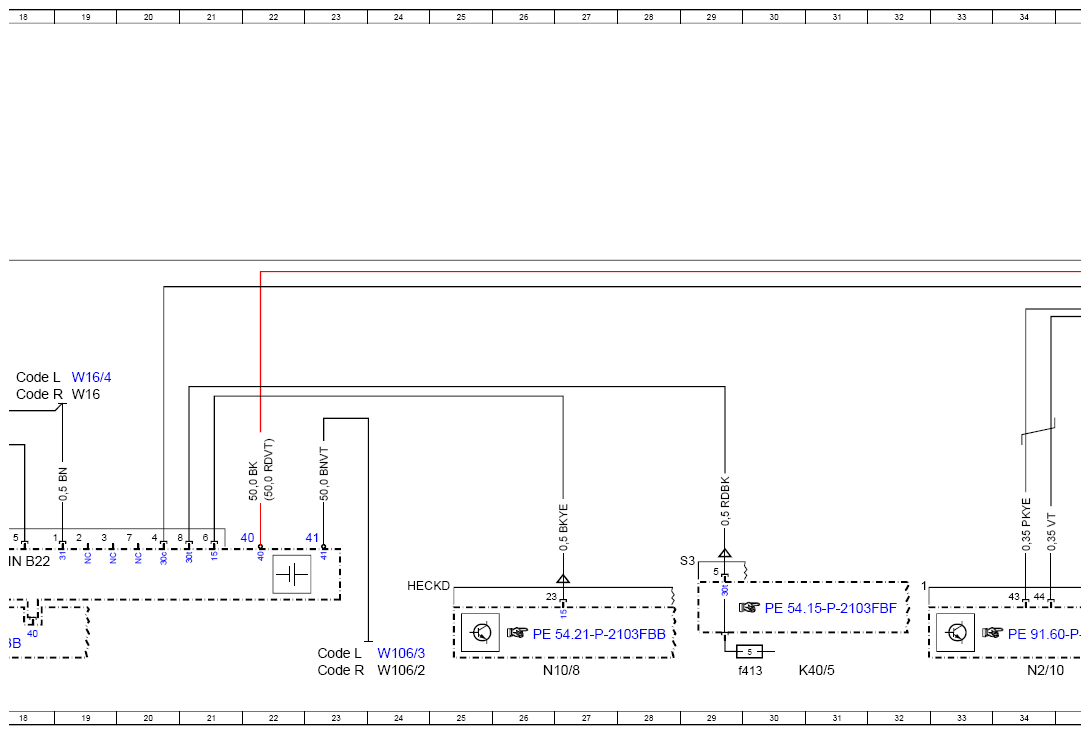

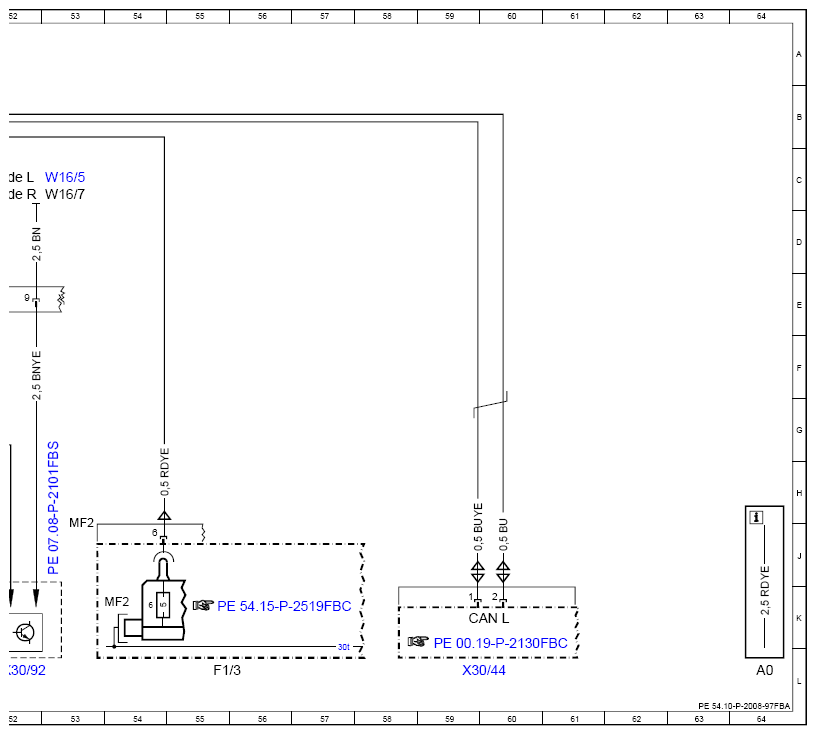

Wiring Diagram Of 48V On-Board Electrical System - PE54.10-P-2008-97FBA
Model 205 as of model year 2019 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| B95 | Battery sensor | 4L |
| CAN L | Hybrid CAN | 59K |
| Code L | LEFT-HAND DRIVE | 18F |
| Code L | LEFT-HAND DRIVE | 23L |
| Code L | LEFT-HAND DRIVE | 44F |
| Code L | LEFT-HAND DRIVE | 52C |
| Code R | RIGHT-HAND DRIVE | 23L |
| Code R | RIGHT-HAND DRIVE | 18G |
| Code R | RIGHT-HAND DRIVE | 44F |
| Code R | RIGHT-HAND DRIVE | 52C |
| F1/3 | Passenger-side A-pillar fuse box | 44L |
| F1/3 | Passenger-side A-pillar fuse box | 55L |
| F1/3MF2 | Multiple fuse 2 | 54K |
| F1/3f301 | Fuse 301 | 43L |
| F32/3 | Engine compartment prefuse box | 4A |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3f13 | Fuse 13 | 12B |
| F63 | Pyrofuse | 39L |
| G1 | On-board electrical system battery | 2L |
| G1/3 | 48 V on-board electrical system battery | 17J |
| K40/5 | Rear fuse and relay module | 31L |
| K40/5f413 | Fuse 413 | 30L |
| K57/4 | Battery disconnect switch relay | 9D |
| LIN B15 | Battery sensor LIN | 14K |
| LIN B22 | 48 V on-board electrical system LIN | 18J |
| M1/10 | Starter-alternator | 49L |
| N10/6 | Front SAM control unit | 7L |
| N10/6 | Front SAM control unit | 11L |
| N10/8 | Rear SAM control unit | 26L |
| N2/10 | Supplemental restraint system control unit | 34L |
| N73 | Electronic ignition switch control unit | 9L |
| N83/1 | DC/DC converter control unit | 15L |
| W10/6 | Rear on-board electrical system battery ground point | 4H |
| W106/2 | 48 V on-board electrical system battery ground point, left | 24L |
| W106/3 | 48 V on-board electrical system battery ground point, right | 24L |
| W16 | Major assembly compartment ground point | 19G |
| W16/4 | Right major assembly compartment ground point | 19F |
| W16/5 | Left major assembly compartment electronics ground point | 53C |
| W16/7 | Right major assembly compartment electronics ground point | 53C |
| W30/11 | Underbody tml. 41 ground point | 47H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 36G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 39H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 41H |
| X244/1 | Firewall through-hole plating electrical connector | 45F |
| X244/2 | Right vehicle-end busbar stud 1 | 45F |
| X244/4 | Right engine-end busbar stud 1 | 45H |
| X26 | Interior and engine wiring harness electrical connector | 49E |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 59L |
| X30/92 | Circuit 31 potential distributor 1 | 52L |
| X4/4 | Terminal block (circuit 30) | 1G |
| Z54/16z2 | LIN B15 connector sleeve | 7G |
