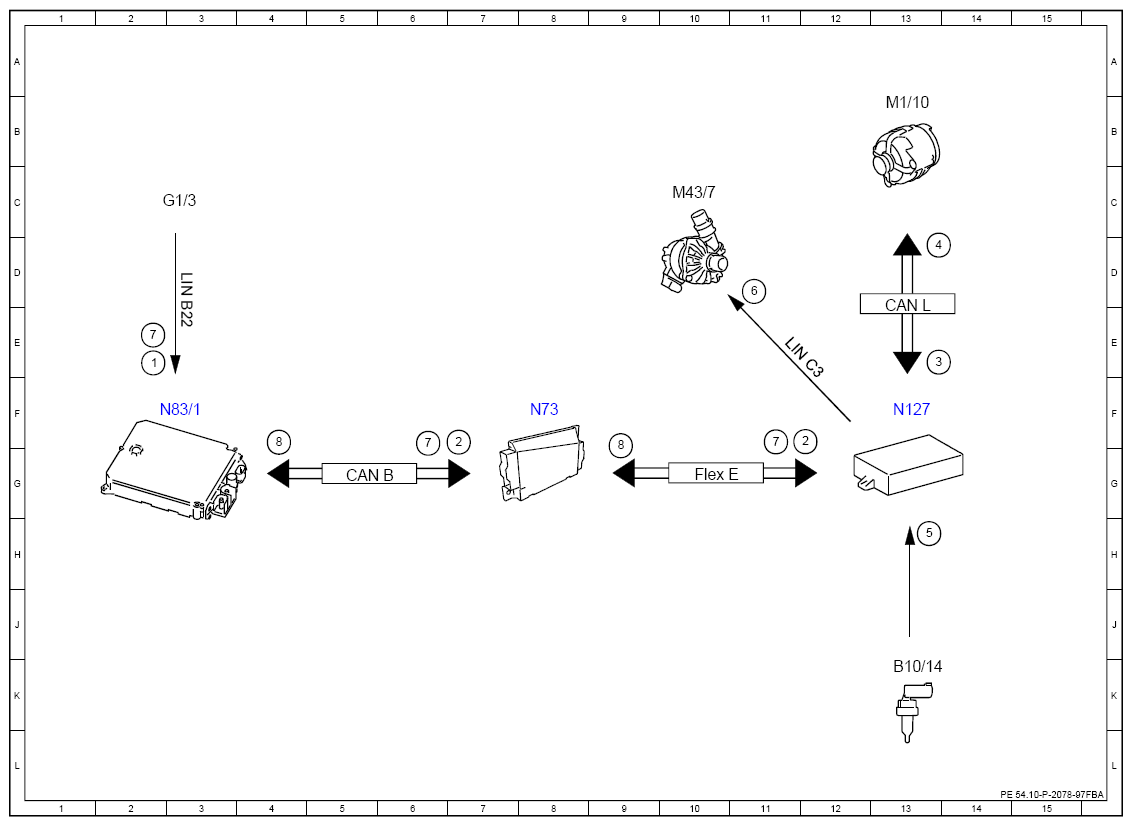

Electrical Function Schematic For 48V On-Board Electrical System - PE54.10-P-2078-97FBA
Model 205, 253 with engine 264 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | 48 V on-board electrical system battery, status | 2E |
| 2 | Current and voltage limits, signal | 7F |
| 2 | Current and voltage limits, signal | 12F |
| 3 | Alternator operating rate, signal | 13E |
| 4 | Operating mode, request | 13D |
| 5 | Low-temperature circuit temperature sensor, signal | 13H |
| 6 | Low temperature circuit circulation pump 2, actuation | 11D |
| 7 | 48 V battery temperature, signal | 2E |
| 7 | 48 V battery temperature, signal | 7G |
| 7 | 48 V battery temperature, signal | 11F |
| 8 | Low-temperature circuit cooling, status | 4G |
| 8 | Low-temperature circuit cooling, status | 9G |
| B10/14 | Low-temperature circuit temperature sensor 2 | 13K |
| CAN B | Interior CAN | 5G |
| CAN L | Hybrid CAN | 13E |
| Flex E | Chassis FlexRay | 10G |
| G1/3 | 48 V on-board electrical system battery | 3C |
| LIN B22 | 48 V on-board electrical system LIN | 3D |
| LIN C3 | Drivetrain LIN | 11E |
| M1/10 | Starter-alternator | 13B |
| M43/7 | Low temperature circuit circulation pump 2 | 10C |
| N127 | Drivetrain control unit | 13F |
| N73 | Electronic ignition switch control unit | 8F |
| N83/1 | DC/DC converter control unit | 3F |
