Measure Absolute Angle At Transmission - AR41.10-P-0085-01LW

Model 205, 213, 238, 253

	Notes on measuring the drive shaft articulation angle		AH41.10-P-0002-01LF
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B
	000 588 04 19 00 Articulation angle inclinometer		WS26.00-P-0140B

Electronic inclination/propeller shaft articulation angle meter

1. Press the STEP button.

   Articulation angle measurement is selected.

   Display message menu

   Courtesy of MERCEDES-BENZ USA

2. Press STEP button while main menu is displayed.

   Measurement is selected.

   Perform measurement of all angles without interruption. An angle that has already been measured can be measured a second time if required. To do so, with the Measurement menu displayed, press the STEP button repeatedly until the display indicates Ready to measure the relevant angle.

   Main menu display message

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on TRANSMISSION 722.9

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 716.7

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 725.0

   Measurement of angle 1 at transmission

3. 1. 3.1) Model 205 with transmission 722.9, 724.2

      Model 253 with transmission 724.2

      Clean mounting hole and its surrounding area in electrical auxiliary oil pump (M42).

   2. 3.2) Model 205, 213, 238, 253 with transmission 716.7, 725.0

      Clean mounting hole and its surrounding area on underside of transmission.

4. Select suitable measuring sleeve mount (020e) for mounting hole.
5. Insert measuring sleeve mount (020e) into mounting hole.
6. Turn threaded pin (020f) to left and tighten.

   Courtesy of MERCEDES-BENZ USA

   Shown on TRANSMISSION 722.9

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 716.7

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 725.0

7. 1. 7.1) Model 205 with transmission 722.9, 724.2

      Model 253 with transmission 724.2

      Screw measuring sleeve (020g) onto measuring sleeve mount (020e) and tighten finger-tight all the way up to the electrical auxiliary oil pump (M42).

      The entire contact surface of the measuring sleeve (020g) must lie flat against the electric auxiliary oil pump (M42).

   2. 7.2) Model 205, 213, 238, 253 with transmission 716.7, 725.0

      Screw measuring sleeve (020g) onto measuring sleeve mount (020e) and tighten finger-tight all the way up to the transmission lower side.

      The entire contact surface of the measuring sleeve (020g) must lie flat against the underside of transmission.

8. Attach sensor holder (020c) with both screws centrally on sensor (020a).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on TRANSMISSION 722.9

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 716.7

   Courtesy of MERCEDES-BENZ USA

   Shown on transmission 725.0

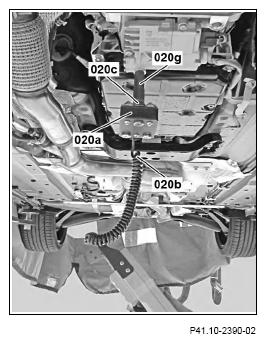

9. Fit sensor (020a) with the magnetic sensor mount (020c) by turning slightly at the measuring sleeve (020g).

   When each measurement is taken, the side of the sensor (020a) at which the spiral cable (020b) is connected must point in the direction of travel.

   Measurement errors occur otherwise.

   The device is ready to take a measurement and the measured values are shown in the display.

10. Press SAVE button.

    The values are saved.

    Measurement values for angle 1 display message: Display, e.g. 1.92°

    Courtesy of MERCEDES-BENZ USA

    A confirmation message appears briefly.

    Confirmation display message

    Courtesy of MERCEDES-BENZ USA

    The display then indicates that the device is ready for the next measurement (angle 2).

    Courtesy of MERCEDES-BENZ USA

11. Remove sensor (020a) from measuring sleeve (020g).
12. Remove sensor holder (020c) from sensor (020a).
13. Unscrew measuring sleeve (020g) from measuring sleeve mount (020e).

    Courtesy of MERCEDES-BENZ USA

    Shown on TRANSMISSION 722.9

    Courtesy of MERCEDES-BENZ USA

    Shown on TRANSMISSION 722.9

    Courtesy of MERCEDES-BENZ USA

    Shown on transmission 716.7

    Courtesy of MERCEDES-BENZ USA

    Shown on transmission 725.0

14. Release threaded pin (020f) and remove measuring sleeve mount (020e) from mounting hole.
