Remove Rear Roof Frame - Ar65.20-P-1008-01LWU

Model 205.0/1

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

Courtesy of MERCEDES-BENZ USA

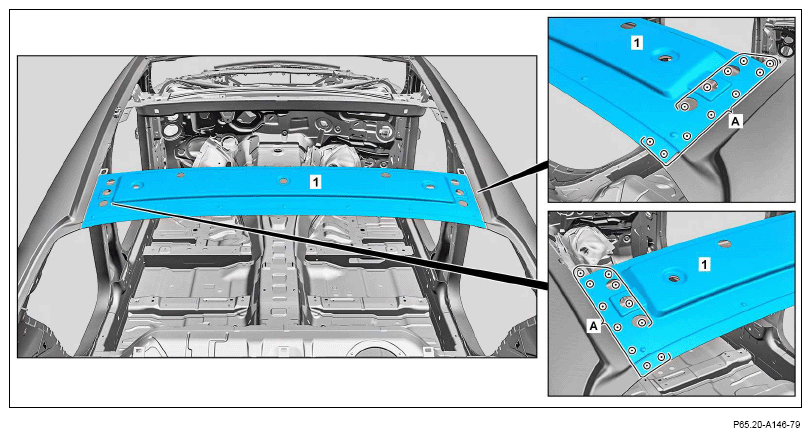

1. Expose the spot welds on the rear roof frame (1) (area A).
2. Expose spot welds on rear roof frame (1) and cut out (areas A).

   The outer spot welds on the rear roof frame (1) must be cut off to the equivalent of two panel thicknesses.

3. Remove rear roof frame (1).

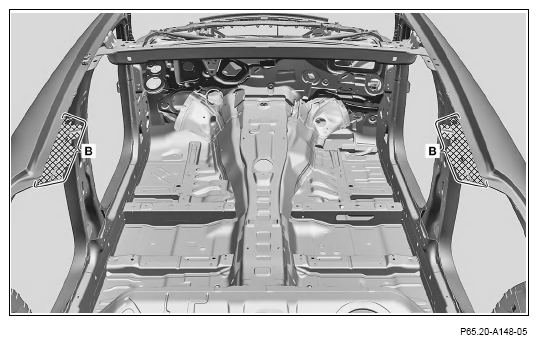

4. Grind mating surfaces down to bare metal in crosshatched areas (areas B).

   Sand down spot weld flanges to bare metal on both sides.

5. Remove grinding dust and milling chips.
6. Apply zinc dust paint to the insides of the spot weld flanges.

   Courtesy of MERCEDES-BENZ USA
