Prepare Rear Roof Frame For Installation - Ar65.20-P-1008-02LWU

Model 205.0/1

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

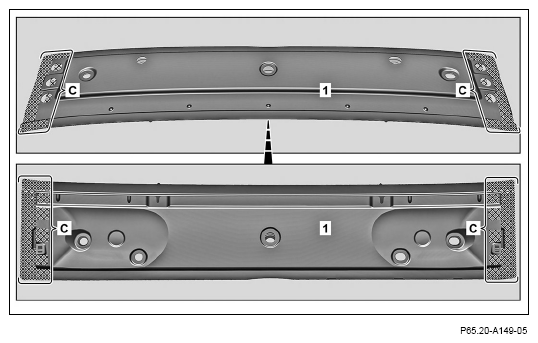

1. Grind down to bare metal the mating surfaces on the rear roof frame (1) in the cross-hatched areas (area C).

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.
3. Apply zinc dust paint to the insides of the spot weld flanges.
