Installing Rear Section Of Roof Paneling - Ar65.10-P-5760-03CLW

Model 205.3

with code 413 (Automatic panoramic sliding sunroof)

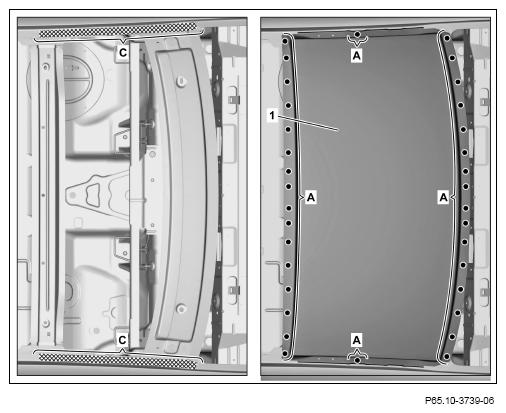

1. Apply 2-component adhesive to body in crosshatched areas (areas C).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

2. Install roof paneling rear section (1), fit with spacer blocks and fix in place.

   When removing, observe specified dimensions and positions of spacer blocks.

3. Roof paneling rear section (1) (areas A).

   Courtesy of MERCEDES-BENZ USA
