Install Rear Roof Frame - Ar65.20-P-1008-03LWU

Model 205.0/1

Refer to the superordinate service document for further information.

Observe safety information in the superordinate service document.

Courtesy of MERCEDES-BENZ USA

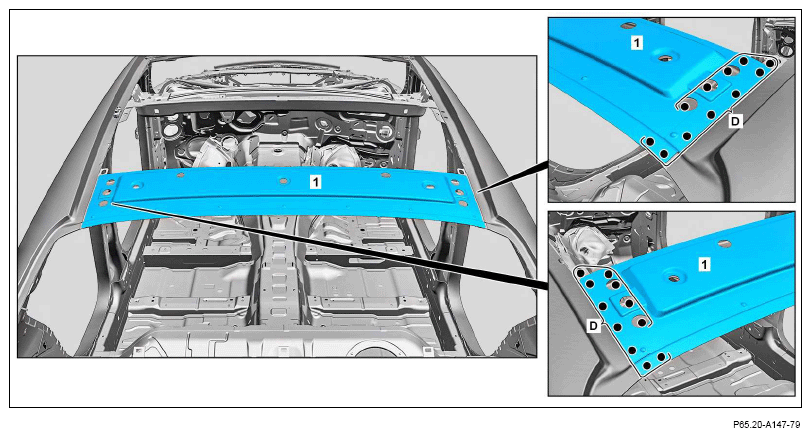

1. Install, fit and fix in place rear roof frame (1).
2. Rear roof frame (1) (areas D).
3. Clean weld joints no longer accessible after installing roof paneling and coat with zinc dust paint.
