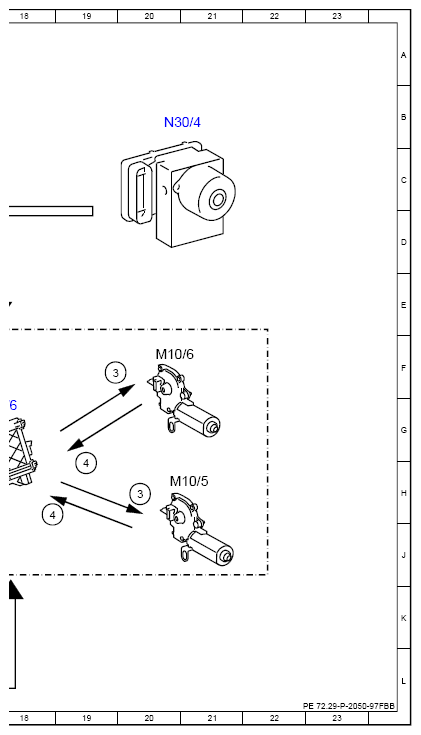

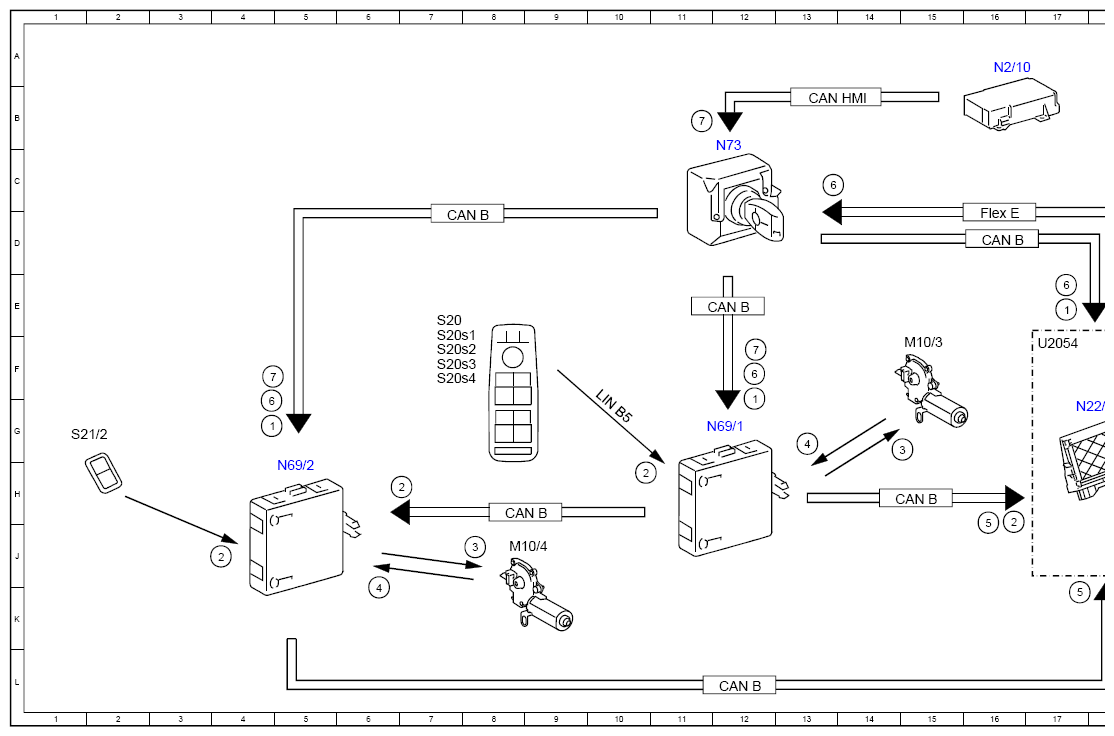

Electrical Function Diagram For Power Windows - PE72.29-P-2050-97FBB
Model 205.3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17E |
| 1 | Circuit 15, status | 4G |
| 1 | Circuit 15, status | 12G |
| 2 | Power window switch, status | 10H |
| 2 | Power window switch, status | 7H |
| 2 | Power window switch, status | 4J |
| 2 | Power window switch, status | 16J |
| 3 | Power window motor, actuation | 8J |
| 3 | Power window motor, actuation | 19F |
| 3 | Power window motor, actuation | 20H |
| 3 | Power window motor, actuation | 15G |
| 4 | Power window motor Hall sensor, signal | 6K |
| 4 | Power window motor Hall sensor, signal | 19H |
| 4 | Power window motor Hall sensor, signal | 18H |
| 4 | Power window motor Hall sensor, signal | 13G |
| 5 | Move to short stroke position, request | 17K |
| 5 | Move to short stroke position, request | 16J |
| 6 | Adjust PRE-SAFE®, request | 5G |
| 6 | Adjust PRE-SAFE®, request | 12F |
| 6 | Adjust PRE-SAFE®, request | 13C |
| 6 | Adjust PRE-SAFE®, request | 17E |
| 7 | Crash, signal | 11B |
| 7 | Crash, signal | 4F |
| 7 | Crash, signal | 12F |
| CAN B | Interior CAN | 7D |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 8H |
| CAN B | Interior CAN | 16D |
| CAN B | Interior CAN | 12L |
| CAN B | Interior CAN | 15H |
| CAN HMI | User interface CAN | 13B |
| Flex E | Chassis FlexRay | 16D |
| LIN B5 | Left front door LIN | 10G |
| M10/3 | Left front power window motor | 15F |
| M10/4 | Right front power window motor | 8J |
| M10/5 | Left rear power window motor | 20H |
| M10/6 | Right rear power window motor | 20F |
| N2/10 | Supplemental restraint system control unit | 16A |
| N22/6 | Rear control unit | 17G |
| N30/4 | Electronic Stability Program control unit | 20B |
| N69/1 | Left front door control unit | 12G |
| N69/2 | Right front door control unit | 5H |
| N73 | Electronic ignition switch control unit | 12C |
| S20 | Driver-side power window and outside mirror adjustment switch group | 7E |
| S20s1 | Left front power window switch | 7F |
| S20s2 | Right front power window switch | 7F |
| S20s3 | Left rear power window switch | 7F |
| S20s4 | Right rear power window switch | 7F |
| S21/2 | Passenger-side power window switch | 1G |
| U2054 | Valid for Model 205.4 | 17F |
