Remove/Install Front Door Outside Door Handle - AR72.10-P-2400LW

Model 205, 253 Model 213, 238

Model 293

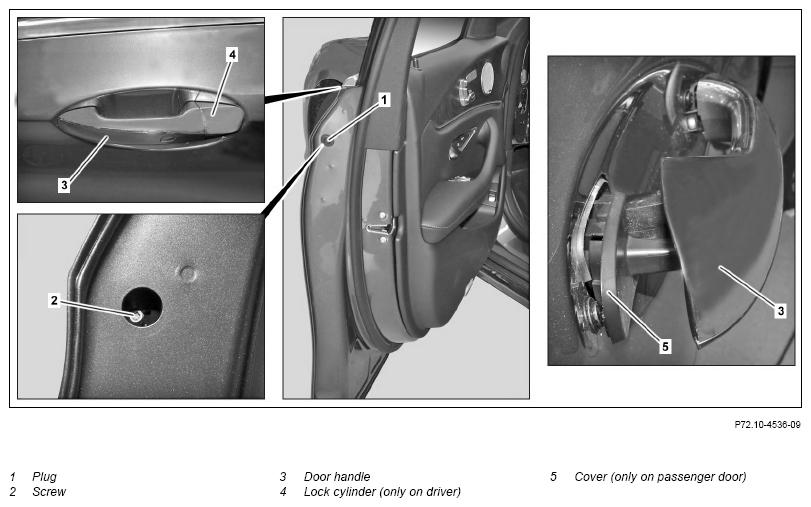

Fig 1: Front Door Outside Door Handle Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove stop plug (1)
2	Loosen screw/bolt (2)	The bolt (2) cannot be unscrewed completely.
3.1	Pull door handle (3) to end stop and remove lock cylinder (4)	Driver side When removing lock cylinder (4), the door handle (3) should must arrest in the pulled position. If this is not the case. ↓ Insert lock cylinder (4) with pulled door handle (3) and release door handle (3). Then repeat operation step.
3.2	Pull door handle (3) to end stop and remove cover (5)	Passenger side When removing cover (5), the door handle (3) should must arrest in the pulled position. If this is not the case. ↓ Insert cover (5) with pulled door handle (3) and release door handle (3). Then repeat operation step.

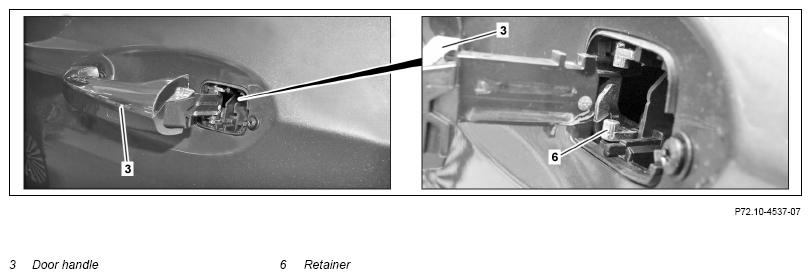

4	Remove door handle (3) from retainer (6) at rear and pull out at front
	Install
5	Install door handle (3) at rear in retainer (6) and insert at front	Ensure that door handle (3) arrests in retainer (6).
6.1	Insert lock cylinder (4)	Driver side The catch of the door handle (3) is released when inserting the lock cylinder (4).
6.2	Insert cover (5)	Passenger side The catch of the door handle (3) is released when inserting the cover (5).
7	Tighten screw (2)
8	Insert stop plug (1)
