Remove/Install Radiator Grille - AR88.40-P-4001LW
Model 205, 213
with code P23 (EXCLUSIVE exterior)
Shown on Model 205 with code 5U3 (AIRPANEL)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/Install | |||

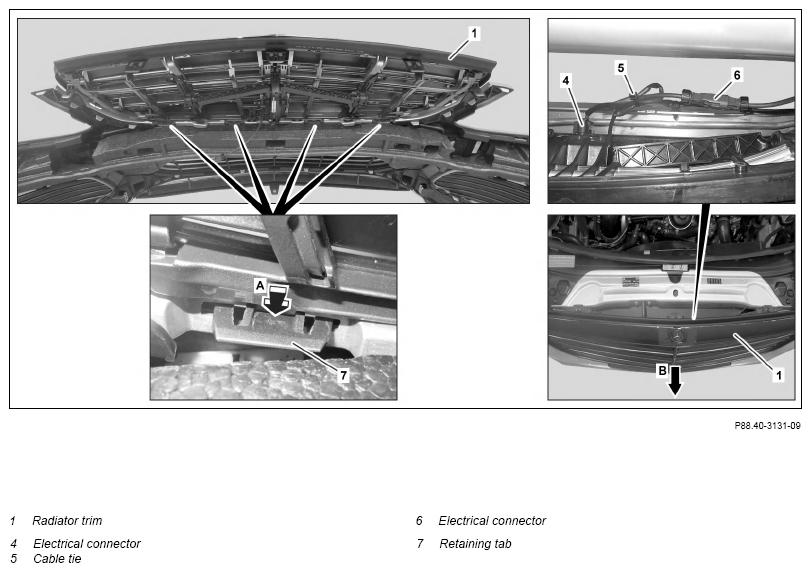

| 1 | Remove cable tie (5) | Model 205 with code P23 (EXCLUSIVE exterior) | |
| 2 | Disconnect electrical connector (4) | Model 205, 213 with code 5U3 (AIRPANEL) with code P23 (EXCLUSIVE exterior) | |
| 3 | Disconnect electrical connector (6) | Model 205, 213 with code 501 (360° Camera) with code P23 (EXCLUSIVE exterior) | |

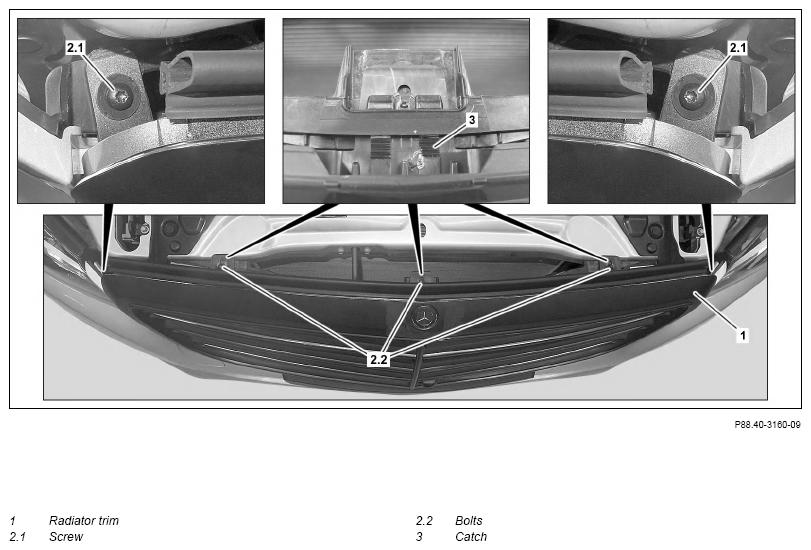

| 4 | Unscrew bolts (2.1, 2.2) | ||
| 5 | Unlock radiator grille (1) from arrests (3) and pull toward front | ||
| 6 | Unlock radiator grille (1) from retaining tabs (7) (arrow A) and remove toward front out of bumper (arrow B) | Mounting wedge |
Fig 2 |
| 7 | Install in the reverse order | ||
| Adjust | |||
| 8 | Adjust radiator grille (1) | AR88.20-P-2001LW | |
| Calibrate | |||
| 9 | Calibrate 360° Camera with diagnostic system | Model 205, 213 with code 501 (360° Camera) with code P23 (EXCLUSIVE exterior) | |
| AD00.00-P-2000-04B |
