Remove/Install Front Roof Frame - Ar65.20-P-1006LWR
Model 205.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A . | |
| Topical note | General information on body repair | AH60.00-N-0001-01A . | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A . | |
| Topical note | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX . | |
| General information on MB materials | AH98.00-P-9409-03A . | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||
| 3 | Set up straightening bench with straightening bench crossmembers and straightening tool set | ||
| 000 588 01 23 00 Body straightening system | WS60.00-P-0023K . | ||
| 4 | Place vehicle on straightening bench and fasten | ||

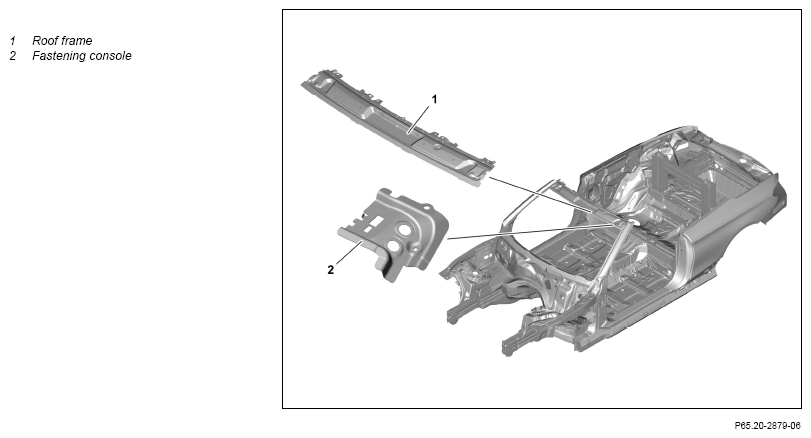

| 5 | Remove roof frame (1) and mounting console (2) | AR65.20-P-1006-02LWR . | |
| 000 588 00 84 00 Heat gun | Round wire brush Spot weld milling machine Wet/dry vacuum cleaner |
WS54.00-P-0049B . | |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A . | ||
| 6 | Prepare roof frame (1) and mounting console (2) | Round wire brush |
AR65.20-P-1006-04LWR . |
| Zinc dust paint suitable for spot welding | *BR00.45-Z-1001-07A . | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A . | |
| Topical note | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A . | |
| General information on riveting | AH60.00-P-0003-01N . | ||
| 7 | Install roof frame (1) and mounting console (2) | AR65.20-P-1006-05LWR . | |
| 000 588 02 84 00 Welder | WS60.00-P-0022K . | ||
| 000 588 01 84 00 Welder | WS60.00-P-0021K . | ||
| 000 588 01 23 00 Body straightening system | Round wire brush Manual temporary fastener Blind rivet gun (minimum pull-off force 19 kN) Wet/dry vacuum cleaner |
WS60.00-P-0023K . | |
| Blind rivet 6.5 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A . | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A . | ||
| 8 | Release vehicle from straightening bench, lift vehicle and remove straightening bench | ||
| 9 | Clean welds and sheet metal flanges | Round wire brush |
|
| 10 | Remove spark protection blankets | ||
| 11 | Clean repair area | Wet/dry vacuum cleaner |
|
| 12 | Prime repair area using primer filler | ||
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| 13 | Seal seam following repairs | AR97.10-P-4000LW . | |
| 14 | Paint repair areas and adjacent surfaces | ||
| Topical note | Notes on paintwork repairs | AH98.00-P-9408-02A . | |
| 15 | Add cavity preserving agent | AR97.20-P-1500LW | |
| 16 | Install all detachable body components in area to be repaired |
REPAIR MATERIALS (Model 205.4)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1012-13A | Blind rivet 6.5 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
