Install Center Roof Paneling - Ar65.10-P-1000-07CLW

Model 205.3

except code 413 (Automatic panoramic sliding sunroof)

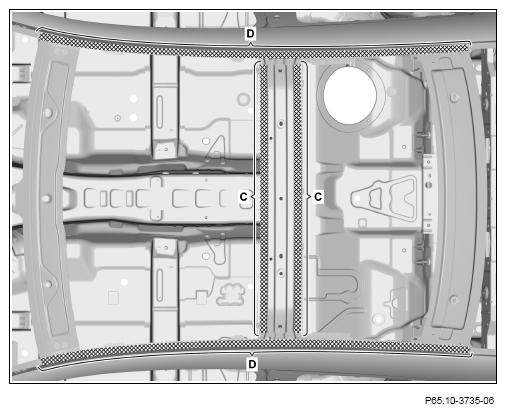

1. Apply lining glue to body (areas C).

   Observe processing specification for relining adhesive.

2. Apply 2-component adhesive to body in crosshatched areas (areas D).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

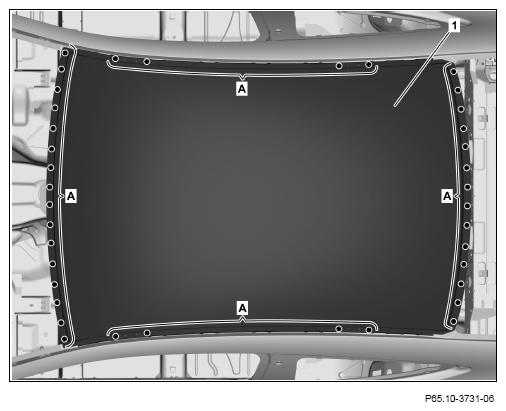

3. Install center roof paneling (1), fit with spacer blocks and fix in place.

   When removing, observe specified dimensions and positions of spacer blocks.

4. Center roof paneling (1) (areas A).

   Courtesy of MERCEDES-BENZ USA
