Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97FBA
Model 205 as of model year 2019 with code 877 (ambient lighting) Control unit N162
| Code: | Designation: | Position: |
|---|---|---|

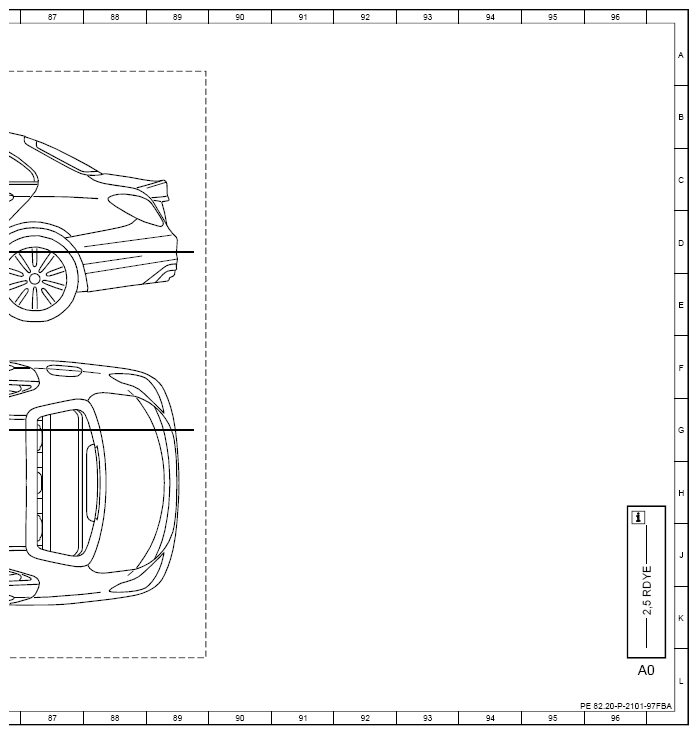

| A0 | Use of wiring diagrams | 96L |
| CAN B | Interior CAN | 10K |
| Code FA | CABRIOLET | 18E |
| Code FA | CABRIOLET | 14E |
| Code FA | CABRIOLET | 12E |
| Code FA | CABRIOLET | 20E |
| Code FC | COUPE | 18F |
| Code FC | COUPE | 14F |
| Code FC | COUPE | 12F |
| Code FC | COUPE | 20F |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 35E |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 35E |

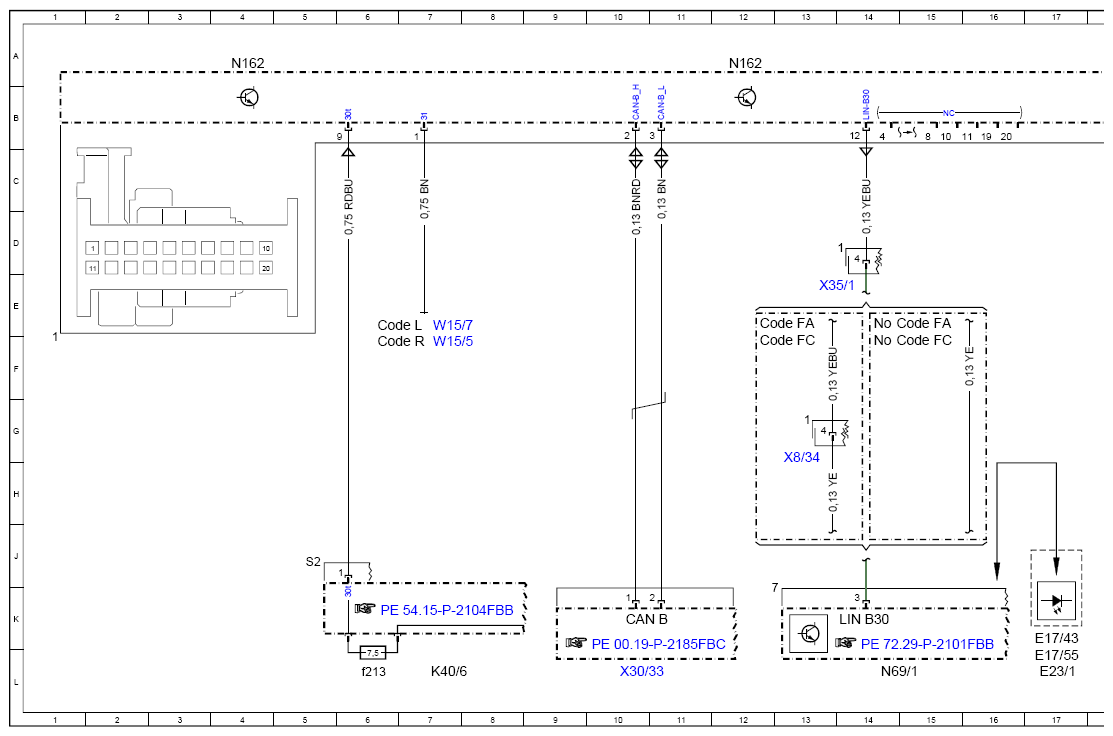

| E17/43 | Left front door ambiance illumination | 17K |

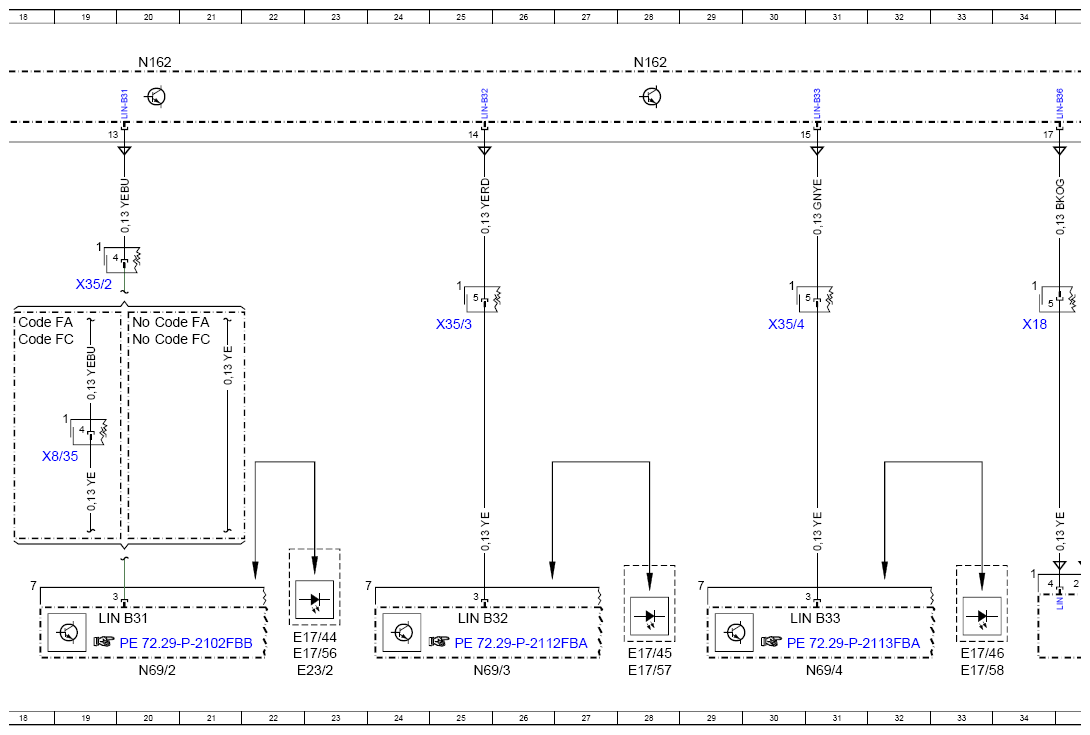

| E17/44 | Right front door ambiance illumination | 23K |
| E17/45 | Left rear door ambiance illumination | 28L |
| E17/46 | Right rear door ambiance illumination | 33L |
| E17/55 | Left front door handle ambiance illumination | 17L |
| E17/56 | Right front door handle ambiance illumination | 23L |
| E17/57 | Left rear door handle ambiance illumination | 28L |
| E17/58 | Right rear door handle ambiance illumination | 33L |
| E20/18 | Front center console cup holder ambiance illumination | 71L |
| E23/1 | Left front door stowage compartment illumination | 17L |
| E23/2 | Right front door stowage compartment illumination | 23L |

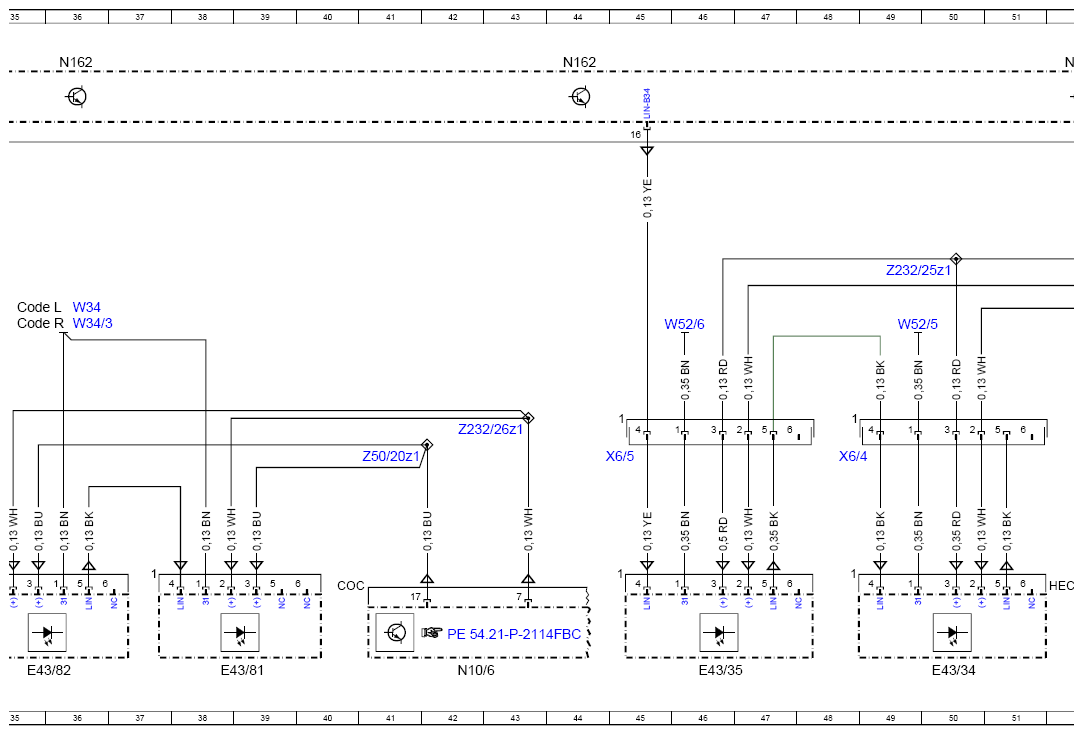

| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 50L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 46L |

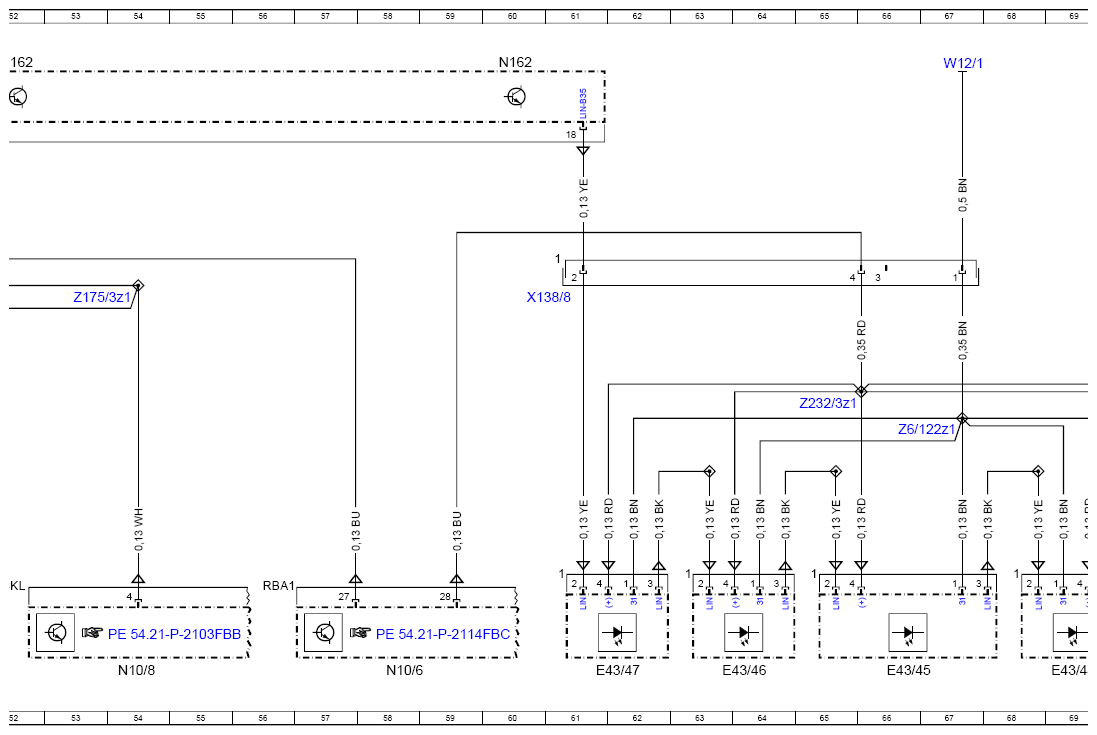

| E43/44 | Upper left center console ambient lighting | 69L |
| E43/45 | Upper right center console ambient lighting | 66L |
| E43/46 | Lower left center console ambient lighting | 64L |
| E43/47 | Lower right center console ambient lighting | 61L |
| E43/81 | Left front footwell ambiance illumination | 38L |
| E43/82 | Right front footwell ambiance illumination | 35L |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6f213 | Fuse 213 | 6L |
| LIN B30 | Left front door ambiance illumination LIN | 14K |
| LIN B31 | Right front door ambiance illumination LIN | 19K |
| LIN B32 | Left rear door ambiance illumination LIN | 25K |
| LIN B33 | Right rear door ambiance illumination LIN | 30K |
| N10/6 | Front SAM control unit | 42L |
| N10/6 | Front SAM control unit | 58L |
| N10/8 | Rear SAM control unit | 54L |
| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 60A |

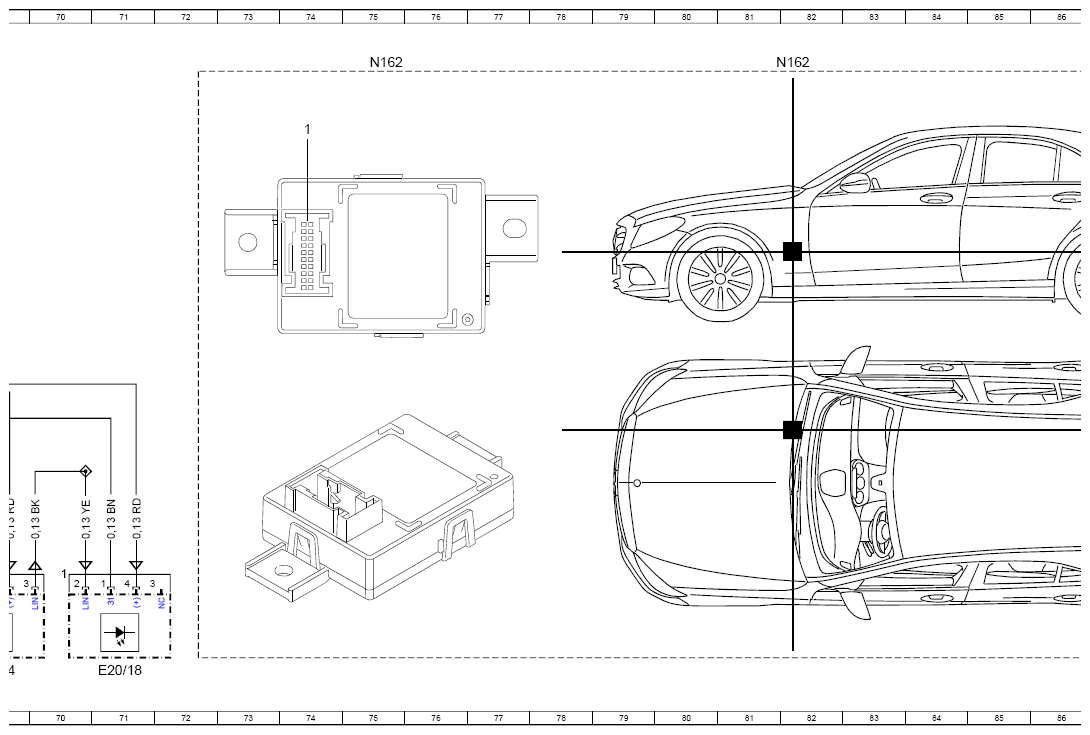

| N162 | Ambiance illumination control unit | 75A |
| N162 | Ambiance illumination control unit | 82A |
| N69/1 | Left front door control unit | 14L |
| N69/2 | Right front door control unit | 20L |
| N69/3 | Left rear door control unit | 25L |
| N69/4 | Right rear door control unit | 31L |
| W12/1 | Right center console ground point | 67A |
| W15/5 | Left front footwell ground point | 7F |
| W15/7 | Right front footwell ground point | 7E |
| W34 | Left footwell ground point | 36E |
| W34/3 | Right footwell ground point | 36E |
| W52/5 | Left center longitudinal member ground point | 49E |
| W52/6 | Right center longitudinal member ground point | 46E |
| X138/8 | Upper center console trim plate electrical connector | 61E |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 34E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
| X35/1 | Driver door electrical connector | 13E |
| X35/2 | Front passenger door electrical connector | 19E |
| X35/3 | Left rear door electrical connector | 25E |
| X35/4 | Right rear door electrical connector | 30E |
| X6/4 | Driver footwell lamp electrical connector | 48H |
| X6/5 | Front passenger footwell lamp electrical connector | 45H |
| X8/34 | Left front KEYLESS GO door handle electrical connector | 13H |
| X8/35 | Right front KEYLESS GO door handle electrical connector | 19H |
| Z175/3z1 | Footwell illumination connector sleeve, vehicle interior | 53E |
| Z232/25z1 | Ambiance illumination footwell connector sleeve (blue) | 49E |
| Z232/26z1 | Cockpit ambiance illumination connector sleeve (warm/white) | 43G |
| Z232/3z1 | Center console ambiance illumination connector sleeve (LED/k2) | 65G |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 41G |
| Z6/122z1 | Center console ground point connector sleeve | 67G |
