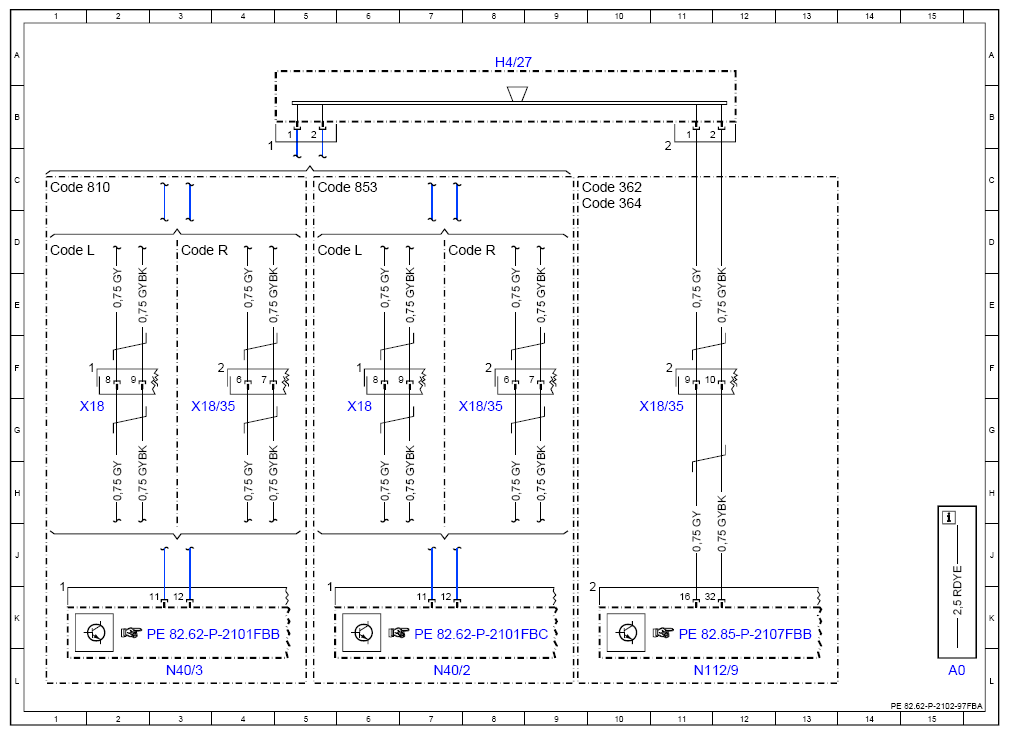

Wiring Diagram For Loudspeakers - PE82.62-P-2102-97FBA
Model 205 as of model year 2019 with code 362 (HERMES communications module LTE) with code 364 (HERMES - UMTS communications module for Russia) with code 810 (Premium sound system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code 362 | HERMES LTE | 9C |
| Code 364 | HERMES UMTS communications module for Russia | 9C |
| Code 810 | Sound system | 1C |
| Code 853 | Midline sound system | 5C |
| Code L | LEFT-HAND DRIVE | 1D |
| Code L | LEFT-HAND DRIVE | 5D |
| Code R | RIGHT-HAND DRIVE | 3D |
| Code R | RIGHT-HAND DRIVE | 7D |
| H4/27 | Center instrument panel speaker | 8A |
| N112/9 | HERMES control unit | 11L |
| N40/2 | Sound system midline amplifier control unit | 7L |
| N40/3 | Sound system amplifier control unit | 3L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 2G |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 6G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 4G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 8G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 11G |
