Remove/Install Satellite Radio Antenna - AR82.60-P-7547LWR

Model 205.4, 238.4

with code 536 (Sirius satellite radio complete system)

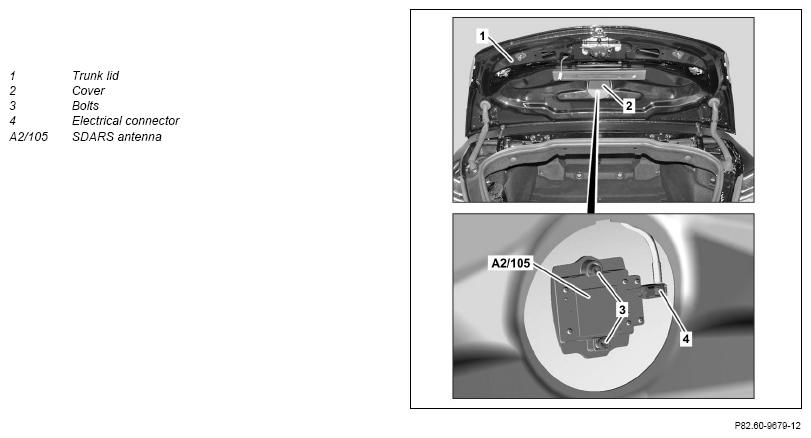

Fig 1: Satellite Radio Antenna Components Location - Model 205.4 With Code 536

Courtesy of MERCEDES-BENZ USA

Shown on model 205.4

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Open trunk lid (1) and remove cover (2)
2	Remove bolts (3)
3	Remove SDARS antenna (A2/105) and disconnect electrical connector (4)
4	Install in the reverse order
