Remove/Install Outer Mirror Ambient Lamp - AR82.10-P-0001LW

Model 205, 238, 253, 293 with code P49 (Mirror package)

Model 213, 217, 222

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove glass adjustment drive.		AR88.70-P-9060LF
2	Remove 360° camera in outside mirror.	Model 205.0/1/2, 253.9 up to model year 2016 with code 501 (360° camera) with code P49 (Mirror package)	AR54.30-P-3002LW
		Model 205.0/1/2, 253.9 as of model year 2016 with code 501 (360° camera) with code P49 (Mirror package) Model 205.3/4, 238, 253.3 with code 501 (360° camera) with code P49 (Mirror package) Model 213 with code 501 (360° camera) Model 293 with code 501 (360° camera) with code P49 (Mirror package)	AR54.65-P-3002LW
		Model 217, 222 with code 501 (360° camera)	AR54.30-P-3002LF

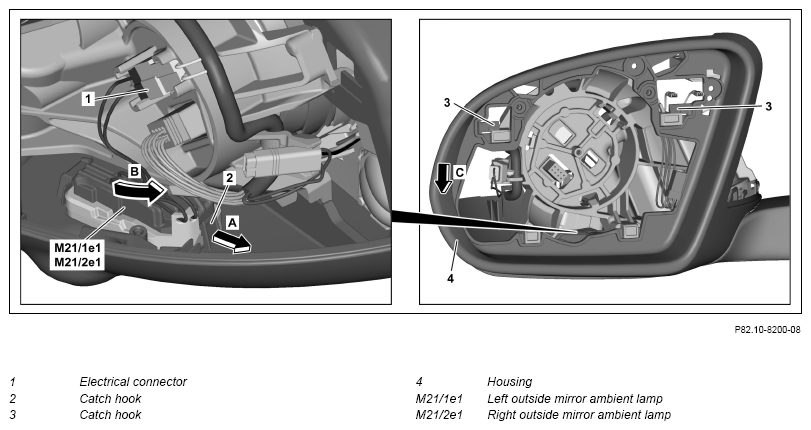

3	Disconnect electrical connector (1).
4	Release left outside mirror surround lamp (M21/1e1) or right outside mirror surround lamp (M21/2e1) from catch hook (2) (arrow A)
5	Release catch hooks (3) from housing (4).
6	Extend left outside mirror surround lamp (M21/1e1) or right outside mirror surround lamp (M21/2e1) (arrow B), pushing housing (4) slightly downward while doing so (arrow C).	Carefully push housing (4) downwards, and not too far. Otherwise, the housing (4) may be damaged.
7	Install in the reverse order.
