Remove/Install NFC Antenna - AR82.62-P-0004LWM

Model 205

as of model year 2019

with code 897 (Front wireless telephone charging)

Model 205

as of model year 2019

with code 899 (Multifunction telephony)

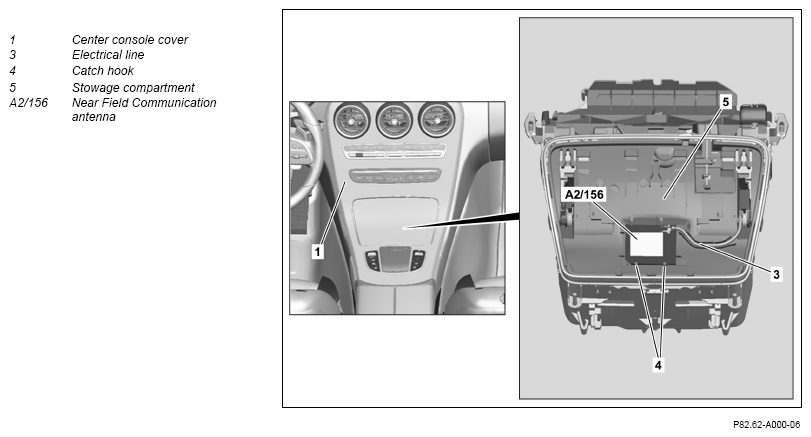

Fig 1: NFC Antenna Components Location - Model 205 As Of Model Year 2019 With Codes 897 And 899

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove stowage compartment (5) from cover of center console (1).		AR68.20-P-0901LWM
2	Unclip cap of stowage compartment (5) towards rear, in the opposite direction of travel, from stowage compartment (5) and remove.	Do not use sharp-edged tools. Otherwise, the cap may be damaged. Installation:  Check for correct positioning of the cap before clipping it into place. Otherwise, the fasteners and the cap may be damaged.
3	Disconnect electrical connector from mobile phone cradle control unit and expose electric line (3).
4	Release catch hooks (4) and guide near-field communication antenna (A2/156) with electric line (3) outwards and remove.
5	Install in the reverse order.
