Remove/Install Rear Door Frame Seal - AR72.12-P-1015LW

Model 205.0/1/2

Model 213

Model 253

Model 293

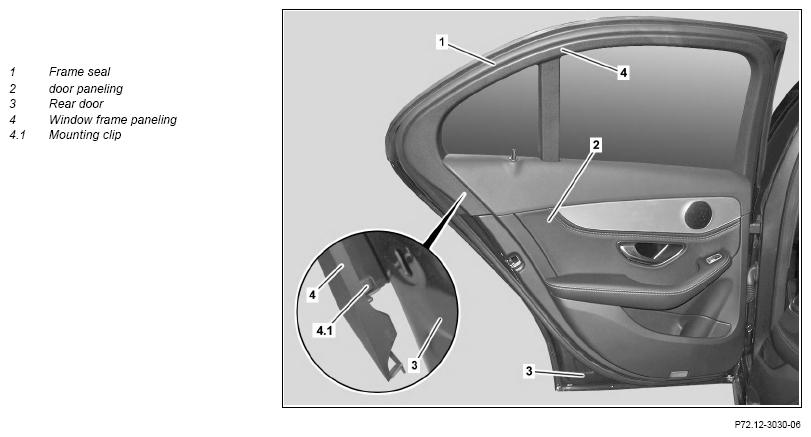

Fig 1: Rear Door Frame Seal Components Location - Model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove the door paneling (2) from the rear door (3).	Model 205.0/1/2	AR72.12-P-1010LW
2	Remove window frame lining (4).	The window frame paneling (4) is fastened positively to the window frame and additionally clipped into the window frame with a retaining clip (4.1).
3	Detach sealing frame (1) from the rear door (3).
4	Remove adhesive residues at rear door (3) using a surface conditioning disk and clean bonding surface.
	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
		The bonding surface must be free of dust and grease. Use surface conditioning disk with a diameter of 100 mm.
		Cleaner	*BR00.45-Z-1025-04A
	Install
5	Glue sealing frame (1) to rear door (3)	Model 205.0 except code 700 (Technology Local Content China)   Model 205.2	AR72.12-P-1015-01LW
		Model 205.0 with code 700 (Technology Local Content China)   Model 205.1, 213, 253, 293	AR72.12-P-1015-01LWA
		Model 205.0 except code 700 (Technology Local Content China)   Model 205.2 Template	Fig 3
		Roller	Fig 2
6	Attach window frame lining (4) to the window frame.
7	Install door paneling (2) on rear door (3)	Model 205.0/1/2	AR72.12-P-1010LW

Fig 2: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Template (205 589 02 23 00)

Courtesy of MERCEDES-BENZ USA
