Remove/Install Rear Door Armrest - AR72.12-P-1020LW

Model 205.0/1/2, 253

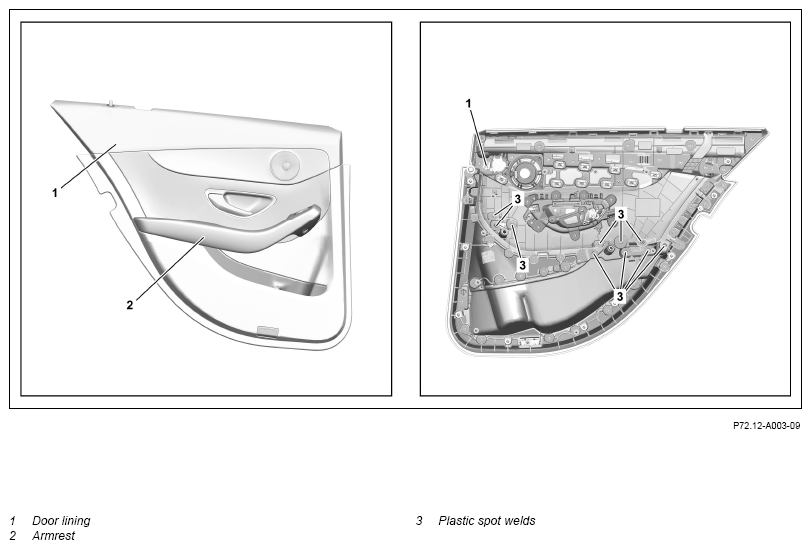

Fig 1: Rear Door Armrest Components Location - Model 205.0; Shown On Left Door Lining

Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0 on left door lining (1)

	Remove/install
1	Remove door lining (1).		AR72.12-P-1010LW
2.1	Drill plastic spot welds (3) and remove armrest (2).	If the armrest (2) is fastened with plastic spot welds (3).	AR72.00-P-0001-01LW
		Replace drilled plastic spot welds (3) with bolts. Fasten armrest (2) with the screws from the repair kit.
2.2	Remove screws and remove armrest (2).	If the armrest (2) is fastened with screws.
3	Install in the reverse order
