Remove/Install Side Airbag Unit In The Rear - AR91.60-P-0694LW
Model 205.0/2
with code 298 (Rear Side Air Bag With Belt Force Limiter)
Model 213
with code 293 (Side Air Bag In Rear Left And Right)
Model 253
with code 293 (Side Air Bag In Rear Left And Right)
Model 293
with code 293 (Side Air Bag In Rear Left And Right)
MODIFICATION NOTES
| 30.04.2019 | Special tool added | Step 4 |

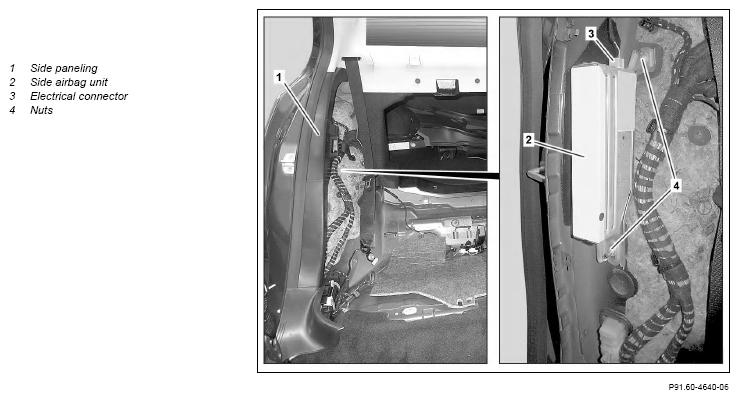

Shown on Model 205.0
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/Install | |||
| 1 | Remove side trim (1). | Model 253 (except 253.992/993) with code 293 (Side Air Bag In Rear Left And Right) Model 293 with code 293 (Side Air Bag In Rear Left And Right) |
AR68.30-P-4780EQ |
| Model 205.0/2 with code 298 (Rear Side Air Bag With Belt Force Limiter) | AR68.30-P-4780LW | ||
| Model 213.0/1 with code 293 (Side Air Bag In Rear Left And Right) | AR68.30-P-4780LWE | ||
| Model 213.2 with code 293 (Side Air Bag In Rear Left And Right) | AR68.30-P-4780LWT | ||
| 2 | Remove side load compartment trim. | Model 253, 293 with code 293 (Side Air Bag In Rear Left And Right) Model 253 (except 253.992/993), 293 with code 293 (Side Air Bag In Rear Left And Right) |
AR68.30-P-1180LWG |
| Model 253.992/993 with code 293 (Side Air Bag In Rear Left And Right) | AR68.30-P-1180RFW | ||
| 3 | Detach ground line of on-board electrical system battery. | Model 293 with code 293 (Side Air Bag In Rear Left And Right) | AR54.10-P-0003EQ |
| Model 205.0/2 with code 298 (Rear Side Air Bag With Belt Force Limiter) Model 213, 253 with code 293 (Side Air Bag In Rear Left And Right) |
AR54.10-P-0003LW | ||
| 4 | Release and disconnect electrical connector (3) at side airbag unit (2). | Make sure that electrical connector (3) engages properly in side bag unit (2). Removal lever |
Fig 2 |
| 5 | Unscrew nuts (4). | *BA91.60-P-1005-01O | |
| 6 | Remove side airbag unit (2). | ||
| 7 | Install in the reverse order. | ||
| 8 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| Model 293 with code 293 (Side Air Bag In Rear Left And Right) | AD00.00-P-2000-06FR | ||
| Model 205.0/2 with code 298 (Rear Side Air Bag With Belt Force Limiter) Model 213 with code 293 (Side Air Bag In Rear Left And Right) Model 253 with code 293 (Side Air Bag In Rear Left And Right) |
AD00.00-P-2000-04B |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 213 | |
|---|---|---|---|---|
| BA91.60-P-1005-01O | Nut, rear side bag unit to body | Nm | 6 | 6 |
AIRBAG
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.60-P-1005-01O | Nut, rear side bag unit to body | Nm | 6 | 6 |
