Remove/Install Side Airbag Sensor - AR91.60-P-0710LWR
Model 205.4
Model 238

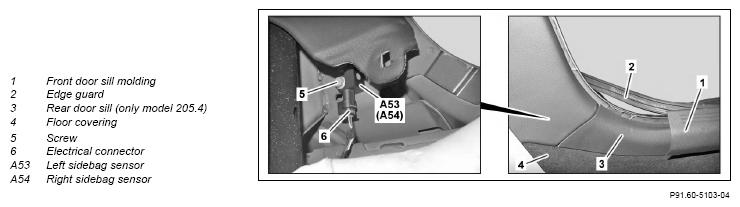

Shown on left side of vehicle on Model 205.4
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/Install | |||
| 1 | Disconnect battery ground line | Model 238 | AR54.10-P-0003LW0 |
| Model 205.4 | AR54.10-P-0003LW | ||
| 2 | Remove seat cushion in rear | Model 205.4 except code 248 (Rear Seat With Integrated Child Seat) except code P10 (Taxi Package Germany) Model 238 |
AR91.12-P-1020LW |
| 3 | Remove front door sill (1) | AR68.30-P-4100CLW | |
| 4 | Detach edge guard (2) in area of rear door sill (3) | Model 205.4 | |
| 5.1 | Remove rear door sill (3) | Model 205.4 | |
| 5.2 | Remove lower side trim in rear | Model 238 | AR68.30-P-4784LW0 |
| 6 | Push floor covering (4) in area of B-pillar to one side | ||
| 7 | Remove bolt (5) | *BA91.60-P-1008-01O | |
| 8 | Remove left side bag sensor (A53) or right side bag sensor (A54) and disconnect the electrical connector (6) | ||
| 9 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 205.4 | Model 238 | |
|---|---|---|---|---|
| BA91.60-P-1008-01O | Bolt, side bag sensor to B-pillar | Nm | 8 | 8 |
