Remove/Install Rear Seat Center Backrest Lock - AR91.12-P-1729LW

Model 205.0/1, 213.0

with code 287 (Through-Loading Feature)

Model 205.2/3

Model 213.2

Model 238.3

Model 253, 293

Shown on Model 205.0, valid for Model 205.0/1/2, 213.0/2, 253, 293

Shown on Model 205.3, valid for Model 205.3, 238.3

Courtesy of MERCEDES-BENZ USA

Shown on Model 205.0

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/Install
1	Release center backrest and fold forwards.
2	Unlock seat backrest lock (14) using a suitable screwdriver.

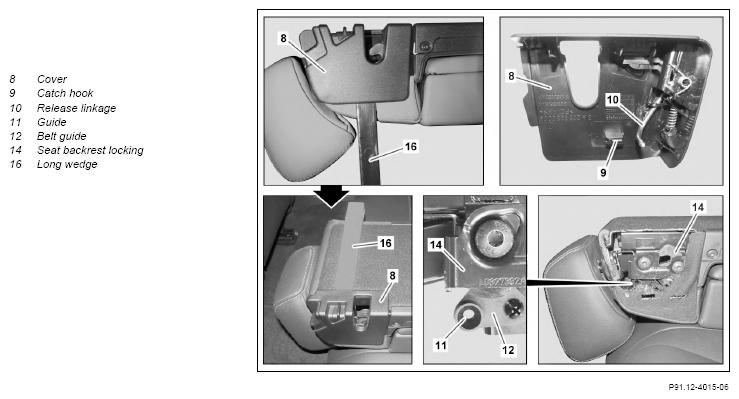

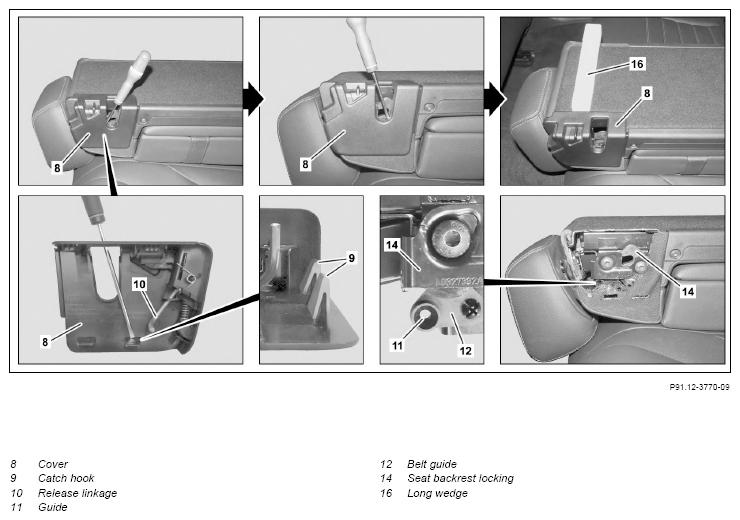

3.1	Guide a long wedge (16), as shown, below the opening of the cover (8) and release catch hook (9).	Model 205.0/1, 213.0 with code 287 (Through-Loading Feature)   Model 205.2, 213.2, 253, 293 Long wedge	Fig 3
3.2	Release catch hooks (9), as shown, through the opening of the cover (8) using a suitable screwdriver.	Model 205.3, 238.3
4	Pull cover (8) outwards slightly at bottom, use long wedge (16) to lift out of catch at top and remove.	: Insert the release linkage (10) correctly in the guide (11) of the deflection (12). Otherwise, the backrest lock (14) can no longer be actuated. Long wedge	Fig 3

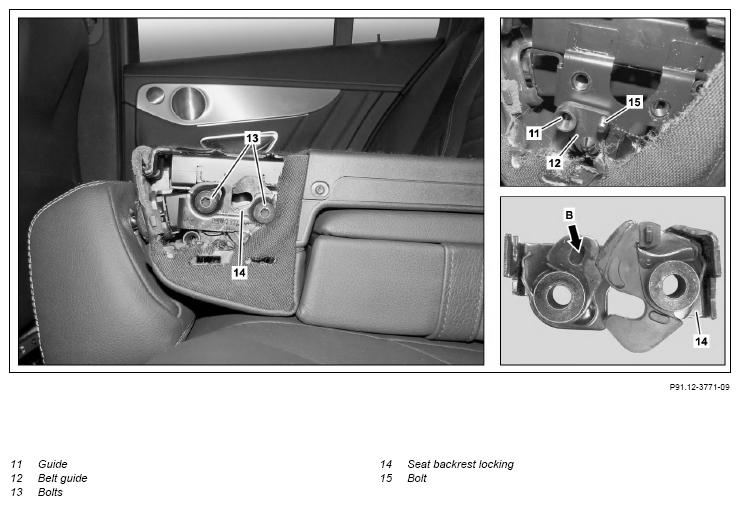

5	Remove bolts (13).	Bolt, backrest lock to backrest frame	*BA91.12-P-1008-03M
6	Remove seat backrest lock (14).	: Ensure that the pin (15) is located in the notch (arrow B) of the backrest lock (14).
7	Install in the reverse order

Number	Designation		Model 205.0	Model 205.1
BA91.12-P-1008-03M	Bolt, backrest lock to backrest frame	Nm	20	20

Number	Designation		Model 205.2	Model 205.3
BA91.12-P-1008-03M	Bolt, backrest lock to backrest frame	Nm	20	20

Number	Designation		Model 213.0	Model 213.2
BA91.12-P-1008-03M	Bolt, backrest lock to backrest frame	Nm	20	20

Number	Designation		Model 238.3	Model 253
BA91.12-P-1008-03M	Bolt, backrest lock to backrest frame	Nm	20	20

Number	Designation		Model 293
BA91.12-P-1008-03M	Bolt, backrest lock to backrest frame	Nm	20
