Remove/Install Inner Trim On Seat Frame - AR91.10-P-1202LW
Model 205.0/1/2
Model 213
Model 253, 293
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 2. |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||
| 1 | Remove front seat. | AR91.10-P-1000LW | |

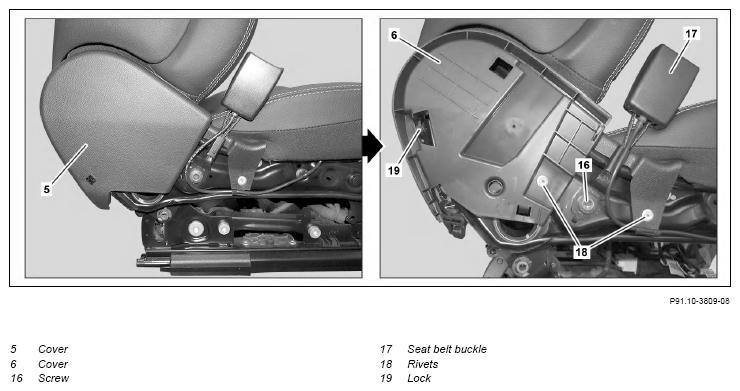

| 2 | Unclip trim (5). | WIS Service Media Operation steps 2 to 6 are shown here: multimedia:A supplement to the article is available. Long wedge |
Fig 2 |
| 3 | Remove bolt (16) and place seat belt buckle (17) to one side. | Ensure correct installation position of seat belt buckle (17). Bolt, front seat belt buckle |
*BA91.40-P-1004-01U |
| 4 | Unhook electrical wiring harness of seat belt buckle (17) from trim (6). | ||
| 5 | Drill out rivets (18). | ||
| 6 | Release lock (19) and remove trim (6). | ||
| 7 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.2 | Model 213 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
