Remove/Install Armrest At Rear Seat Backrest - AR91.12-P-1745LW
Model 205.0/1, 213.0
with code 287 (Through-Loading Feature)
Model 205.2
Model 213.2
Model 253, 293

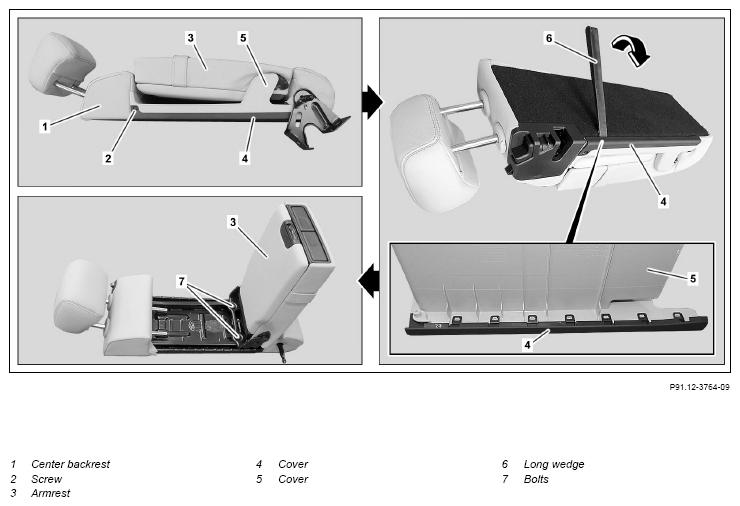

Fig 1: Armrest At Rear Seat Backrest Components Location - Model 205.0 With Code 287; Shown On Removed Center Backrest (1) With Code 287
Shown on removed center backrest (1) with code 287 (Folding Rear Seat Backrests)
| Remove/Install | |||
| 1 | Release and fold over center seat backrest (1). | Removal of the center backrest (1) is not necessary. |
|
| 2 | Remove left and right screws (2). | ||
| 3 | Unclip left and right cover (4), as shown, with long wedge (6) and remove. | Carefully unclip covers (4). Otherwise the covers (4) may be damaged. Ensure that covers (4) are engaged correctly. Long wedge |
Fig 2 |
| 4 | Fold back center backrest (1). | ||
| 5 | Fold down armrest (3). | ||
| 6 | Remove cover (5). | ||
| 7 | Remove screws (7) and remove armrest (3). | Bolt, armrest to backrest frame |
*BA91.12-P-1006-03M |
| 8 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.12-P-1006-03M | Bolt, armrest to backrest frame | Nm | 8 | 8 |
REAR SEATS
| Number | Designation | Model 205.2 | Model 213.0 | |
|---|---|---|---|---|
| BA91.12-P-1006-03M | Bolt, armrest to backrest frame | Nm | 8 | 8 |
REAR SEATS
| Number | Designation | Model 213.2 | Model 253 | |
|---|---|---|---|---|
| BA91.12-P-1006-03M | Bolt, armrest to backrest frame | Nm | 8 | 8 |
REAR SEATS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.12-P-1006-03M | Bolt, armrest to backrest frame | Nm | 8 |
