Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683LW

Model 205.0/1, 213.0

except code 287 (Through-Loading Feature)

Model 213.1

Shown on Model 205.0

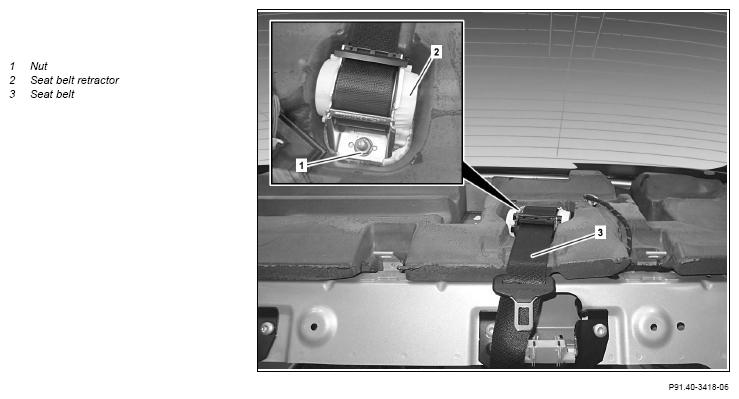

Fig 1: Rear Center Seat Belt Components Location - Model 205.0 Except Code 287

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Remove/Install
1	Remove rear shelf	Model 213.1	AR68.30-P-4581LWV
		Model 205.0/1, 213.0 except code 287 (Through-Loading Feature)	AR68.30-P-4581LW
2	Unscrew nut (1)	Nut, center seat belt to rear shelf	*BA91.40-P-1010-01U
3	Remove seat belt retractor (2) with seat belt (3)	Ensure correct installation position of belt retractor (2).
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.0	Model 205.1
BA91.40-P-1010-01U	Nut, center seat belt to rear shelf	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 213
BA91.40-P-1010-01U	Nut, center seat belt to rear shelf	Nm	35
