Remove/Install Trunk Partition - AR68.50-P-3003LWR
Model 205.4, 238.4
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||
| 1 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 2 | Cover rear and left right fender | ||
| 3 | Fold trunk partition (1) up | ||
| 4 | Unhook cords on left and right partition (2) and remove partitions (2) | ||
| 5 | Insert fastening block (3) into left and right guide rail (4) (arrow) | It might be necessary to slightly lift the blind shaft (5) by hand so that the fastening block (3) can be inserted into the intended hole pattern. |

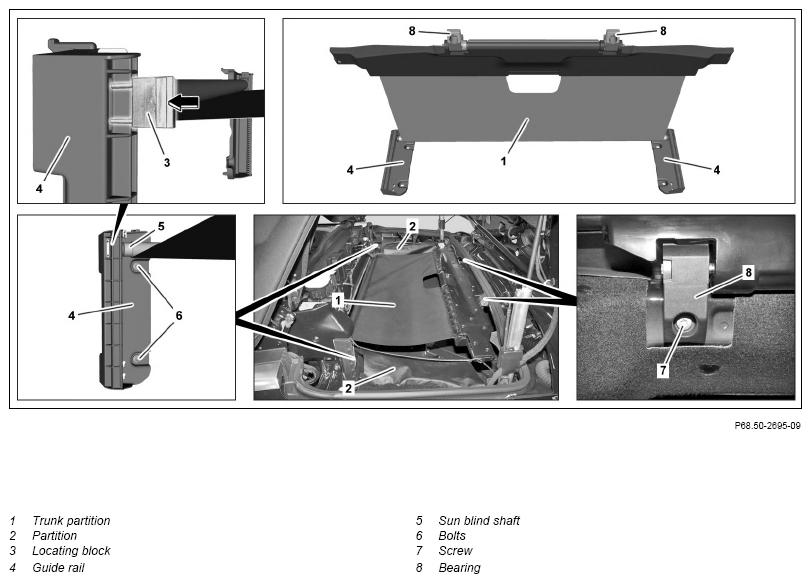

Fig 2 |
| 6 | Unscrew bolts (6) from left and right guide rail (4) | ||
| 7 | Unscrew bolt (7) from left and right bearing (8) | ||
| 8 | Unhook left and right bearing (8) and remove trunk partition (1) together with left and right guide rail (4) from vehicle | ||
| 9 | Install in the reverse order |
