Remove/Install Right Rear Seat Backrest Cover - AR91.18-P-1878LW
Model 205.0/1
with code 287 (Through-Loading Feature)
Model 205.2
Model 205.3
Model 253, 293

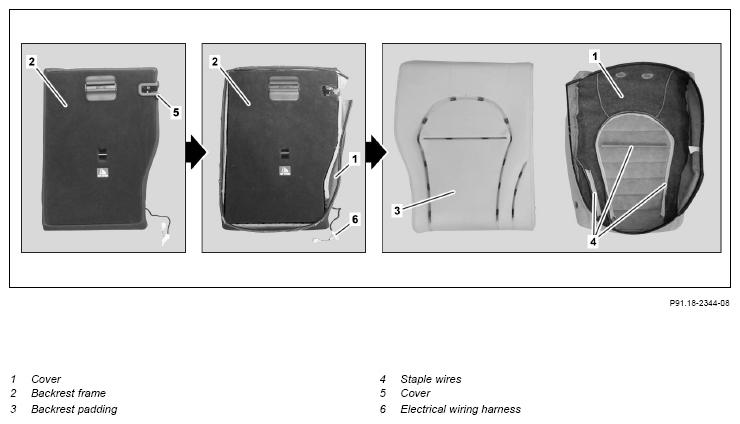

Fig 1: Right Rear Seat Backrest Cover Components Location - Model 205.0 With Code 287 And Model 205.3; Shown On Model 205.2
Shown on Model 205.2
| Remove/Install | |||
| 1 | Remove pivot bearing of right seat backrest with right rear passenger compartment seat backrest inclination switch. | Right rear backrest inclination switch can remain on the hinge. |
AR91.29-P-1772LW |
| 2 | Remove head restraint guides. | AR91.16-P-1775LW | |
| 3 | Unclip cover (5) and remove. | Model 205.2 Model 253, 293 |
|
| 4 | Unhook cover (1) from seat backrest frame (2) all the way around. | Hook in the cover (1) starting at the corners. Press on cover (1) once again all around the outside after hooking it in completely. Dismantling tool |
Fig 2 |
| 5 | Guide electrical wiring harness (6) through cover (1). | Model 205.2 Model 253, 293 |
|
| 6 | Remove seat backrest frame (2). | Place seat backrest frame (2 onto seat backrest padding (3) and align. |
|
| 7 | Pull cover (1) over seat backrest padding (3). | Align seams of cover (1) and position in notches of seat backrest padding (3). |
|
| 8 | Unclip staple wires (4) from seat backrest padding (3) starting from the outside working towards the inside. | Dismantling tool |
Fig 3 |
| 9 | Remove cover (1) from seat backrest padding (3). | Align seams of cover (1) and position in notches of seat backrest padding (3). The cover (1) must be aligned centrally on the seat backrest padding (3). |
|
| 10 | Pull staple wires (4) out of hose straps of cover (1). | When replacing the cover (1). Smooth out hose straps of cover (1). |
|
| 11 | Install in the reverse order |
