Remove/Install Rear Seat Backrest Head Restraint Guides - AR91.16-P-1776LWR
Model 205.4
Model 238.4
Shown on left side of vehicle

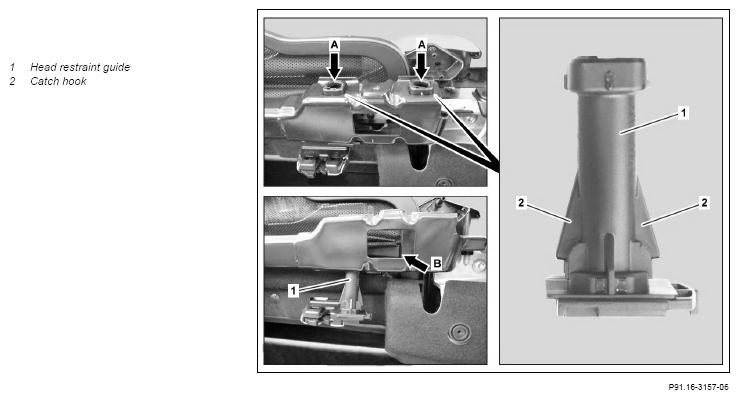

Fig 1: Rear Seat Backrest Head Restraint Guides Components Location - Model 205.4; Shown On Left Side Of Vehicle
| Remove | |||
| 1 | Remove left or right shoulder cushion | AR91.12-P-1712LWR | |
| 2 | Press both catch hooks (2) together and at the same time press from above on the corresponding head restraint guide (1) (arrows A) | The catch hooks (2) are accessible via the opening (arrow B). |
|
| 3 | Remove head restraint guide (1) downwards | ||
| Install | |||
| 4 | Insert head restraint guide (1) from below into crossmember and engage | Ensure bulb is correctly installed. For each head restraint, two different head restraint guides (1) are installed. The head restraint guide (1) with a lock must always be installed on the right. |
|
| 5 | Install left or right shoulder cushion | AR91.12-P-1712LWR |
