Remove/Install Left Rear Seat Backrest Cover - AR91.18-P-1874LW
Model 205.0/1
with code 287 (Through-Loading Feature)
Model 205.2
Model 205.3
Model 253, 293

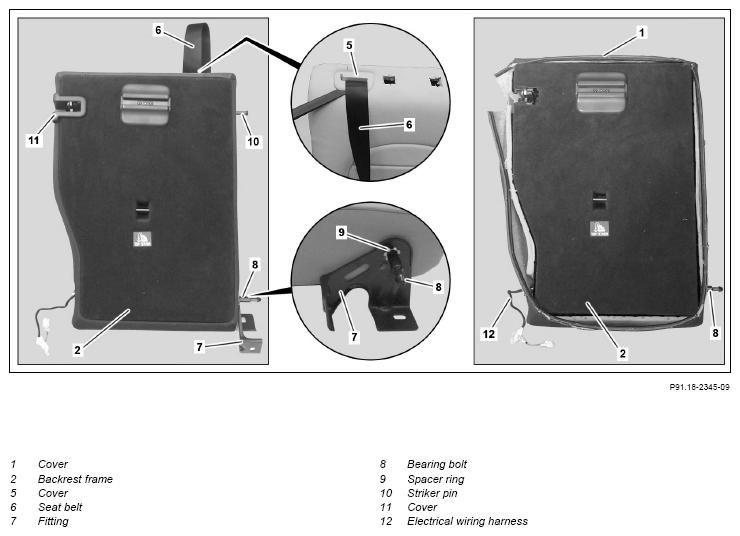

Fig 1: Left Rear Seat Backrest Cover Components Location - Model 205.0 With Code 287 And Model 205.3; Shown On Model 205.2
Shown on Model 205.2
| Remove/Install | |||
| 1 | Remove pivot bearing of left seat backrest with left rear passenger compartment seat backrest inclination switch. | AR91.29-P-1772LW | |
Left rear backrest inclination switch can remain on the hinge. |
|||
| 2 | Remove head restraint guides. | AR91.16-P-1775LW | |
| 3 | Unclip cover (11) and remove. | Model 205.2 Model 253, 293 |
|
| 4 | Unclip cover (5). | Model 205.0/1 with code 287 (Through-Loading Feature) Model 205.2 Model 253, 293 Do not remove cover (5) from seat belt (6) to prevent seat belt (6) from retracting. Long wedge |
Fig 2 |
| 5 | Remove fitting (7) from bearing pin (8). | Do not skew fitting (7). Otherwise the spacer ring (9) may be damaged. Replace spacer ring (9). |
|
| 6 | Unhook cover (1) from seat backrest frame (2) all the way around. | Hook in the cover (1) starting at the corners. Press on cover (1) once again all around the outside after hooking it in completely. Dismantling tool |
Fig 3 |
| 7 | Guide electrical wiring harness (12) through cover (1). | Model 205.2 Model 253, 293 |
|
| 8 | Remove seat backrest frame (2). | Place seat backrest frame (2) onto seat backrest padding (3) and align. |
|
| 9 | Slip cover (1) over seat backrest padding (3) and guide over bearing pin (8) and striker pin (10) while doing so. | Carefully guide cover (1) first over bearing pin (8) and striker pin (10). Otherwise the cover (1) may be damaged. Align seams of cover (1) and position in notches of seat backrest padding (3). |
|
| 10 | Guide cover (5) with seat belt (6) through cover (1). | Model 205.0/1 with code 287 (Through-Loading Feature) Model 205.2 Model 253, 293 |
|
| 11 | Unclip staple wires (4) from seat backrest padding (3) starting from the outside working towards the inside. | Dismantling tool |

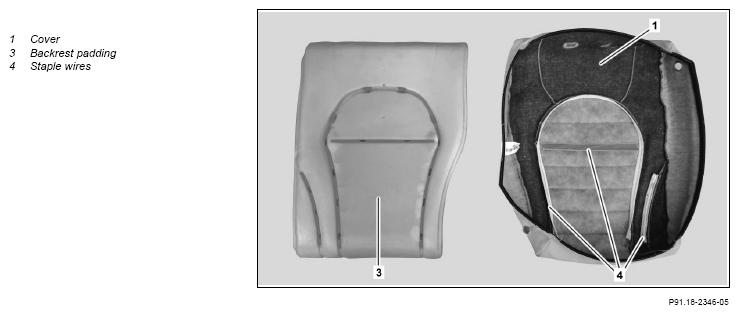

Fig 4 |
| 12 | Remove cover (1) from seat backrest padding (3). | Align seams of cover (1) and position in notches of seat backrest padding (3). The cover (1) must be aligned centrally on the seat backrest padding (3). |
|
| 13 | Pull staple wires (4) out of hose straps of cover (1). | When replacing the cover (1). Smooth out hose straps of cover (1). |
|
| 14 | Install in the reverse order |
