Remove/Install Front Seat Side Airbag Unit - AR91.60-P-0695LWX
Model 205, 213, 253, 290 with code 555 (AMG-Performance Seat)
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 5. | P91.60-A017-09 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/Install | |||

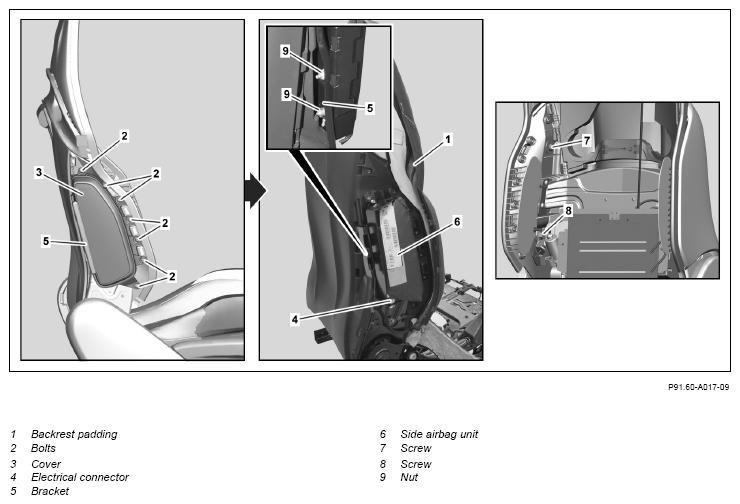

| 1 | Detach seat backrest padding (1) until the screws (7, 8) are accessible. | Model 290 with code 555 (AMG-Performance Seat) | AR91.10-P-0003FRX |
| Model 205, 213, 253 with code 555 (AMG-Performance Seat) | AR91.10-P-0003LWX | ||
| 2 | Unclip side seat cover. | Long wedge |
Fig 2 |
| 3 | Unscrew bolts (2). | ||
| 4 | Unclip cover (3) from holder (5) and remove. | ||
| 5 | Release and disconnect electrical connector (4). | WIS Service Media Operation steps 5 to 10 are shown here: multimedia:A supplement to the article is available. Removal lever |
Fig 3 |
| 6 | Unscrew bolt (7). | ||
| 7 | Loosen the screw (8). | ||
| 8 | Push holder (5) to one side until the nuts (9) are accessible. | ||
| 9 | Unscrew nuts (9). | Nut, side bag unit to backrest frame |
*BA91.60-P-1006-01O |
| 10 | Carefully remove side airbag unit (6). | ||
| 11 | Install in the reverse order | ||
| Check | |||
| 12 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing the side airbag unit (6). | |
| Model 205, 213, 253 with code 555 (AMG-Performance Seat) | AD00.00-P-2000-04B | ||
| Model 290 with code 555 (AMG-Performance Seat) | AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 205.0/1/2/3 | Model 205.4 | |
|---|---|---|---|---|
| BA91.60-P-1006-01O | Nut, side bag unit to backrest frame | Nm | 7 | 7 |
AIRBAG
| Number | Designation | Model 213 | Model 253 | |
|---|---|---|---|---|
| BA91.60-P-1006-01O | Nut, side bag unit to backrest frame | Nm | 7 | 7 |
AIRBAG
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA91.60-P-1006-01O | Nut, side bag unit to backrest frame | Nm | 7 |
