Remove/Install Center Rear Seat Belt Buckle - AR91.40-P-1527LWR

Model 205.0/1/2

Model 213

Model 253, 293

Shown on Model 205.0

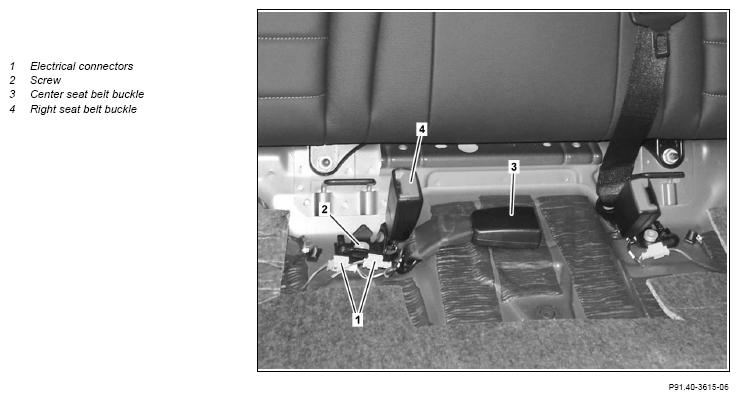

Fig 1: Center Rear Seat Belt Buckle Components Location - Model 205.0

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/Install
1	Remove seat cushion in rear passenger compartment.	Model 205.0/1/2 except code 248 (Rear Seat With Integrated Child Seat) except code P10 (Taxi Package Germany) Model 213 except code 248 (Rear Seat With Integrated Child Seat) Model 253, 293	AR91.12-P-1020LW
		Model 205.0/1/2 with code 248 (Rear Seat With Integrated Child Seat) Model 205.0/1/2 with code P10 (Taxi Package Germany) Model 213 with code 248 (Rear Seat With Integrated Child Seat)	AR91.12-P-1020LWA
2	Disconnect electrical connectors (1).
3	Remove screw/bolt (2).	Bolt, rear seat belt buckle	*BA91.40-P-1009-01U
4	Remove right seat belt buckle (3) together with center seat belt buckle (4).	Center belt buckle (3) and right belt buckle (4) form a unit and must be removed or replaced together. Note correct installation position of center belt buckle (3) and right belt buckle (4).
5	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.0	Model 205.1
BA91.40-P-1009-01U	Bolt, rear seat belt buckle	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 205.2	Model 213
BA91.40-P-1009-01U	Bolt, rear seat belt buckle	Nm	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 253	Model 293
BA91.40-P-1009-01U	Bolt, rear seat belt buckle	Nm	35	30
