Remove/ Install Rear Seat Cushion Cover - AR91.18-P-1850CLW
Model 205.3/4, 238
Shown on right seat cushion
| Remove | |||
| 1 | Remove seat cushion in rear | Model 205.3/4 except code 248 (Rear Seat With Integrated Child Seat) except code P10 (Taxi Package Germany) Model 238 |
AR91.12-P-1020LW |
| 2 | Remove ISOFIX covers (5) | ||
| 3 | Remove bolts (3) | ||

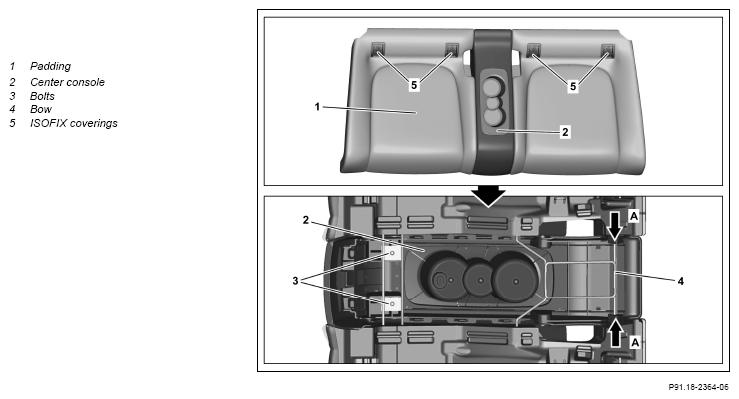

| 4 | Swivel center console (2) upwards until mounts (arrows A) can be unhooked from bracket (4) | ||
| 5 | Remove center console (2) | ||

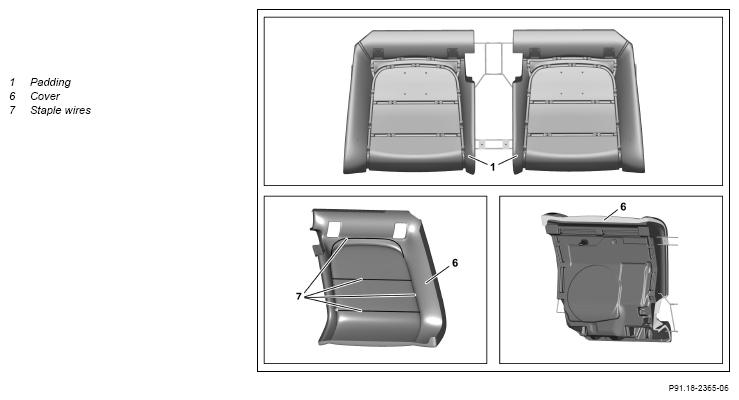

| 6 | Unhook clamping strips of cover (6) from seat cushion frame all around | Dismantling tool |
Fig 2 |
| 7 | Slip cover (6) over padding (1) | ||
| 8 | Unclip staple wires (7) from retaining clips of padding (1) | Dismantling tool |
Fig 2 |
| 9 | Pull staple wires (7) out of hose straps of cover (6) | When replacing the cover (6). | |
| Install | |||
| 10 | Insert staple wires (7) into hose straps of new cover (6) and smooth out hose straps | When replacing the cover (6). | |
| 11 | Align seams of cover (6) and position in notches of padding (1) | ||
| 12 | Clip staple wires (7) into retaining clips of padding (1) | Dismantling tool |
Fig 2 |
| 13 | Slip cover (6) over padding (1) | ||
| 14 | Hook clamping strips of cover (6) into seat cushion frame all around | ||
| 15 | Hook center console (2) into mounts (arrows A) of bracket (4) and swivel downward | ||
| 16 | Tighten bolts (3) | ||
| 17 | Hook in ISOFIX covers (5) with upper brackets and clip in at bottom | ||
| 18 | Install seat cushion in rear | Model 205.3/4 except code 248 (Rear Seat With Integrated Child Seat) except code P10 (Taxi Package Germany) Model 238 |
AR91.12-P-1020LW |
