Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683LWA

Model 205.0/1

with code 287 (Through-Loading Feature)

Model 205.2

Model 213.0

with code 287 (Through-Loading Feature)

Model 213.2

Model 253, 293

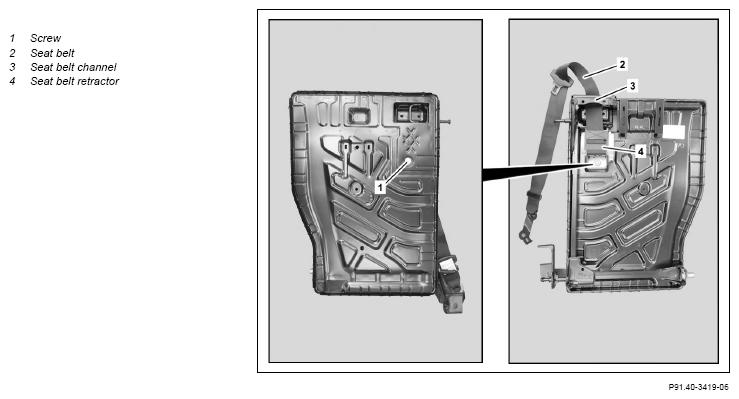

Fig 1: Rear Center Seat Belt Components Location - Model 205.0 With Code 287

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/Install
1	Remove rear left seat backrest cover.	Model 205.0/1 with code 287 (Through-Loading Feature) Model 205.2, 253, 293	AR91.18-P-1874LW
		Model 213.0 with code 287 (Through-Loading Feature) Model 213.2	AR91.18-P-1874LWE
2	Remove cover from rear seat backrest.
3	Remove screw (1) of seat belt retractor (4).	Bolt, center seat belt retractor to rear seat backrest	*BA91.40-P-1007-01U
4	Remove seat belt retractor (4) and guide seat belt (2) through seat belt duct (3).
5	Install in the reverse order
