Remove/Install Center Console Stowage Compartment Trim Element - AR68.20-P-0002LWE

Model 205 with transmission 722, 724, 725

Model 213, 238, 257 with transmission 725

Model 253 with transmission 724, 725

Model 293

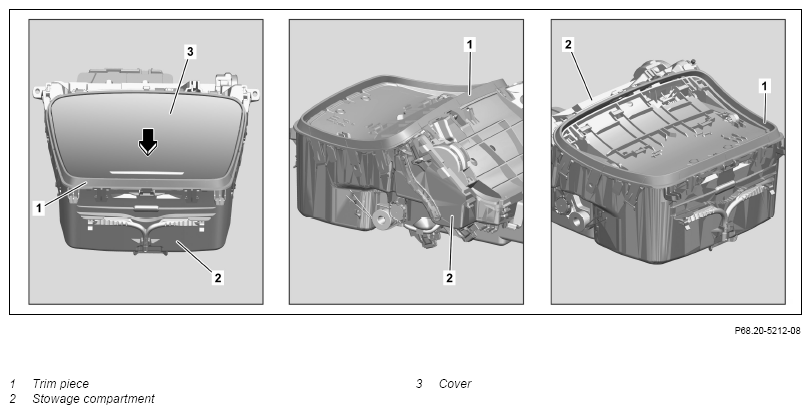

Fig 1: Center Console Stowage Compartment Trim Element Components Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove stowage compartment (2) in the front center console.	Model 293	AR68.20-P-0901EQ
		Model 205 with transmission 722, 724, 725 Model 213, 238, 257 with transmission 725 Model 253 with transmission 724, 725	AR68.20-P-0901LWM
2	Unclip cover (3) in the direction of the arrow from the stowage compartment (2) and remove.	Before clipping in, ensure correct positioning of the cover (3). Otherwise, the fasteners and the cover (3) may be damaged.
3	Release trim piece (1) from the retaining tabs all around the stowage compartment (2).	Ensure correct engagement of the retaining tabs. Long wedge	Fig 2
4	Remove trim piece (1).
5	Install in the reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
