Remove/Install Armrest Lid On Center Console - AR68.20-P-2370LW
Model 205
Model 253
Model 293

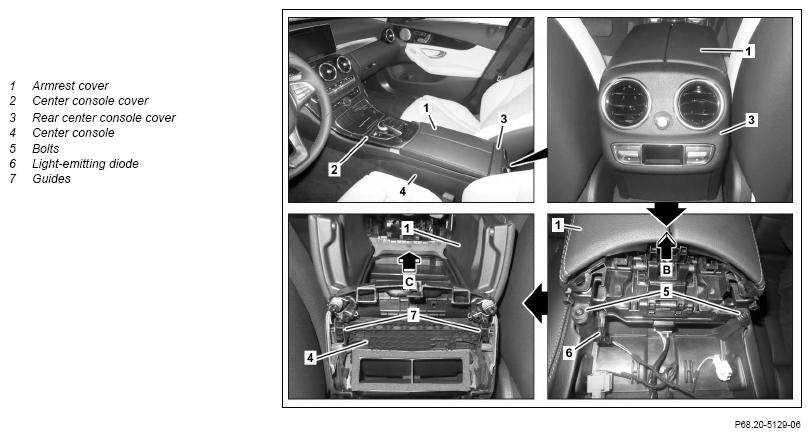

Fig 1: Armrest Lid On Center Console Components Location - Model 205; Shown With Transmission 722 And With Code 876
Shown on model 205 with transmission 722 and with code 876 (Interior Light Package)
| Remove/install | |||
| 1 | Remove center console cover (2). | Model 205, 253 with transmission 716 | AR68.20-P-2350LWA |
| Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725 Model 293 |
AR68.20-P-2350LW | ||
| 2 | Open armrest cover (1). | ||
| 3 | Remove rear center console cover (3). | AR68.20-P-2358LW | |
| 4 | Disconnect light-emitting diode (6) from fiber-optic cable. | Model 205, 253, 293 with code 876 (Interior Light package) Model 205, 253, 293 with code 877 (ambient lighting) |
|
| 5 | Remove bolts (5). | ||
| 6 | Lift armrest cover (1) at front (arrow B) and move towards front with guides (7) out of center console (4) (arrow C). | ||
| 7 | Install in the reverse order |
