Retrofit Luggage Net With Holder - AZ68.50-P-0007-02LW

Model 205

Fig 1: Identifying Graduated Drill (450 589 00 28 00)

Courtesy of MERCEDES-BENZ USA

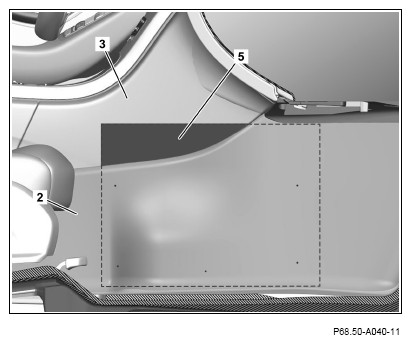

1. Position protective plate (5) behind front floor covering (2).

   Protective plate (5) must, without fail, be positioned behind front floor covering (2).

   The underlying component parts will otherwise be damaged during drilling.

   Use commercially available protective plate, e.g. steel plate or similar.

   Courtesy of MERCEDES-BENZ USA

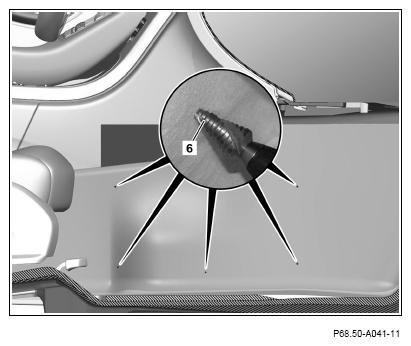

2. Drill applied markings up to first step of stepped drill bit (6) .

   First step corresponds to Ø 6 mm

   Courtesy of MERCEDES-BENZ USA

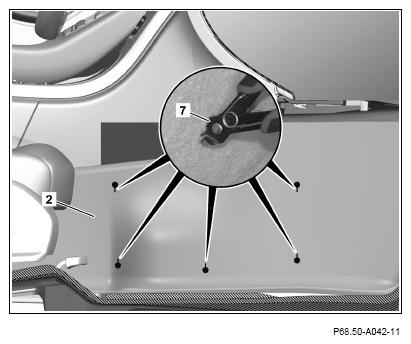

3. Using a suitable side cutting pliers (7), cut lower bores at front floor covering (2) approx. 3 mm deep upwards.

   Do not cut bores at front floor covering (2) too deep.

   The firm hold of the luggage net will otherwise not be ensured.

4. Using a suitable side cutting pliers (7), cut upper bores at front floor covering (2) approx. 3 mm deep downwards.

   Do not cut bores at front floor covering (2) too deep.

   The firm hold of the luggage net will otherwise not be ensured.

   Courtesy of MERCEDES-BENZ USA

5. Screw brackets (4) into incorporated bores.

   Start at respective cutting edge (arrow A).

   Courtesy of MERCEDES-BENZ USA

6. Align brackets (4).

   Openings at brackets (4) must point outwards.

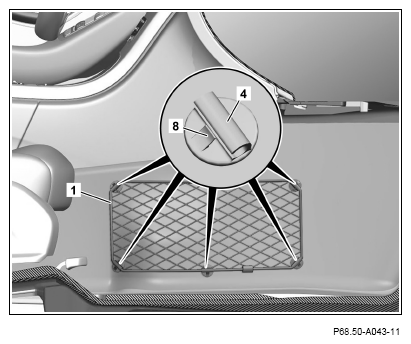

7. Attach luggage net (1) to brackets (4).

   Check strap of luggage net (1) must be located behind lugs (8) of brackets (4).

Courtesy of MERCEDES-BENZ USA
