Retrofit Easy-Pack System Box In Trunk - AN68.50-P-0006LW
MODEL 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Install | |||

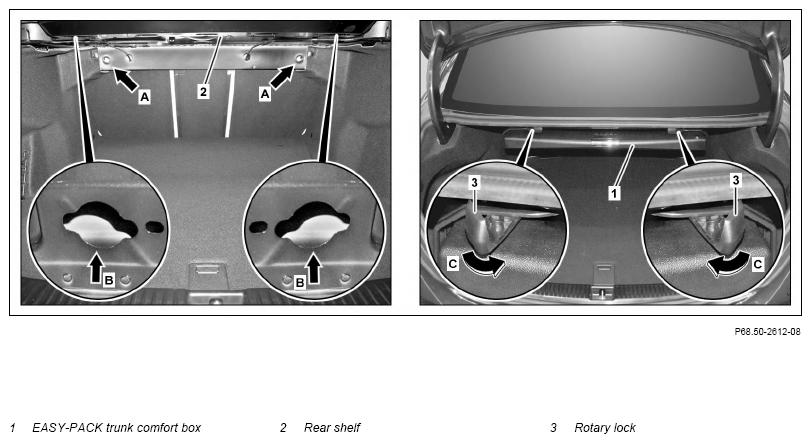

| 1 | Insert EASY-PACK trunk comfort box (1) into front anchors (arrow A) | ||
| 2 | Position EASY-PACK trunk comfort box (1) at top at bottom of rear shelf (2) and lock rotation locks (3) by turning rear anchors (arrows B) in direction of arrow (arrows C) | ||
| 3 | Add special equipment via the vehicle documentation (VeDoc) to the online vehicle data card | ||
| 4 | Document retrofitted equipment in VeDoc |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (Refer to the appropriate EPC) | EASY-PACK trunk comfort box | 1 |
