Fabricate Drilling Template For Luggage Net Holder - AZ68.50-P-0007-01LW

Model 205

1. Print out drawing of rear drilling template for luggage net holder (SH).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed-out rear drilling template for luggage net holder (SH) to original size using determined scaling factor.
5. Check dimension (A) and dimension (B) of copy.
6. Cut out rear drilling template for luggage net holder (SH).

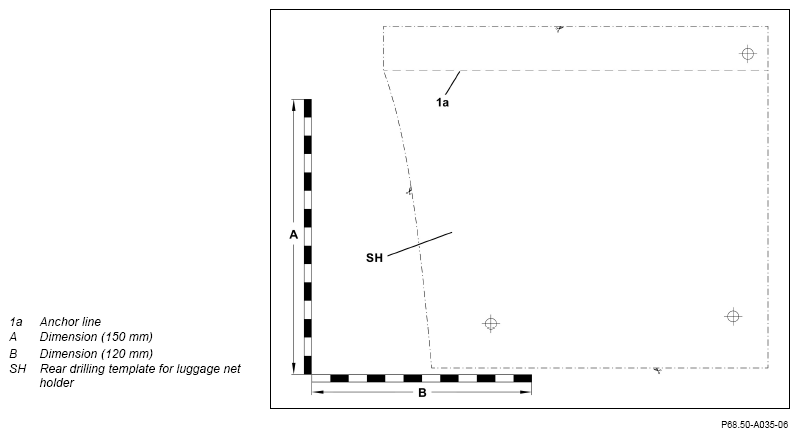

   Fabricate rear drilling template for luggage net holder (SH)

   Courtesy of MERCEDES-BENZ USA

7. Print out drawing of front drilling template for luggage net holder (SV).
8. Determine dimensions (A, B) of print-out.
9. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

10. Copy printed-out front drilling template for luggage net holder (SV) to original size using determined scaling factor.
11. Check dimension (A) and dimension (B) of copy.
12. Cut out front drilling template for luggage net holder (SV).

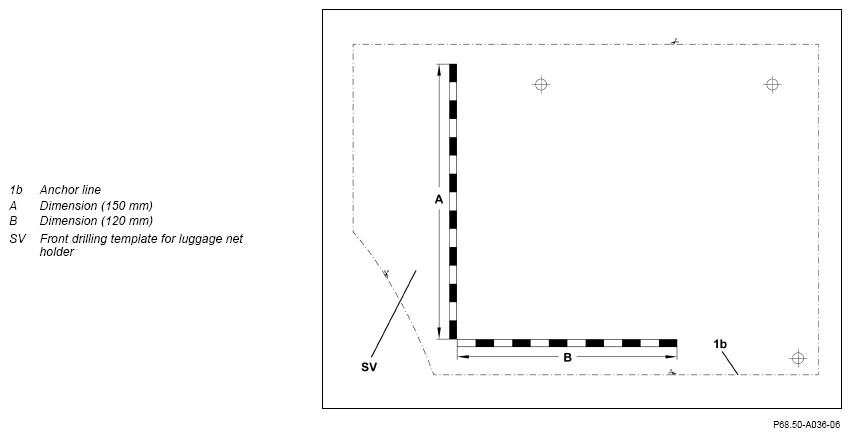

    Front drilling template for luggage net holder (SV)

    Courtesy of MERCEDES-BENZ USA

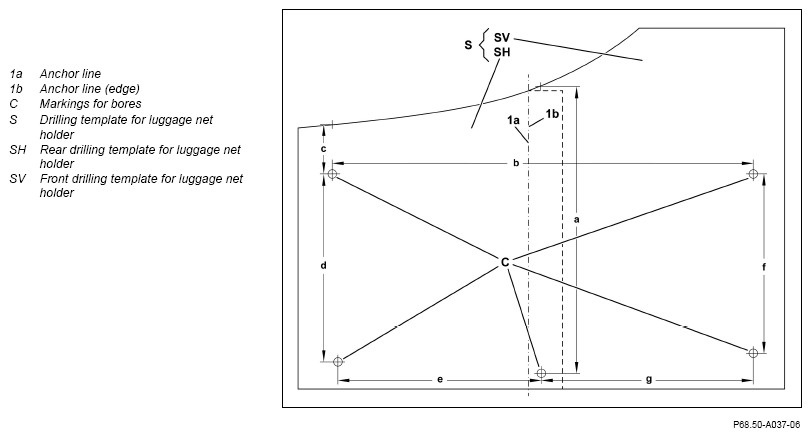

    Join drilling templates together

    Courtesy of MERCEDES-BENZ USA

13. Align rear drilling template for luggage net holder (SH) and front drilling template for luggage net holder (SV) with anchor lines (1a, 1b).
14. Fix rear drilling template for luggage net holder (SH) and front drilling template for luggage net holder (SV) in place with adhesive tape.
15. Check dimensions.

    Dimension "a" = 201 mm

    Dimension "b" = 296 mm

    Dimension "c" = 35 mm

    Dimension "d" = 132 mm

    Dimension "e" = 143 mm

    Dimension "f" = 126 mm

    Dimension "g" = 149 mm

16. Pierce markings for bores (C) in center on created drilling template for luggage net holder (S) with suitable tool.
