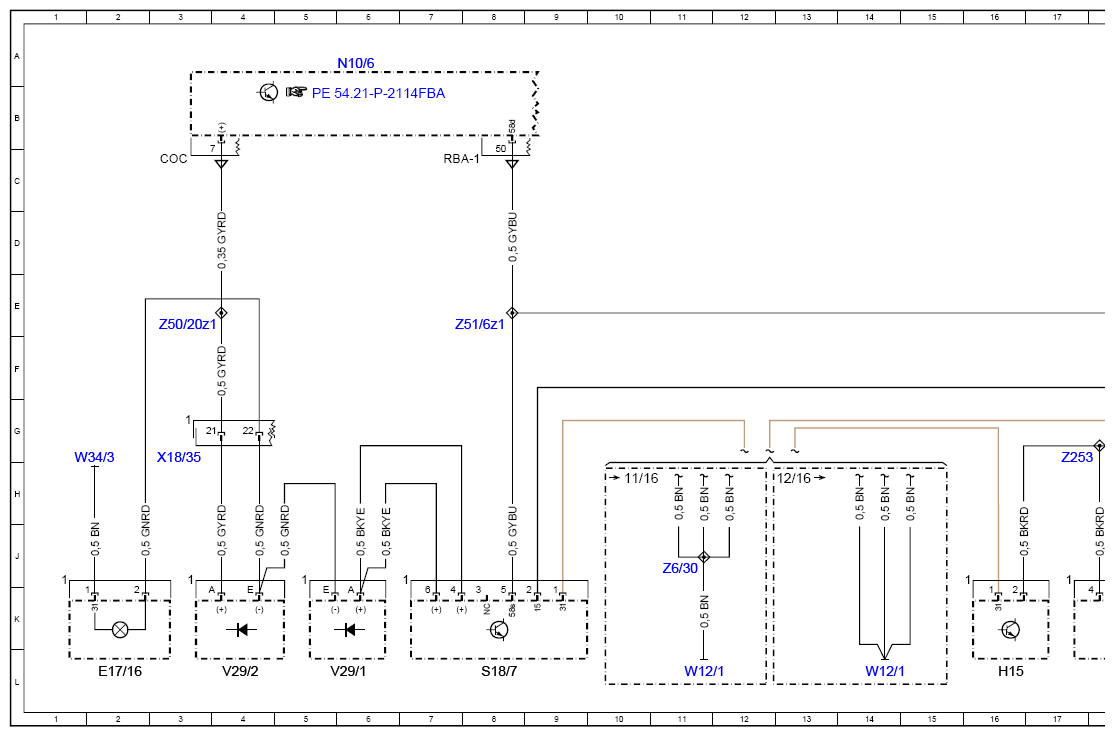

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97FBA
Model 205 up to model year 2019 with code U63 (Driving school package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| E17/16 | Left front footwell lamp | 2L |
| H15 | Pedal operation monitor buzzer | 16L |
| K40/5 | Rear fuse and relay module | 23L |
| K40/5f454 | Fuse 454 | 21L |
| N10/6 | Front SAM control unit | 6A |
| S146 | Pedal operation monitor switch | 19L |
| S18/7 | Footwell illumination switch | 8L |
| V29/1 | Footwell illumination diode 1 | 6L |
| V29/2 | Footwell lamp diode 2 | 4L |
| W12/1 | Right center console ground point | 14L |
| W12/1 | Right center console ground point | 11L |
| W34/3 | Right footwell ground point | 1H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 3H |
| Z253 | Pedal operation monitor buzzer connector sleeve | 17G |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 3E |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 8E |
| Z6/30 | Circuit 31 connector sleeve | 11J |
