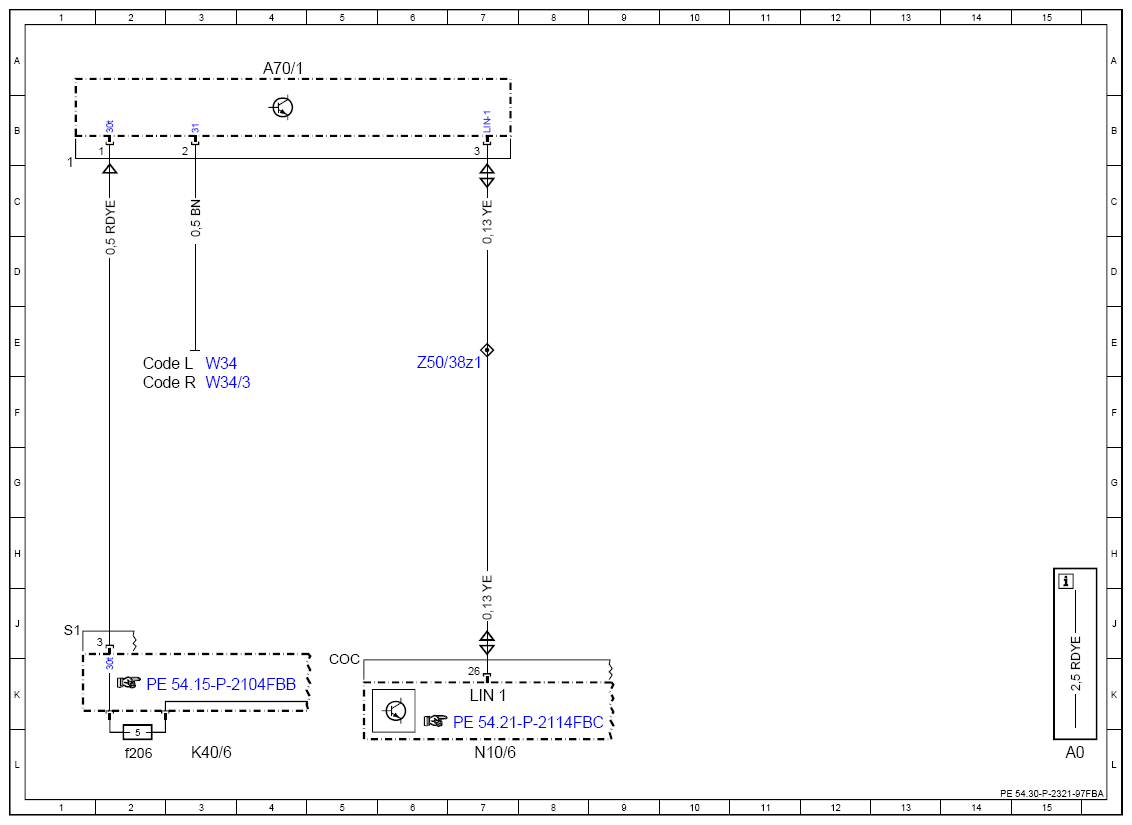

Wiring Diagram For Analog Clock - PE54.30-P-2321-97FBA
Model 205 as of model year 2019 with code 246 (Analog clock)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A70/1 | Analog clock | 4A |
| Code L | LEFT-HAND DRIVE | 2E |
| Code R | RIGHT-HAND DRIVE | 2F |
| K40/6 | Driver-side fuse and relay module | 3L |
| K40/6f206 | Fuse 206 | 2L |
| LIN 1 | Instrument panel LIN | 7K |
| N10/6 | Front SAM control unit | 7L |
| W34 | Left footwell ground point | 3E |
| W34/3 | Right footwell ground point | 3F |
| Z50/38z1 | Instrument panel LIN connector sleeve | 7E |
