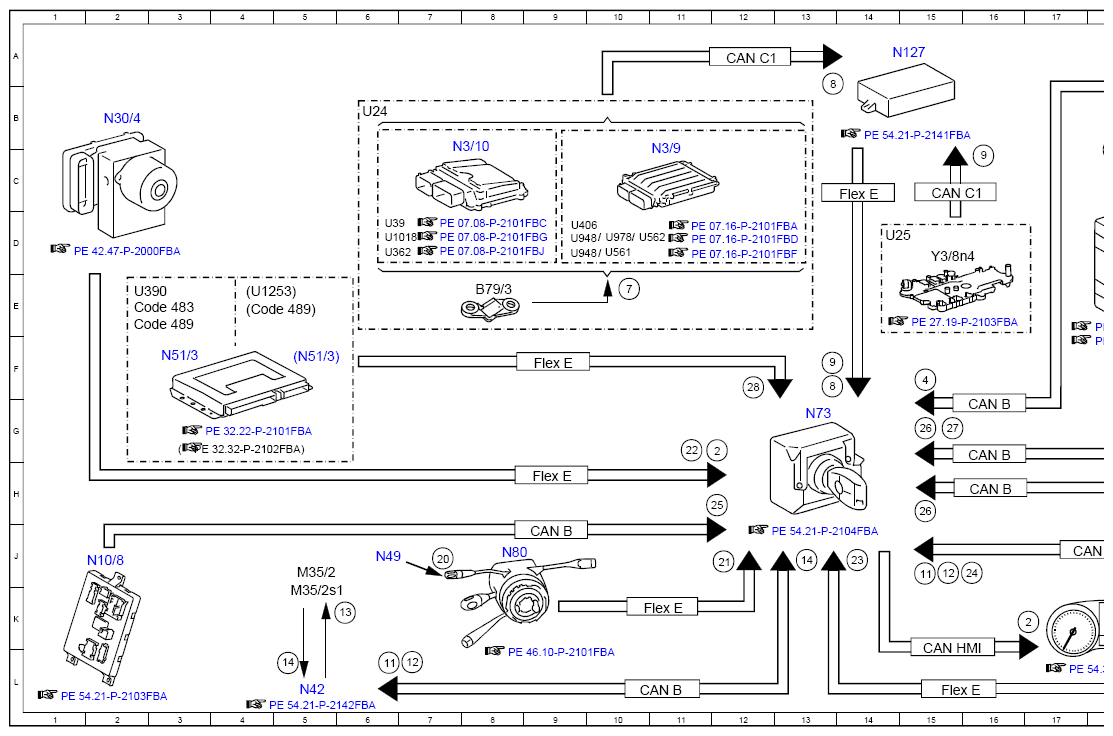

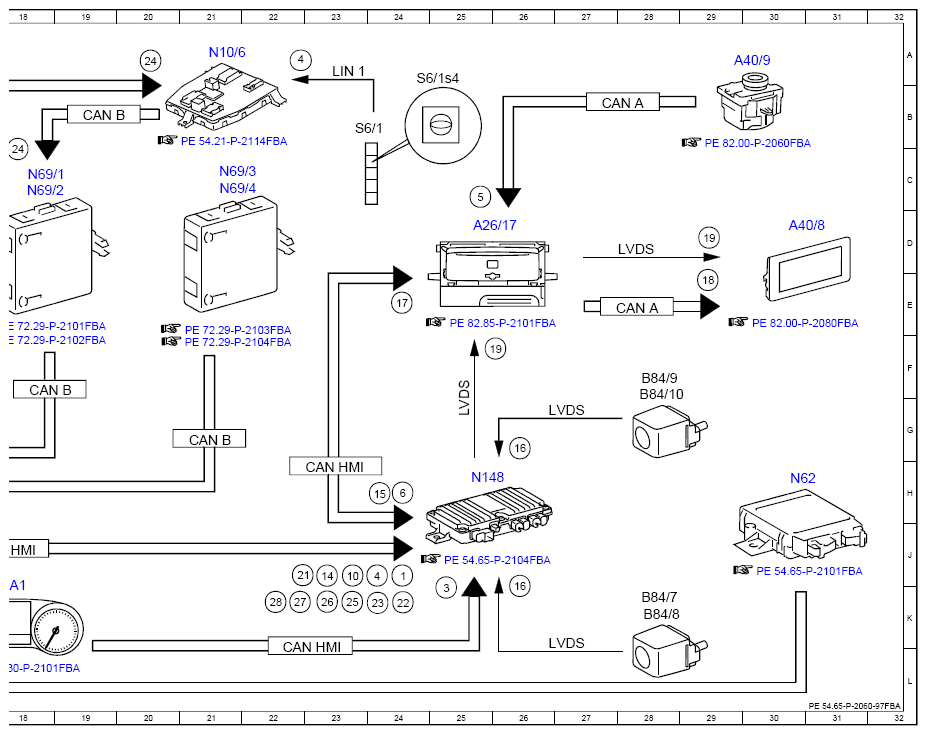

Electrical Function Schematic For 360 Degree Viewing System - PE54.65-P-2060-97FBA
Model 205 up to model year 2019 with code 501 (360° camera) Model 253 (except 253.99) with code 501 (360° camera)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 24J |
| 10 | Reverse gear, status | 23J |
| 11 | "Open" rear camera cover, request | 6L |
| 11 | "Open" rear camera cover, request | 15J |
| 12 | "Close" rear camera cover, request | 15J |
| 12 | "Close" rear camera cover, request | 7L |
| 13 | Rear camera cover motor, actuation | 5K |
| 14 | Rear camera cover motor switch, status | 5L |
| 14 | Rear camera cover motor switch, status | 13J |
| 14 | Rear camera cover motor switch, status | 23K |
| 15 | 360° camera service mode, request | 24H |
| 16 | Camera image, signal | 26K |
| 16 | Camera image, signal | 26G |
| 17 | 360° camera display, request | 24E |
| 18 | Audio/COMAND display, request | 29E |
| 19 | Processed image data, signal | 29D |
| 19 | Processed image data, signal | 25F |
| 2 | Wheel speed, signal | 12G |
| 2 | Wheel speed, signal | 17K |
| 20 | Steering wheel angle sensor, signal | 7J |
| 21 | Steering wheel angle, signal | 12J |
| 21 | Steering wheel angle, signal | 22J |
| 22 | Wheel angle, signal | 11G |
| 22 | Wheel angle, signal | 24K |
| 23 | Parking system, status | 14J |
| 23 | Parking system, status | 24K |
| 24 | Ambient illumination, request | 20A |
| 24 | Ambient illumination, request | 18C |
| 24 | Ambient illumination, request | 16J |
| 25 | Trunk lid/liftgate lock main catch switch, status | 12H |
| 25 | Trunk lid/liftgate lock main catch switch, status | 23K |
| 26 | Door rotary tumbler switch, status | 15H |
| 26 | Door rotary tumbler switch, status | 23K |
| 26 | Door rotary tumbler switch, status | 15G |
| 27 | Automatic power folding mirrors, status | 15G |
| 27 | Automatic power folding mirrors, status | 22K |
| 28 | Vehicle level, status | 12F |
| 28 | Vehicle level, status | 22K |
| 3 | Vehicle speed, signal | 25K |
| 4 | 360° camera button, status | 15F |
| 4 | 360° camera button, status | 22A |
| 4 | 360° camera button, status | 24J |
| 5 | Operation, signal | 25C |
| 6 | 360° camera function, status | 24H |
| 7 | Manual transmission main shifter shaft position sensor, signal | 10E |
| 8 | Reverse gear engaged, signal | 13F |
| 8 | Reverse gear engaged, signal | 13A |
| 9 | Gear range, status | 16C |
| 9 | Gear range, status | 13F |
| A1 | Instrument cluster | 18K |
| A26/17 | Head unit | 25D |
| A40/8 | Audio/COMAND display | 30D |
| A40/9 | Audio/COMAND control panel | 30A |
| B79/3 | Manual transmission main shifter shaft position sensor | 8E |
| B84/10 | Rear end 360° camera | 28G |
| B84/7 | Left outside mirror 360° camera | 28K |
| B84/8 | Right outside mirror 360° camera | 28K |
| B84/9 | Front end 360° camera | 28F |
| CAN A | Telematics CAN | 28E |
| CAN A | Telematics CAN | 27B |
| CAN B | Interior CAN | 9J |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 11L |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 19B |
| CAN B | Interior CAN | 16H |
| CAN B | Interior CAN | 21G |
| CAN C1 | Drivetrain CAN | 15C |
| CAN C1 | Drivetrain CAN | 12A |
| CAN HMI | User interface CAN | 18J |
| CAN HMI | User interface CAN | 22L |
| CAN HMI | User interface CAN | 15L |
| CAN HMI | User interface CAN | 23H |
| Code 483 | ADVANCED AGILITY package | 2E |
| Code 489 | AIR BODY CONTROL | 4E |
| Code 489 | AIR BODY CONTROL | 2E |
| Flex E | Chassis FlexRay | 14C |
| Flex E | Chassis FlexRay | 9H |
| Flex E | Chassis FlexRay | 9F |
| Flex E | Chassis FlexRay | 11K |
| Flex E | Chassis FlexRay | 15L |
| LIN 1 | Instrument panel LIN | 23A |
| LVDS | Low voltage differential signal | 28D |
| LVDS | Low voltage differential signal | 27G |
| LVDS | Low voltage differential signal | 27K |
| LVDS | Low voltage differential signal | 25F |
| M35/2 | Rear camera cover motor | 5J |
| M35/2s1 | Rear camera cover motor switch | 5K |
| N10/6 | Front SAM control unit | 21A |
| N10/8 | Rear SAM control unit | 2J |
| N127 | Drivetrain control unit | 14A |
| N148 | 360° camera control unit | 25H |
| N3/10 | ME-SFI [ME] control unit | 8C |
| N3/9 | CDI control unit | 11C |
| N30/4 | Electronic Stability Program control unit | 2B |
| N42 | Camera cover control unit | 5L |
| N49 | Steering wheel angle sensor | 6J |
| N51/3 | AIR BODY CONTROL, control unit | 3F |
| N51/3 | AIR BODY CONTROL, control unit | 5F |
| N62 | Parking system control unit | 30H |
| N69/1 | Left front door control unit | 18C |
| N69/2 | Right front door control unit | 18C |
| N69/3 | Left rear door control unit | 21C |
| N69/4 | Right rear door control unit | 21C |
| N73 | Electronic ignition switch control unit | 13G |
| N80 | Steering column module control unit | 8J |
| S6/1 | Driver-side instrument panel button group | 23B |
| S6/1s4 | 360° camera button | 24A |
| U1018 | Valid for gasoline engine 276 | 6D |
| U1253 | Valid for model 253 | 4E |
| U24 | Valid for manual transmission | 6B |
| U25 | Valid for automatic transmission | 14D |
| U362 | Valid for gasoline engine 274 | 6D |
| U39 | Valid for gasoline engine 177 | 6D |
| U390 | Valid for model 205 | 2E |
| U406 | Valid for diesel engine 626 | 9D |
| U561 | Valid for Delphi system | 10D |
| U562 | Valid for Bosch system | 10D |
| U948 | Valid for diesel engine 651 | 9D |
| U948 | Valid for diesel engine 651 | 9D |
| U978 | Valid for hybrid drive | 10D |
| Y3/8n4 | Fully integrated transmission control, control unit | 15D |
