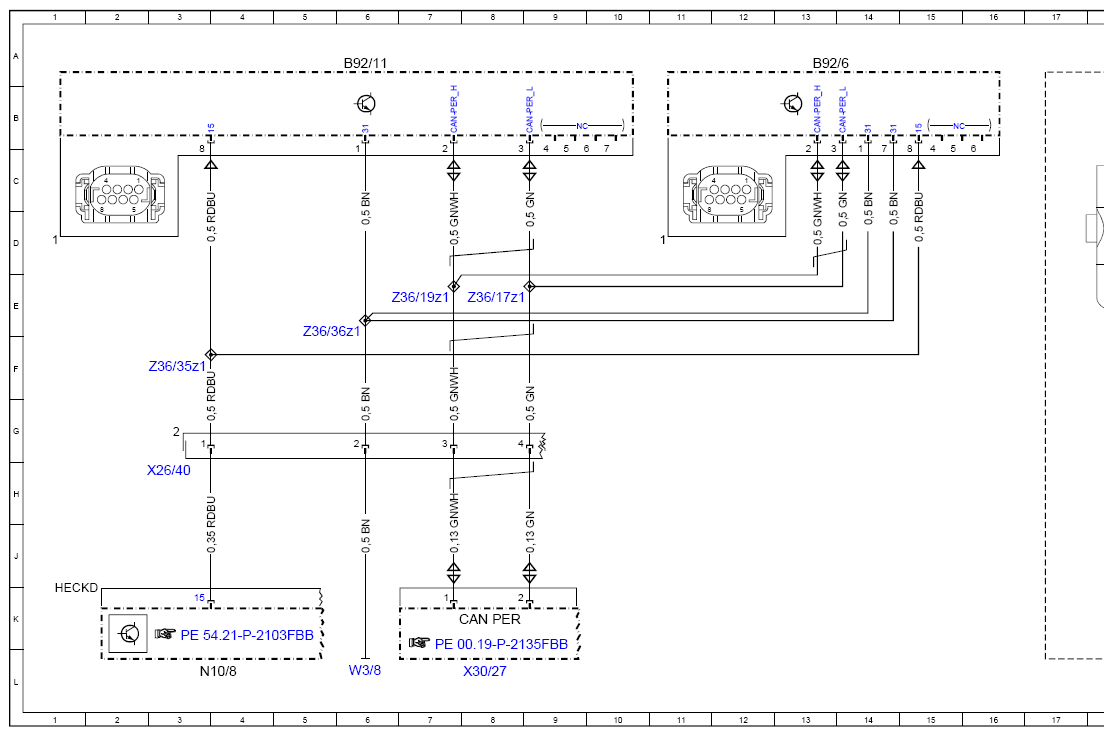

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97FBB
Model 205 as of model year 2019 with code 22P (Lane tracking package) with code 234 (Blind Spot Monitoring)
| Code: | Designation: | Position: |
|---|---|---|

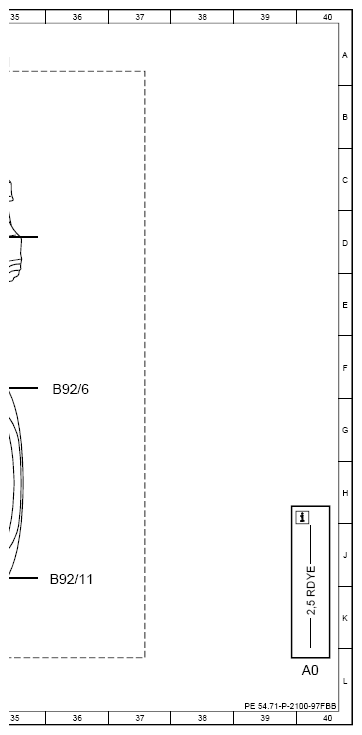

| A0 | Use of wiring diagrams | 40L |

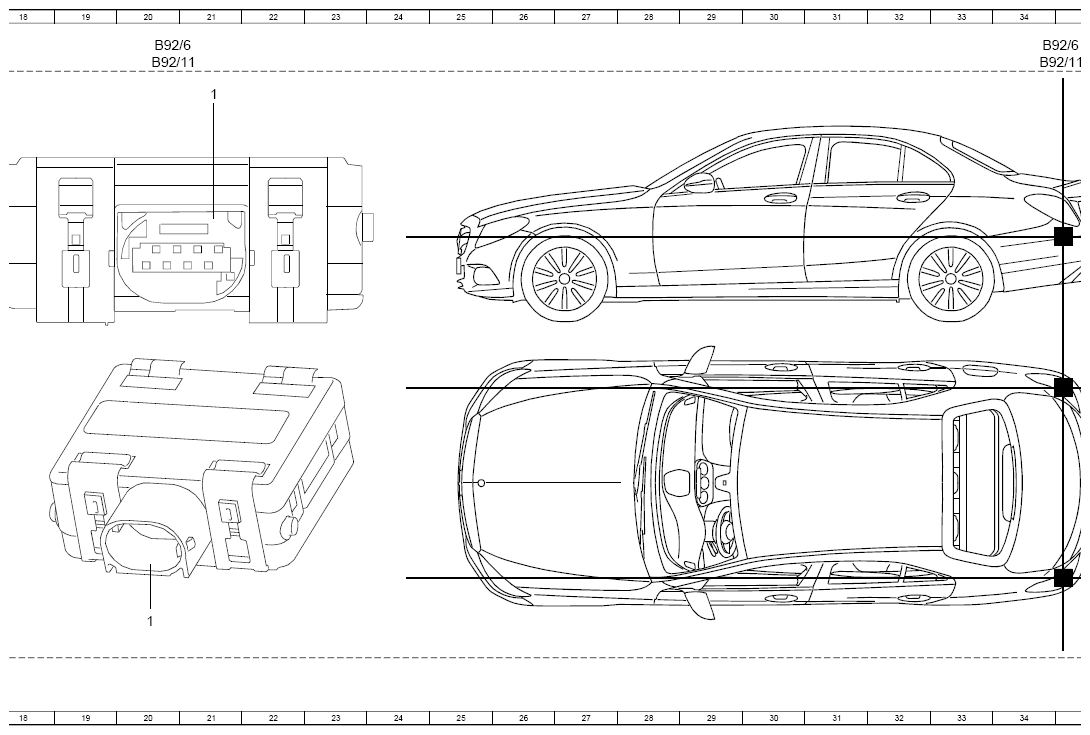

| B92/11 | Left outer rear bumper integrated radar sensor | 36J |
| B92/11 | Left outer rear bumper integrated radar sensor | 6A |
| B92/11 | Left outer rear bumper integrated radar sensor | 20A |
| B92/11 | Left outer rear bumper integrated radar sensor | 34A |
| B92/6 | Right outer rear bumper integrated radar sensor | 36F |
| B92/6 | Right outer rear bumper integrated radar sensor | 13A |
| B92/6 | Right outer rear bumper integrated radar sensor | 20A |
| B92/6 | Right outer rear bumper integrated radar sensor | 34A |
| CAN PER | Peripherals CAN | 8K |
| N10/8 | Rear SAM control unit | 3L |
| W3/8 | Right rear wheel well ground point | 6L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 3H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 8L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 8E |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 7E |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 3F |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 5E |
