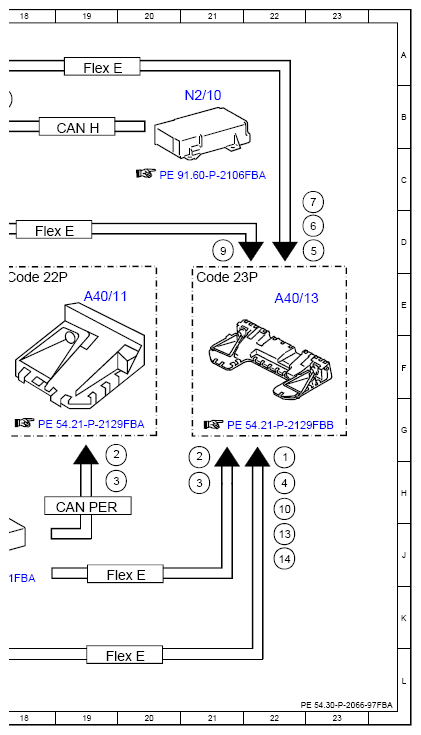

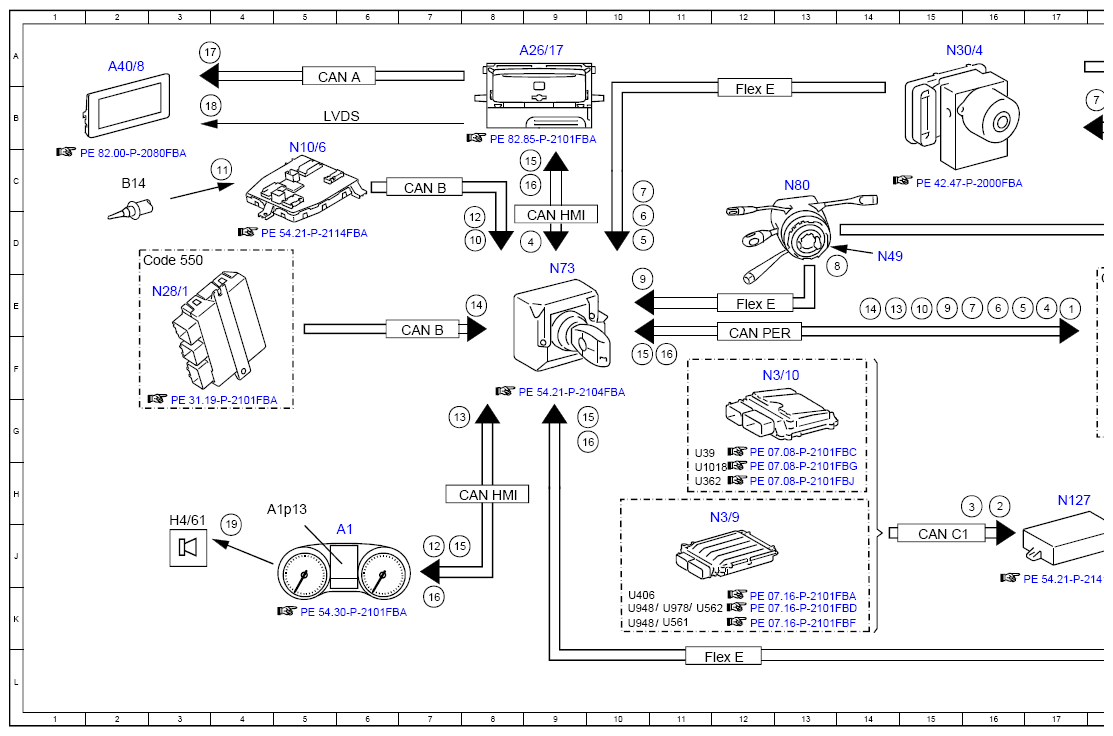

Electrical Function Schematic For Traffic Sign Assist - PE54.30-P-2066-97FBA
Model 205 up to model year 2019 with code 513 (Speed Limit Assist) Model 253 (except 253.99) up to model year 2020 with code 513 (Speed Limit Assist)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17E |
| 1 | Circuit 15, status | 22H |
| 10 | Wiper status, signal | 22H |
| 10 | Wiper status, signal | 8D |
| 10 | Wiper status, signal | 15E |
| 11 | Outside temperature sensor, signal | 4C |
| 12 | Outside temperature, signal | 7J |
| 12 | Outside temperature, signal | 8D |
| 13 | Displayed outside temperature, signal | 14E |
| 13 | Displayed outside temperature, signal | 22J |
| 13 | Displayed outside temperature, signal | 7G |
| 14 | Trailer recognition, status | 14E |
| 14 | Trailer recognition, status | 22J |
| 14 | Trailer recognition, status | 8E |
| 15 | Road sign display, request | 9C |
| 15 | Road sign display, request | 7J |
| 15 | Road sign display, request | 10G |
| 15 | Road sign display, request | 11F |
| 16 | Warning and system messages, request | 9C |
| 16 | Warning and system messages, request | 11F |
| 16 | Warning and system messages, request | 10G |
| 16 | Warning and system messages, request | 7J |
| 17 | Audio/COMAND display, actuation | 3A |
| 18 | Low voltage differential signal video signal data transfer, signal | 3B |
| 19 | Speaker, actuation | 4J |
| 2 | Engine running, signal | 16H |
| 2 | Engine running, signal | 19G |
| 2 | Engine running, signal | 21G |
| 3 | Drivetrain operational, signal | 16H |
| 3 | Drivetrain operational, signal | 19H |
| 3 | Drivetrain operational, signal | 21H |
| 4 | Map data, signal | 9D |
| 4 | Map data, signal | 17E |
| 4 | Map data, signal | 22H |
| 5 | Wheel speed, signal | 10D |
| 5 | Wheel speed, signal | 16E |
| 5 | Wheel speed, signal | 23D |
| 6 | Wheel rotation direction, signal | 10D |
| 6 | Wheel rotation direction, signal | 23D |
| 6 | Wheel rotation direction, signal | 16E |
| 7 | Turn rate, lateral and longitudinal acceleration sensor, signal | 16E |
| 7 | Turn rate, lateral and longitudinal acceleration sensor, signal | 18B |
| 7 | Turn rate, lateral and longitudinal acceleration sensor, signal | 10C |
| 7 | Turn rate, lateral and longitudinal acceleration sensor, signal | 23C |
| 8 | Steering wheel angle sensor, signal | 13D |
| 9 | Steering wheel angle, signal | 10E |
| 9 | Steering wheel angle, signal | 21D |
| 9 | Steering wheel angle, signal | 15E |
| A1 | Instrument cluster | 6J |
| A1p13 | Multifunction display | 5H |
| A26/17 | Head unit | 9A |
| A40/11 | Mono multifunction camera | 19E |
| A40/13 | Stereo multifunction camera | 22E |
| A40/8 | Audio/COMAND display | 2A |
| B14 | Outside temperature sensor | 2C |
| CAN A | Telematics CAN | 5A |
| CAN B | Interior CAN | 7E |
| CAN B | Interior CAN | 7C |
| CAN C1 | Drivetrain CAN | 15J |
| CAN H | Vehicle dynamics CAN | 19B |
| CAN HMI | User interface CAN | 9D |
| CAN HMI | User interface CAN | 8H |
| CAN PER | Peripherals CAN | 12F |
| CAN PER | Peripherals CAN | 19H |
| Code 22P | Track package | 18E |
| Code 23P | Driver assistance package | 21E |
| Code 550 | Trailer hitch | 2D |
| Flex E | Chassis FlexRay | 12B |
| Flex E | Chassis FlexRay | 19A |
| Flex E | Chassis FlexRay | 19L |
| Flex E | Chassis FlexRay | 12L |
| Flex E | Chassis FlexRay | 19J |
| Flex E | Chassis FlexRay | 18D |
| Flex E | Chassis FlexRay | 12E |
| H4/61 | Instrument cluster speaker | 3J |
| LVDS | Low voltage differential signal | 5B |
| N10/6 | Front SAM control unit | 5C |
| N127 | Drivetrain control unit | 17H |
| N2/10 | Supplemental restraint system control unit | 21B |
| N28/1 | Trailer recognition control unit | 3E |
| N3/10 | ME-SFI [ME] control unit | 12F |
| N3/9 | CDI control unit | 12H |
| N30/4 | Electronic Stability Program control unit | 15A |
| N49 | Steering wheel angle sensor | 14D |
| N73 | Electronic ignition switch control unit | 9D |
| N80 | Steering column module control unit | 13C |
| U1018 | Valid for gasoline engine 276 | 11H |
| U362 | Valid for gasoline engine 274 | 11H |
| U39 | Valid for gasoline engine 177 | 11G |
| U406 | Valid for diesel engine 626 | 10K |
| U561 | Valid for Delphi system | 11K |
| U562 | Valid for Bosch system | 11K |
| U948 | Valid for diesel engine 651 | 10K |
| U948 | Valid for diesel engine 651 | 10K |
| U978 | Valid for hybrid drive | 11K |
