Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBV
Model 205 as of model year 2019 X8/4, X8/34, X8/35, X58/3, X62/6, X62/7, X62/32, X62/33
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A17/5 | Driver door KEYLESS-GO door handle | 44L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 48L |
| A2/105 | SDARS antenna | 29L |
| A26/17 | Head unit | 24L |
| A26/17 | Head unit | 29A |
| A85/5 | Trunk lid/liftgate lock | 14L |
| B25/10 | Taxi two-way radio microphone | 53L |
| B25/10 | Taxi two-way radio microphone | 59L |
| B84/10 | Rear end 360° camera | 26L |
| Code 218 | Backup camera | 17E |
| Code 235 | Active Park Assist | 4E |
| Code 235 | Active Park Assist | 2E |
| Code 235 | Active Park Assist | 25E |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 80B |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 73B |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 90B |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 104B |
| Code 460 | Canada version | 35E |
| Code 460 | Canada version | 33E |
| Code 483 | ADVANCED AGILITY package | 80A |
| Code 483 | ADVANCED AGILITY package | 73A |
| Code 483 | ADVANCED AGILITY package | 90A |
| Code 483 | ADVANCED AGILITY package | 104A |
| Code 489 | AIRMATIC | 80A |
| Code 489 | AIRMATIC | 73A |
| Code 489 | AIRMATIC | 90A |
| Code 489 | AIRMATIC | 104A |
| Code 494 | USA version | 35E |
| Code 494 | USA version | 33E |
| Code 4U9 | Semiautomatic remaining luggage compartment partition | 31E |
| Code 501 | 360 degree camera | 2E |
| Code 501 | 360 degree camera | 4E |
| Code 506 | Audio 20 NTG 5.5 radio | 23E |
| Code 506 | Audio 20 NTG 5.5 radio | 28E |
| Code 531 | COMAND APS | 23E |
| Code 531 | COMAND APS | 28E |
| Code 536 | SIRIUS satellite radio | 29E |
| Code 631 | Static LED headlamp, left-hand traffic | 6E |
| Code 631 | Static LED headlamp, left-hand traffic | 8E |
| Code 631 | Static LED headlamp, left-hand traffic | 37E |
| Code 631 | Static LED headlamp, left-hand traffic | 39E |
| Code 632 | Static LED headlamp, right-hand traffic | 9E |
| Code 632 | Static LED headlamp, right-hand traffic | 6E |
| Code 632 | Static LED headlamp, right-hand traffic | 40E |
| Code 632 | Static LED headlamp, right-hand traffic | 37E |
| Code 877 | Ambiance illumination | 46E |
| Code 877 | Ambiance illumination | 49E |
| Code 889 | KEYLESS-GO | 47E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 44E |
| Code 965 | Taxi/rental car - Pre-installation | 51A |
| Code 970 | Police emergency vehicles | 55A |
| Code 974 | Fire department lead emergency vehicle preinstallation | 55A |
| Code 975 | Emergency physician vehicle preinstallation | 55B |
| Code FA | CABRIOLET | 10J |
| Code FA | CABRIOLET | 1A |
| Code FA | CABRIOLET | 42A |
| Code FC | COUPE | 42A |
| Code L | LEFT-HAND DRIVE | 44A |
| Code L | LEFT-HAND DRIVE | 47A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 98A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 84A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 85A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 98A |
| Code R | RIGHT-HAND DRIVE | 47A |
| Code R | RIGHT-HAND DRIVE | 44A |
| E3/1 | Inner left rear lamp unit | 38L |
| E4/1 | Inner right rear lamp unit | 7L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 11L |
| K40/5 | Rear fuse and relay module | 18L |
| L6/1 | Left front axle RPM sensor | 78L |
| L6/2 | Right front axle RPM sensor | 69L |
| L6/3 | Left rear axle RPM sensor | 86L |
| L6/4 | Right rear axle RPM sensor | 100L |
| M35/2 | Rear camera cover motor | 3L |
| M76/1 | Left electric parking brake actuator motor | 88L |
| M76/2 | Right electric parking brake actuator motor | 102L |
| N10/8 | Rear SAM control unit | 2A |
| N10/8 | Rear SAM control unit | 13A |
| N10/8 | Rear SAM control unit | 7A |
| N10/8 | Rear SAM control unit | 10A |
| N10/8 | Rear SAM control unit | 33A |
| N10/8 | Rear SAM control unit | 38A |
| N10/8 | Rear SAM control unit | 109A |
| N22/6 | Rear control unit | 16A |
| N22/6 | Rear control unit | 31A |
| N26/7 | Special signal system control unit | 64A |
| N30/4 | Electronic Stability Program control unit | 69A |
| N30/4 | Electronic Stability Program control unit | 78A |
| N30/4 | Electronic Stability Program control unit | 87A |
| N30/4 | Electronic Stability Program control unit | 87A |
| N30/4 | Electronic Stability Program control unit | 101A |
| N30/4 | Electronic Stability Program control unit | 101A |
| N51/3 | AIRMATIC control unit | 75A |
| N51/3 | AIRMATIC control unit | 82A |
| N51/3 | AIRMATIC control unit | 92A |
| N51/3 | AIRMATIC control unit | 106A |
| N51/5 | Adaptive damping system control unit | 75A |
| N51/5 | Adaptive damping system control unit | 82A |
| N51/5 | Adaptive damping system control unit | 92A |
| N51/5 | Adaptive damping system control unit | 106A |
| N62 | Parking system control unit | 26A |
| N66/2 | Backup camera control unit | 19A |
| N66/2 | Backup camera control unit | 24A |
| N69/1 | Left front door control unit | 46L |
| N69/2 | Right front door control unit | 49L |
| S10/2 | Right front brake wear sensor | 71L |
| S10/4 | Right rear brake wear sensor | 110L |
| S138/3 | Trunk partition switch | 31L |
| S88/10 | Trunk lid emergency opening switch | 34L |
| W16/4 | Right major assembly compartment ground point | 72A |
| W3/11 | Left rear wheel well ground point | 40A |
| W3/8 | Right rear wheel well ground point | 9A |
| W3/8 | Right rear wheel well ground point | 4A |
| W52/6 | Right center longitudinal member ground point | 110A |
| W6 | Left wheel arch trunk ground point | 19L |
| W7 | Right wheelhouse trunk ground point | 12A |
| W7 | Right wheelhouse trunk ground point | 15A |
| W7 | Right wheelhouse trunk ground point | 35A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 70A |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 21L |
| X35/1 | Driver door electrical connector | 48A |
| X35/1 | Driver door electrical connector | 45A |
| X35/1 | Driver door electrical connector | 46A |
| X35/2 | Front passenger door electrical connector | 45A |
| X35/2 | Front passenger door electrical connector | 48A |
| X35/2 | Front passenger door electrical connector | 49A |

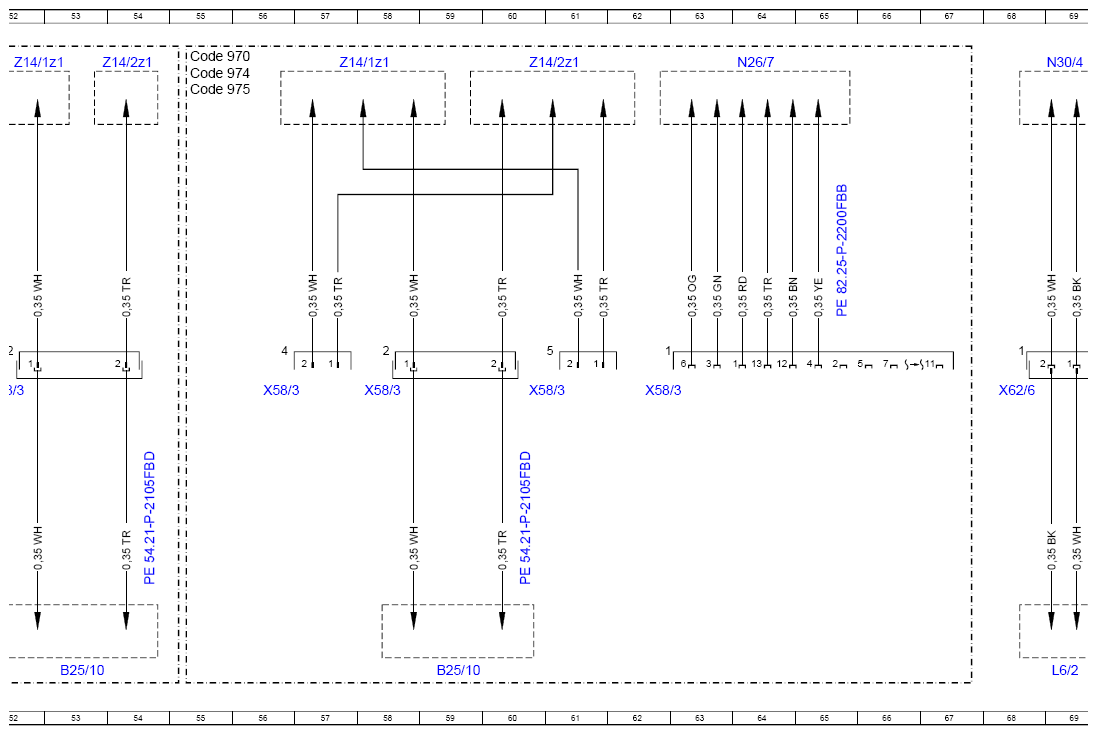

| X58/3 | Microphone separation point | 52F |
| X58/3 | Microphone separation point | 56F |
| X58/3 | Microphone separation point | 58F |
| X58/3 | Microphone separation point | 61F |
| X58/3 | Microphone separation point | 62F |
| X62/32 | Rear axle electrical connector, left distributor | 86F |

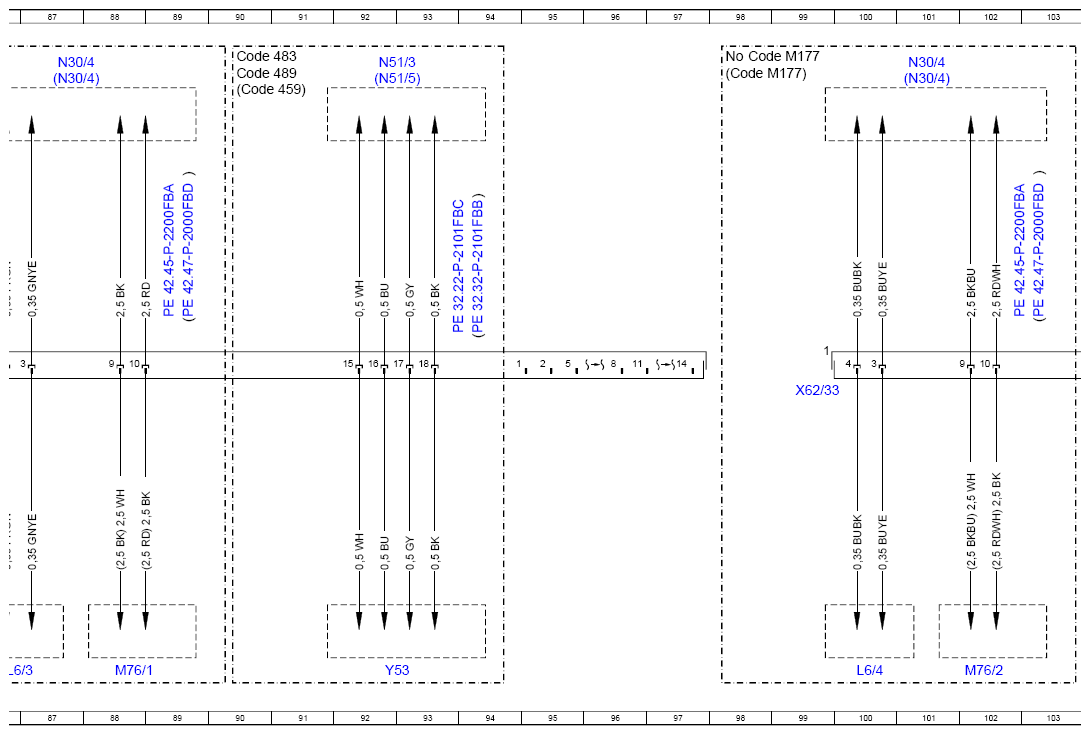

| X62/33 | Rear axle electrical connector, right distributor | 99F |

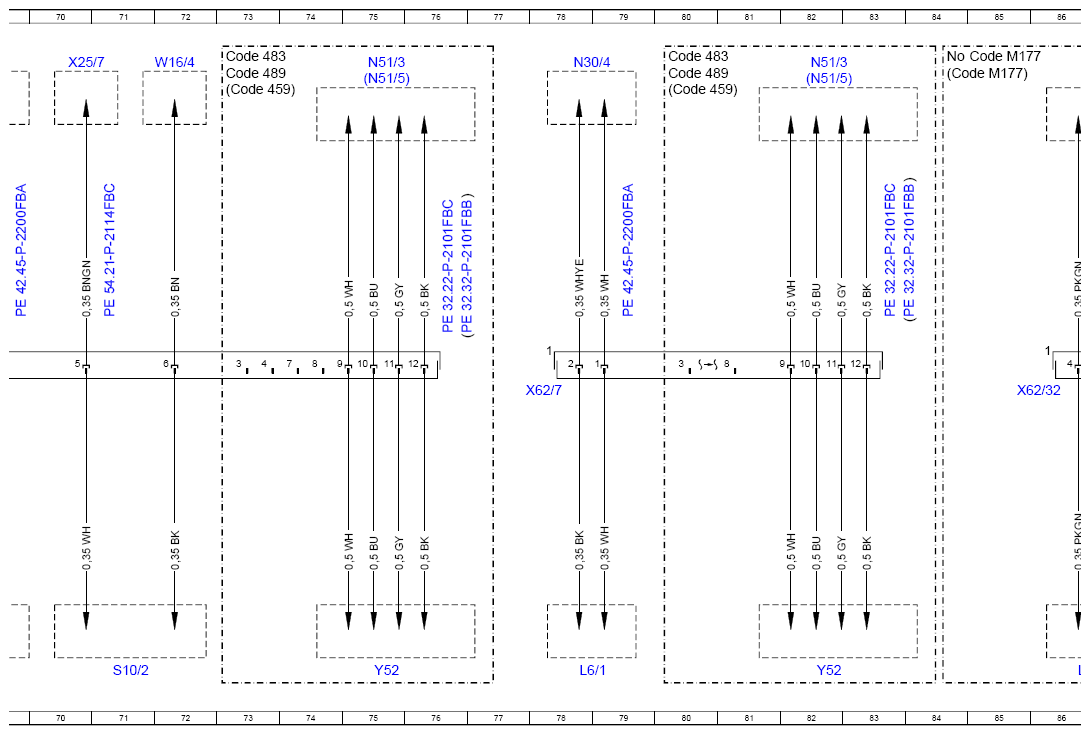

| X62/6 | Front axle electrical connector, right distributor | 68F |
| X62/7 | Front axle electrical connector, left distributor | 78F |

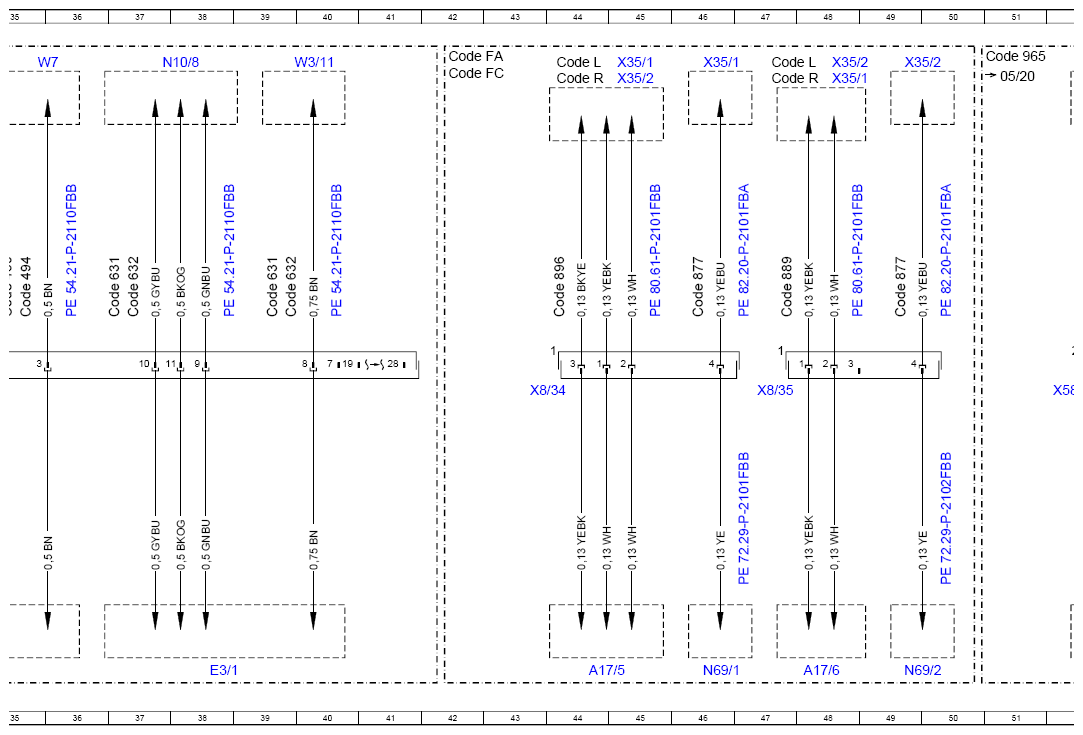

| X8/34 | Left front KEYLESS GO door handle electrical connector | 44F |
| X8/35 | Right front KEYLESS GO door handle electrical connector | 47F |

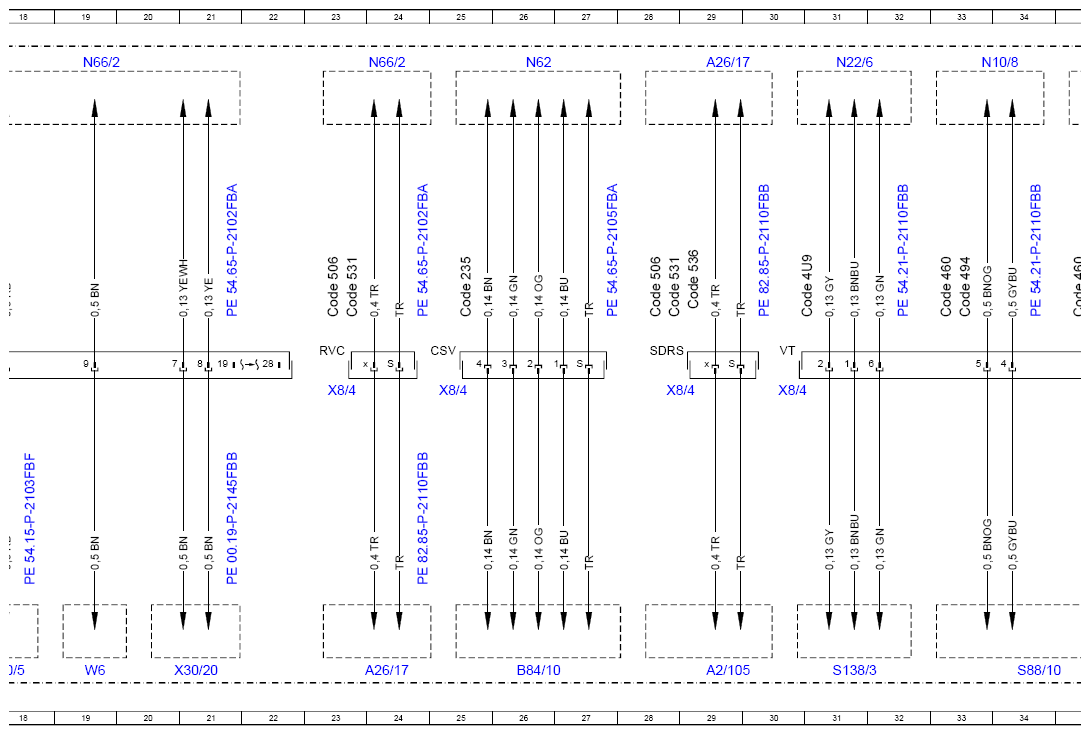

| X8/4 | Trunk lid/liftgate electrical connector | 23F |

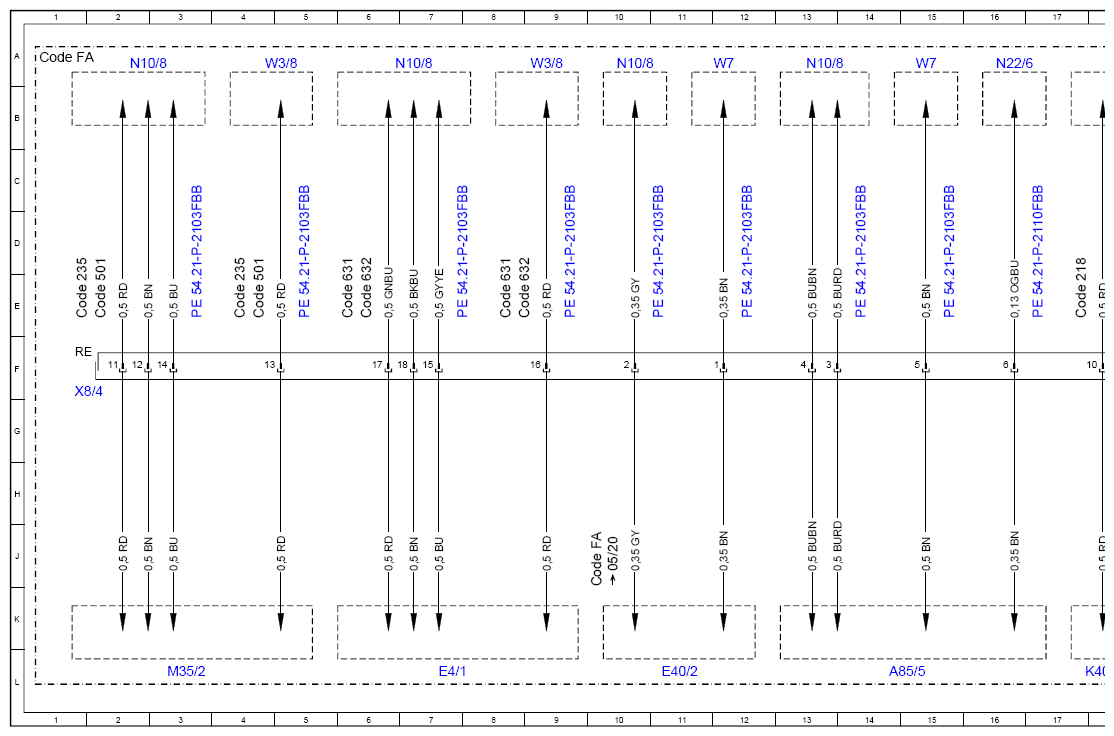

| X8/4 | Trunk lid/liftgate electrical connector | 2F |
| X8/4 | Trunk lid/liftgate electrical connector | 25F |
| X8/4 | Trunk lid/liftgate electrical connector | 30F |
| X8/4 | Trunk lid/liftgate electrical connector | 29F |
| Y52 | Right front axle damping valve unit | 75L |
| Y52 | Right front axle damping valve unit | 82L |
| Y53 | Left rear axle damping valve unit | 92L |

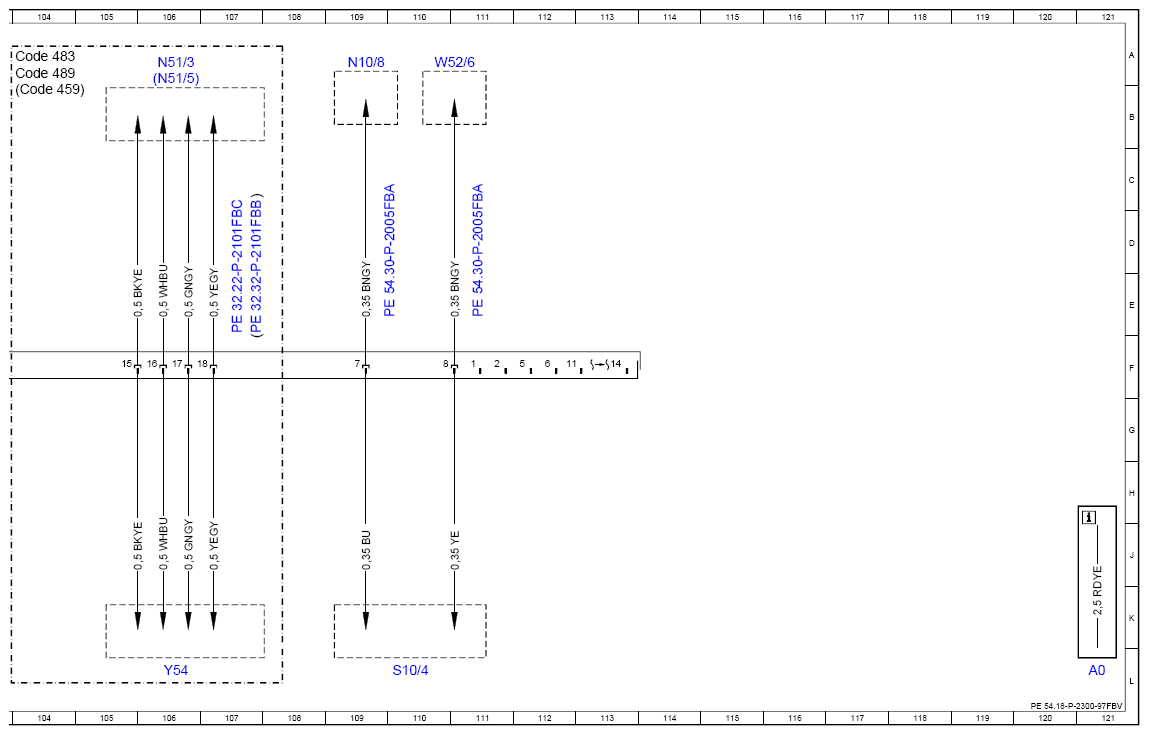

| Y54 | Right rear axle damping valve unit | 106L |
| Z14/1z1 | Microphone connector sleeve (+) | 52A |
| Z14/1z1 | Microphone connector sleeve (+) | 57A |
| Z14/2z1 | Microphone connector sleeve (-) | 54A |
| Z14/2z1 | Microphone connector sleeve (-) | 60A |
