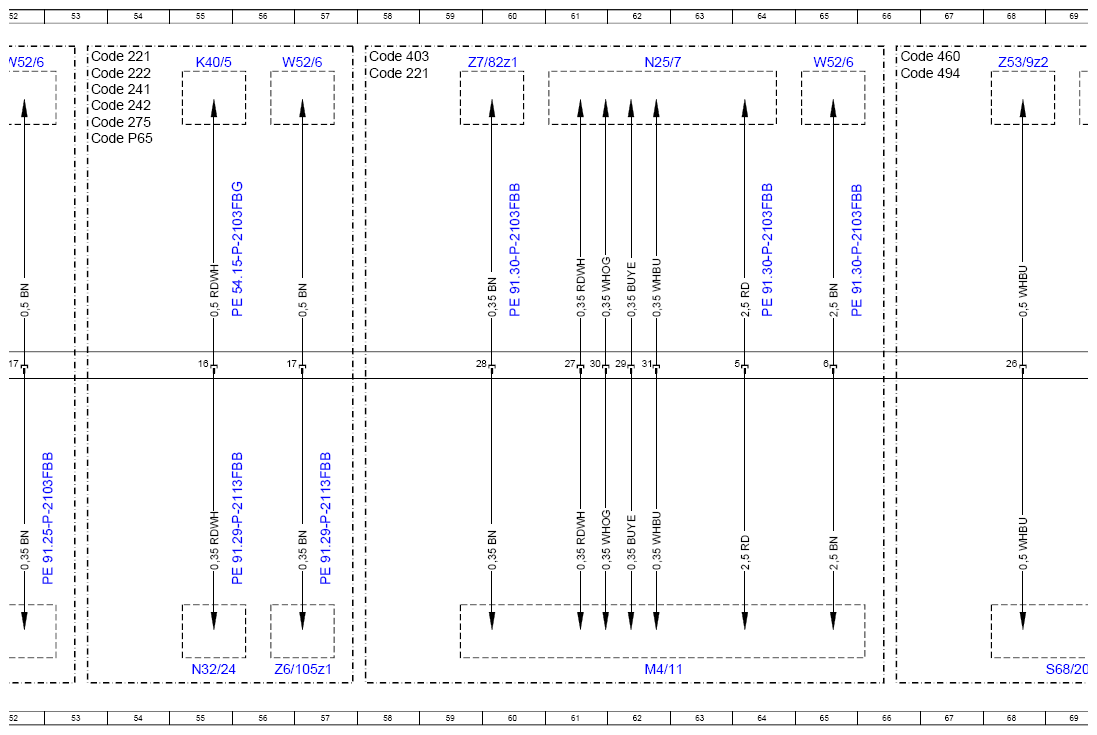

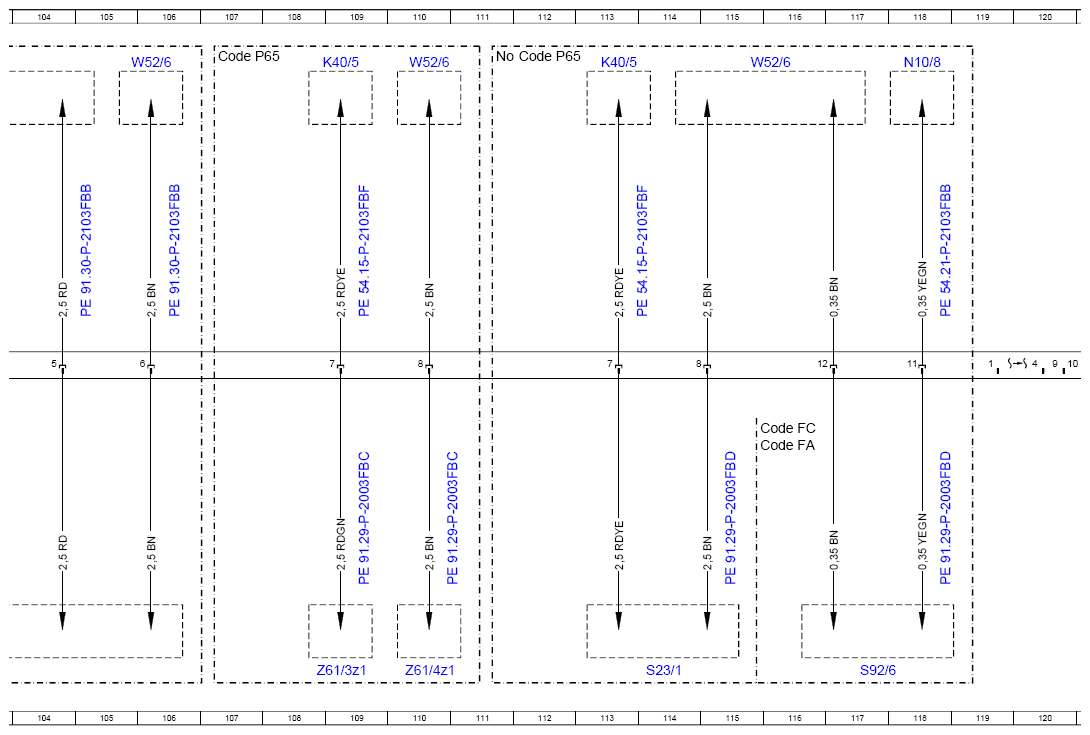

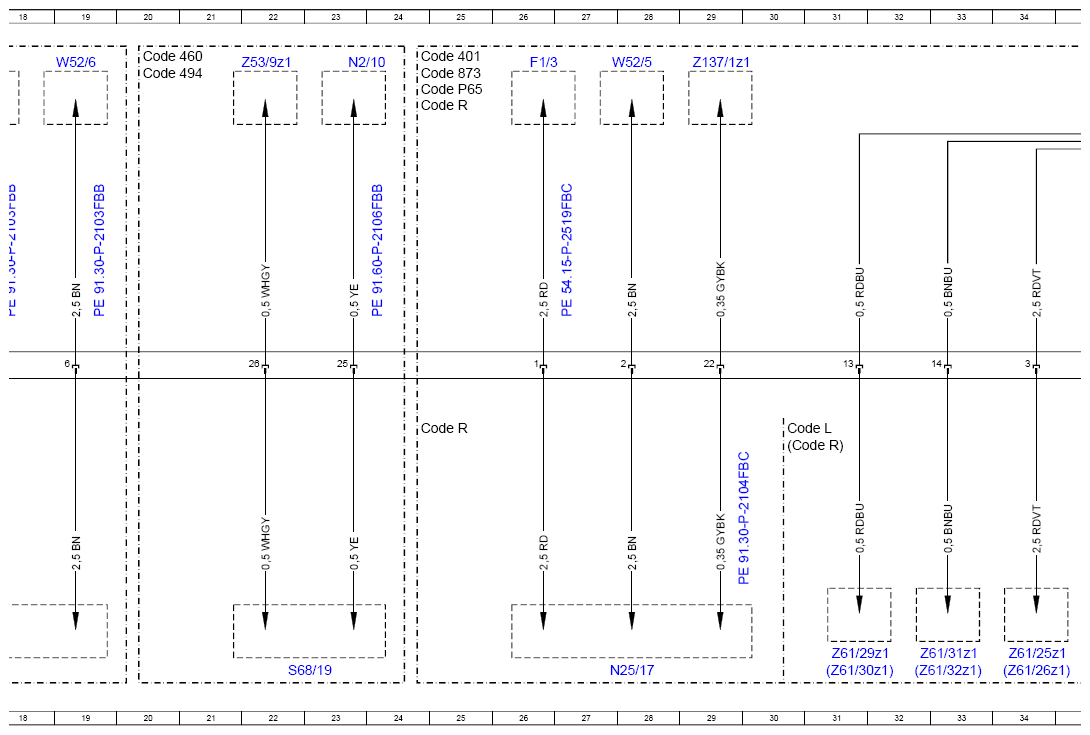

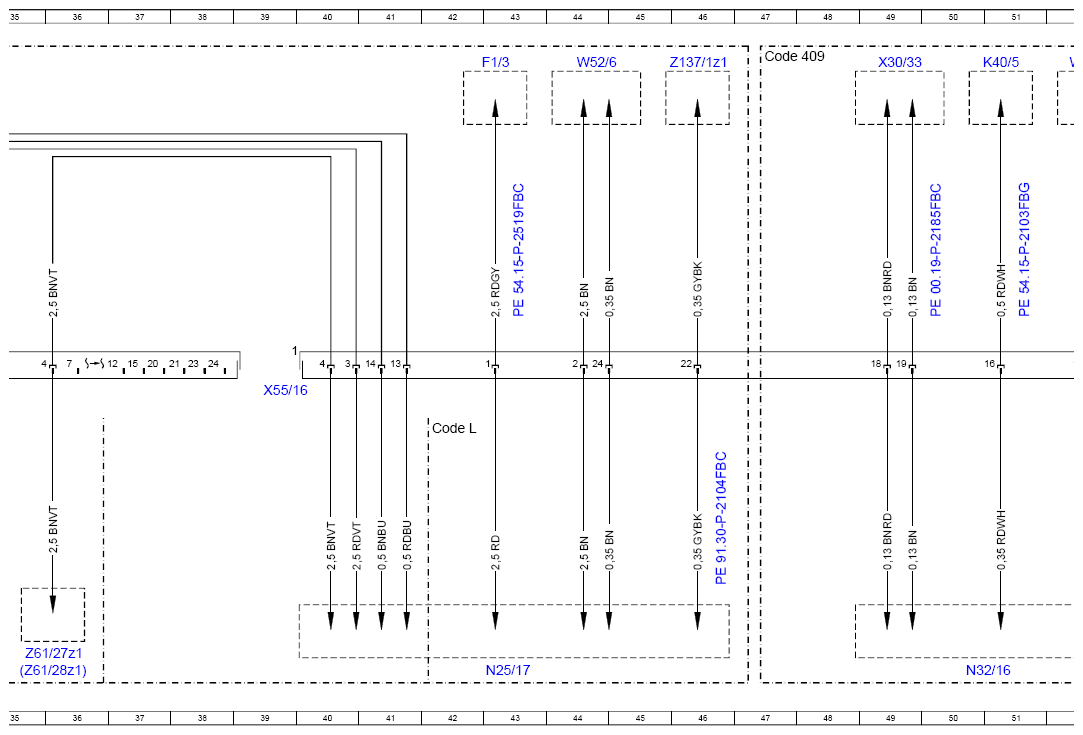

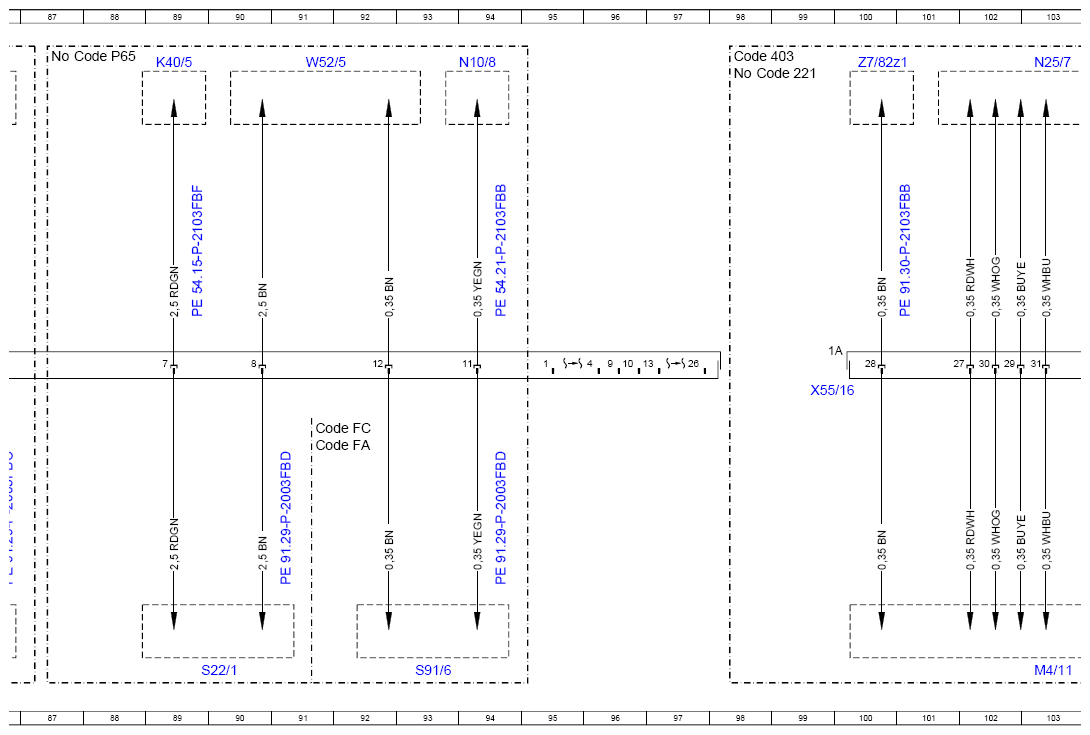

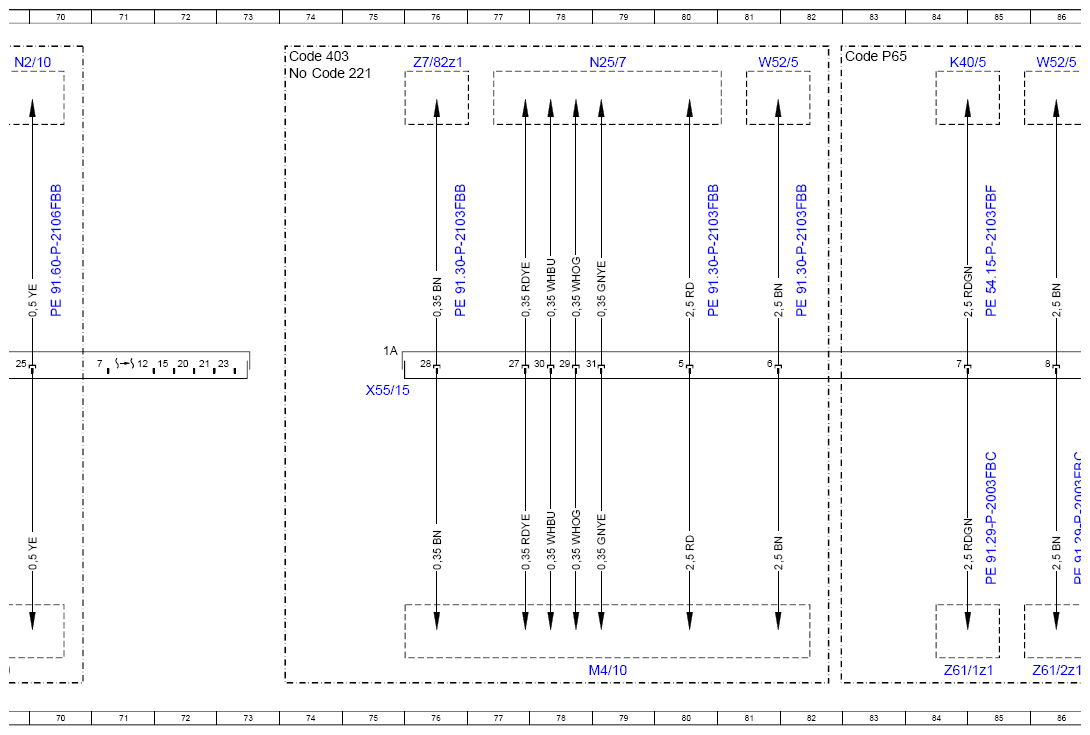

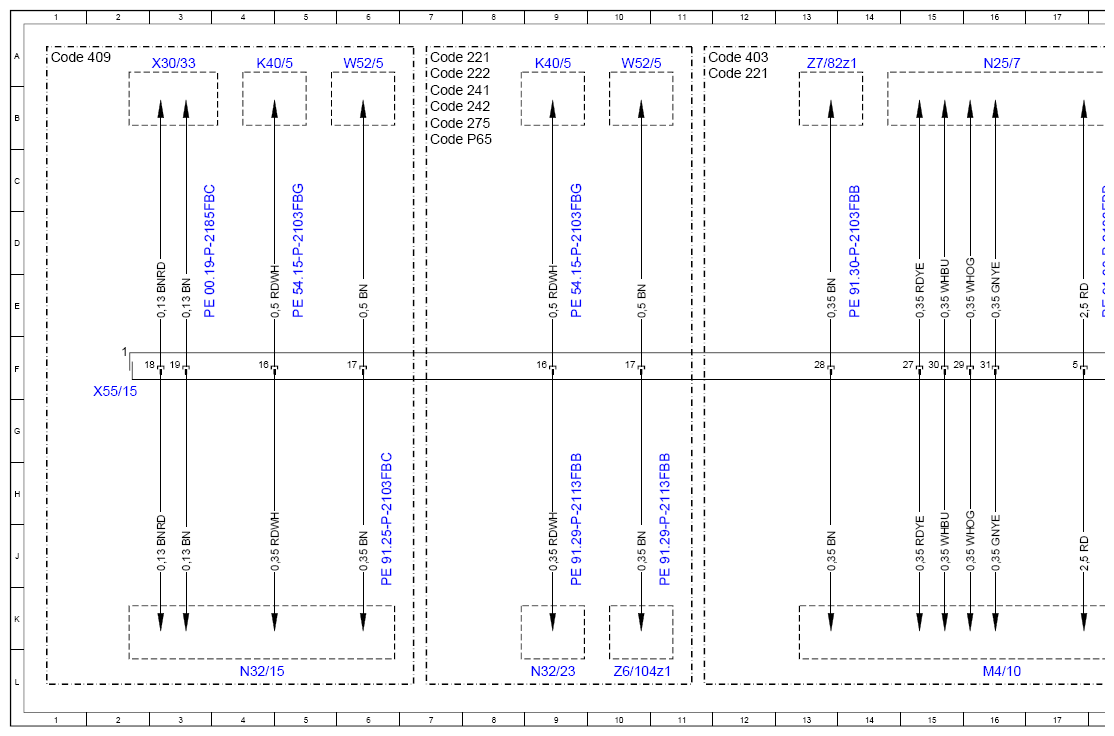

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBU
Model 205 as of model year 2019 X55/15, X55/16
| Code: | Designation: | Position: |
|---|---|---|

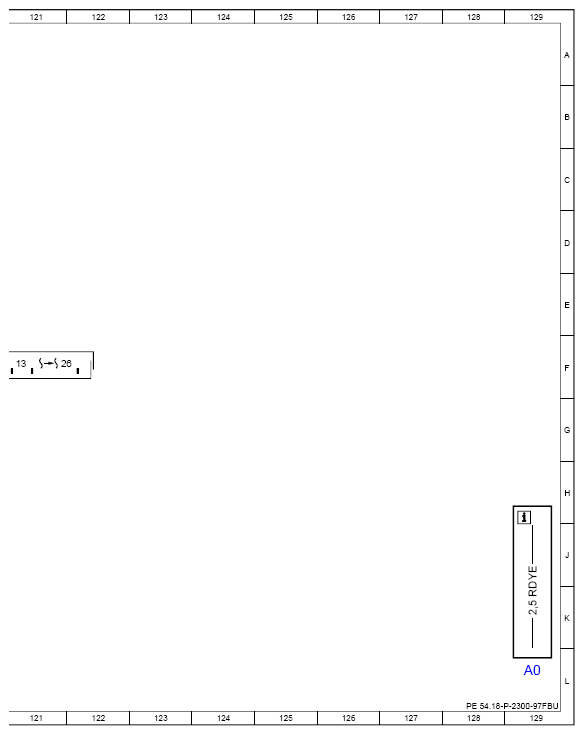

| A0 | Use of wiring diagrams | 129L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 11A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 7A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 53A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 58A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 74A |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 98A |
| Code 222 | Electrically adjustable right front seat | 7A |
| Code 222 | Electrically adjustable right front seat | 53A |
| Code 241 | All-electric front passenger seat with memory (left) | 7B |
| Code 241 | All-electric front passenger seat with memory (left) | 53B |
| Code 242 | All-electric front passenger seat with memory (right) | 7B |
| Code 242 | All-electric front passenger seat with memory (right) | 53B |
| Code 275 | Memory package | 7B |
| Code 275 | Memory package | 53B |
| Code 401 | Seat climate control for driver and front passenger | 24A |
| Code 403 | AIRSCARF system | 11A |
| Code 403 | AIRSCARF system | 58A |
| Code 403 | AIRSCARF system | 74A |
| Code 403 | AIRSCARF system | 98A |
| Code 409 | Multicontour seat package | 1A |
| Code 409 | Multicontour seat package | 47A |
| Code 460 | Canada version | 20A |
| Code 460 | Canada version | 66A |
| Code 494 | USA version | 20A |
| Code 494 | USA version | 66A |
| Code 873 | Seat heater for driver and front passenger | 24A |
| Code FA | CABRIOLET | 91G |
| Code FA | CABRIOLET | 115G |
| Code FC | COUPE | 91G |
| Code FC | COUPE | 115G |
| Code L | LEFT-HAND DRIVE | 30G |
| Code L | LEFT-HAND DRIVE | 42G |
| Code P65 | Seating comfort package | 24B |
| Code P65 | Seating comfort package | 7B |
| Code P65 | Seating comfort package | 53B |
| Code P65 | Seating comfort package | 83A |
| Code P65 | Seating comfort package | 87A |
| Code P65 | Seating comfort package | 107A |
| Code P65 | Seating comfort package | 112A |
| Code R | RIGHT-HAND DRIVE | 24G |
| Code R | RIGHT-HAND DRIVE | 30G |
| Code R | RIGHT-HAND DRIVE | 24B |
| F1/3 | Passenger-side A-pillar fuse box | 26A |
| F1/3 | Passenger-side A-pillar fuse box | 43A |
| K40/5 | Rear fuse and relay module | 9A |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 55A |
| K40/5 | Rear fuse and relay module | 51A |
| K40/5 | Rear fuse and relay module | 84A |
| K40/5 | Rear fuse and relay module | 89A |
| K40/5 | Rear fuse and relay module | 109A |
| K40/5 | Rear fuse and relay module | 113A |
| M4/10 | Left AIRSCARF fan motor | 16L |
| M4/10 | Left AIRSCARF fan motor | 79L |
| M4/11 | Right AIRSCARF fan motor | 62L |
| M4/11 | Right AIRSCARF fan motor | 103L |
| N10/8 | Rear SAM control unit | 94A |
| N10/8 | Rear SAM control unit | 118A |
| N2/10 | Supplemental restraint system control unit | 23A |
| N2/10 | Supplemental restraint system control unit | 69A |
| N25/17 | Front seat heater control unit | 28L |
| N25/17 | Front seat heater control unit | 43L |
| N25/7 | AIRSCARF control unit | 16A |
| N25/7 | AIRSCARF control unit | 62A |
| N25/7 | AIRSCARF control unit | 79A |
| N25/7 | AIRSCARF control unit | 103A |
| N32/15 | Left front multicontour seat control unit | 4L |
| N32/16 | Right front multicontour seat control unit | 50L |
| N32/23 | Driver seat lumbar support adjustment control unit | 9L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 55L |
| S22/1 | Driver seat partially electric seat adjustment switch | 90L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 114L |
| S68/19 | Driver seat position detection switch | 22L |
| S68/20 | Front passenger seat position detection switch | 69L |
| S91/6 | Left backrest release/inclination microswitch | 93L |
| S92/6 | Right backrest release/inclination microswitch | 117L |
| W52/5 | Left center longitudinal member ground point | 6A |
| W52/5 | Left center longitudinal member ground point | 10A |
| W52/5 | Left center longitudinal member ground point | 28A |
| W52/5 | Left center longitudinal member ground point | 86A |
| W52/5 | Left center longitudinal member ground point | 81A |
| W52/5 | Left center longitudinal member ground point | 91A |
| W52/6 | Right center longitudinal member ground point | 65A |
| W52/6 | Right center longitudinal member ground point | 19A |
| W52/6 | Right center longitudinal member ground point | 44A |
| W52/6 | Right center longitudinal member ground point | 52A |
| W52/6 | Right center longitudinal member ground point | 56A |
| W52/6 | Right center longitudinal member ground point | 106A |
| W52/6 | Right center longitudinal member ground point | 110A |
| W52/6 | Right center longitudinal member ground point | 115A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 3A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 49A |
| X55/15 | Driver seat electrical connector | 2F |
| X55/15 | Driver seat electrical connector | 75F |
| X55/16 | Front passenger seat electrical connector | 39F |
| X55/16 | Front passenger seat electrical connector | 99F |
| Z137/1z1 | Connector sleeve, heater LIN | 29A |
| Z137/1z1 | Connector sleeve, heater LIN | 46A |
| Z53/9z1 | Circuit 31 vehicle interior airbag connector sleeve | 22A |
| Z53/9z2 | Circuit 31 vehicle interior airbag connector sleeve | 68A |
| Z6/104z1 | Driver seat lumbar support ground line connector sleeve | 10L |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 56L |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 84L |
| Z61/25z1 | Driver seat heater supply connector sleeve | 34L |
| Z61/26z1 | Front passenger seat heater supply connector sleeve | 34L |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 35L |
| Z61/28z1 | Front passenger seat heater ground connection connector sleeve | 35L |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 31L |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 86L |
| Z61/30z1 | Front passenger seat ventilation supply connector sleeve | 31L |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 33L |
| Z61/32z1 | Front passenger seat ventilation ground connection connector sleeve | 33L |
| Z61/3z1 | Right front seat circuit 30 connector sleeve | 109L |
| Z61/4z1 | Right front seat circuit 31 connector sleeve | 110L |
| Z7/82z1 | Circuit 31 connector sleeve | 13A |
| Z7/82z1 | Circuit 31 connector sleeve | 59A |
| Z7/82z1 | Circuit 31 connector sleeve | 76A |
| Z7/82z1 | Circuit 31 connector sleeve | 100A |
