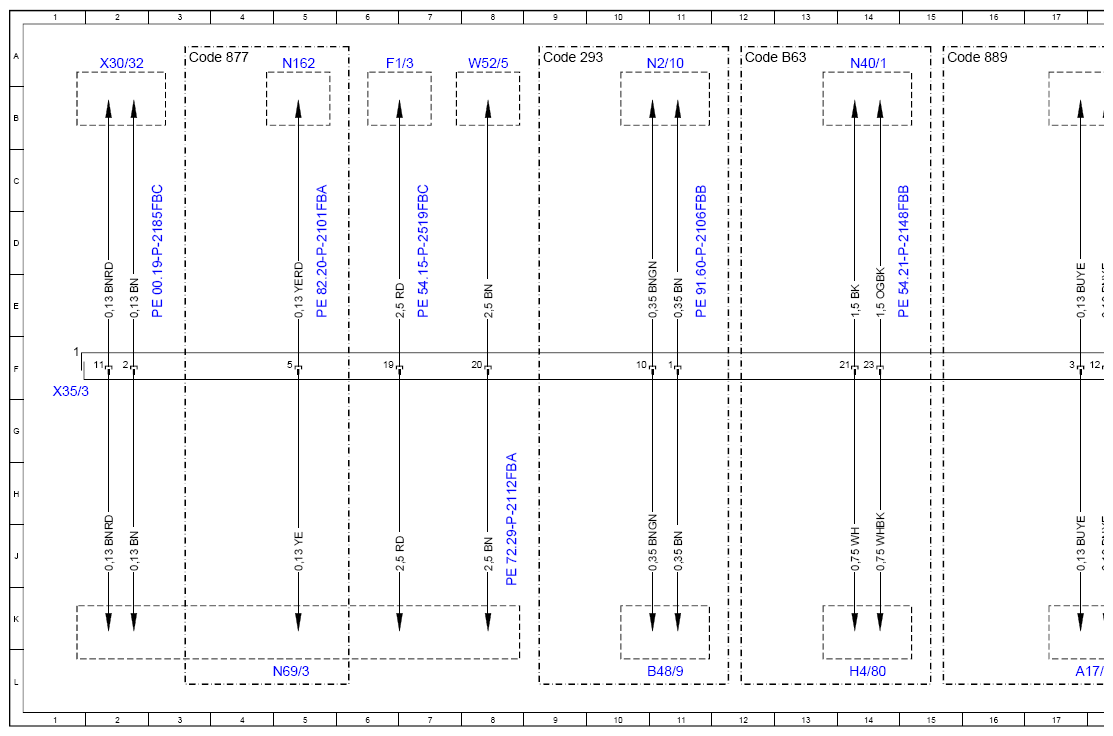

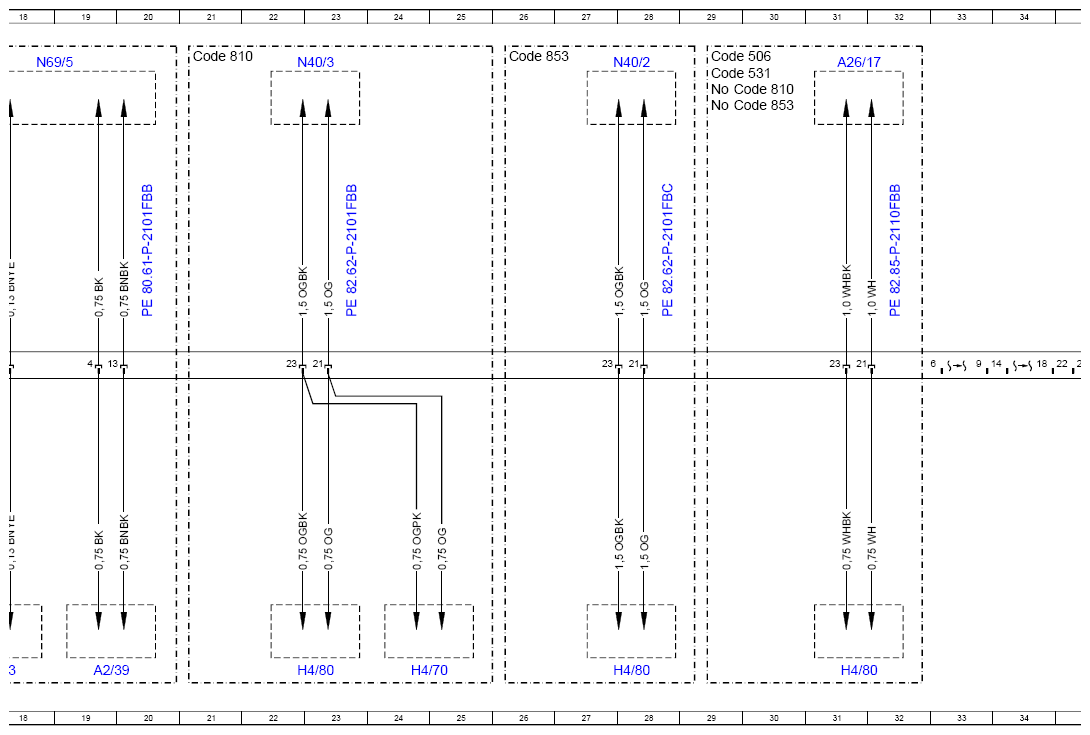

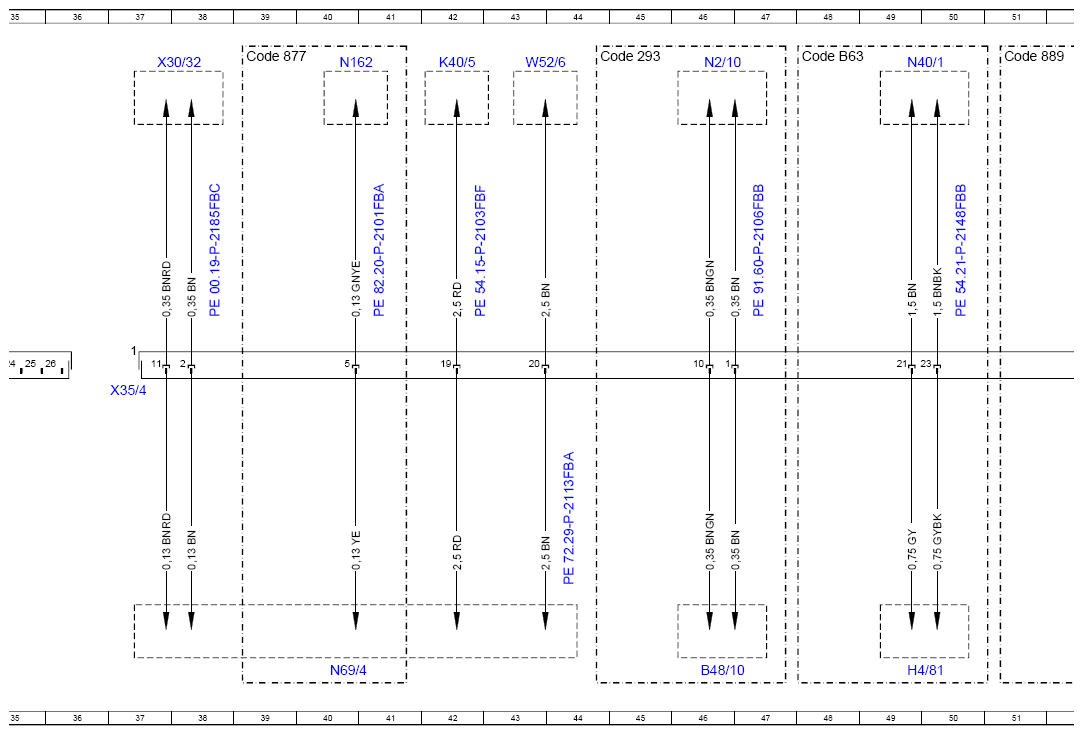

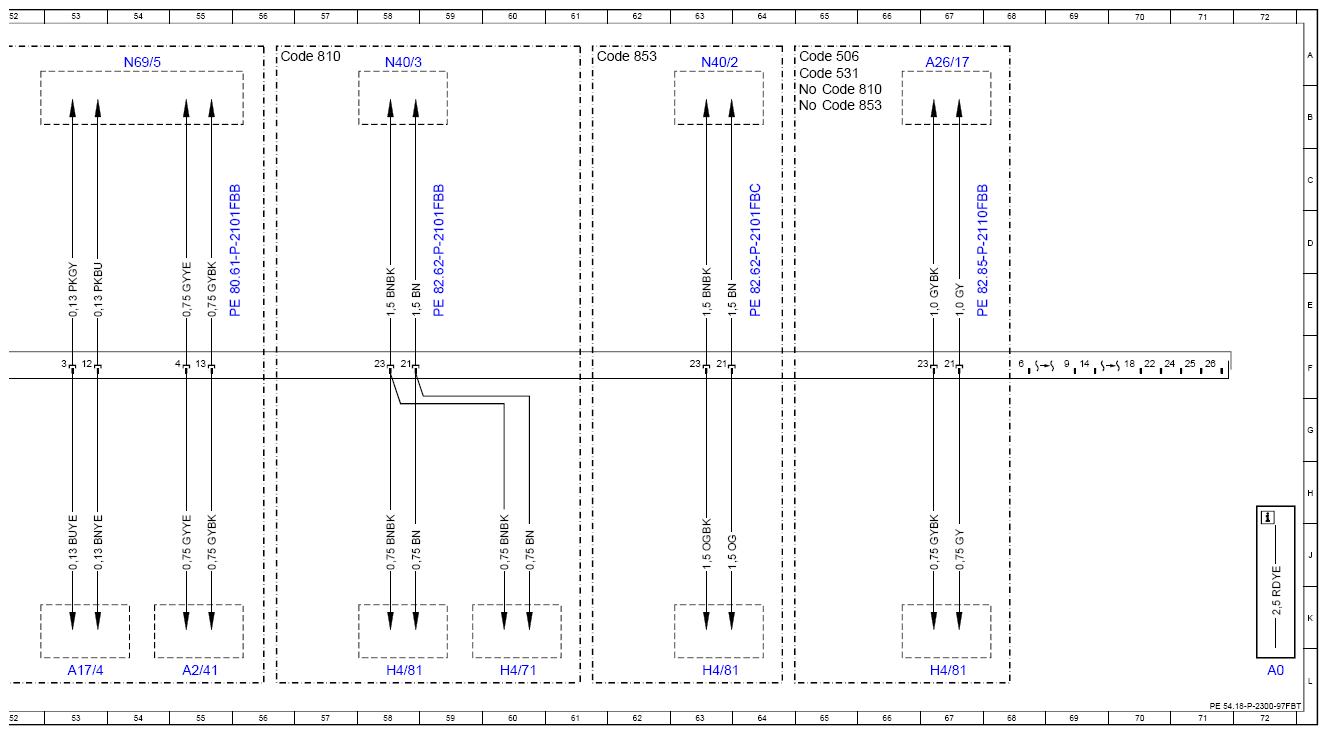

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBT
Model 205 as of model year 2019 X35/3, X35/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A17/3 | Left rear KEYLESS GO door handle | 17L |
| A17/4 | Right rear KEYLESS GO door handle | 53L |
| A2/39 | Left rear door KEYLESS GO antenna | 19L |
| A2/41 | Right rear door KEYLESS GO antenna | 55L |
| A26/17 | Head unit | 31A |
| A26/17 | Head unit | 67A |
| B48/10 | Right rear door pressure sensor | 46L |
| B48/9 | Left rear door pressure sensor | 11L |
| Code 293 | Left and right rear sidebag | 9A |
| Code 293 | Left and right rear sidebag | 44A |
| Code 506 | Audio 20 NTG 5.5 radio | 29A |
| Code 506 | Audio 20 NTG 5.5 radio | 65A |
| Code 531 | COMAND APS | 29A |
| Code 531 | COMAND APS | 65A |
| Code 810 | Sound system | 21A |
| Code 810 | Sound system | 29B |
| Code 810 | Sound system | 56A |
| Code 810 | Sound system | 65B |
| Code 853 | Midline sound system | 29B |
| Code 853 | Midline sound system | 26A |
| Code 853 | Midline sound system | 65B |
| Code 853 | Midline sound system | 61A |
| Code 877 | Ambiance illumination | 3A |
| Code 877 | Ambiance illumination | 39A |
| Code 889 | KEYLESS-GO | 15A |
| Code 889 | KEYLESS-GO | 51A |
| Code B63 | AMG eSound | 12A |
| Code B63 | AMG eSound | 48A |
| F1/3 | Passenger-side A-pillar fuse box | 6A |
| H4/70 | Left rear door/side paneling tweeter | 24L |
| H4/71 | Right rear door/side paneling tweeter | 60L |
| H4/80 | Left rear door/side paneling midrange speaker | 14L |
| H4/80 | Left rear door/side paneling midrange speaker | 23L |
| H4/80 | Left rear door/side paneling midrange speaker | 28L |
| H4/80 | Left rear door/side paneling midrange speaker | 31L |
| H4/81 | Right rear door/side paneling midrange speaker | 49L |
| H4/81 | Right rear door/side paneling midrange speaker | 58L |
| H4/81 | Right rear door/side paneling midrange speaker | 63L |
| H4/81 | Right rear door/side paneling midrange speaker | 67L |
| K40/5 | Rear fuse and relay module | 42A |
| N162 | Ambiance illumination control unit | 5A |
| N162 | Ambiance illumination control unit | 40A |
| N2/10 | Supplemental restraint system control unit | 11A |
| N2/10 | Supplemental restraint system control unit | 46A |
| N40/1 | Engine sound control unit | 14A |
| N40/1 | Engine sound control unit | 49A |
| N40/2 | Sound system midline amplifier control unit | 28A |
| N40/2 | Sound system midline amplifier control unit | 63A |
| N40/3 | Sound system amplifier control unit | 23A |
| N40/3 | Sound system amplifier control unit | 58A |
| N69/3 | Left rear door control unit | 5L |
| N69/4 | Right rear door control unit | 40L |
| N69/5 | KEYLESS-GO control unit | 18A |
| N69/5 | KEYLESS-GO control unit | 54A |
| W52/5 | Left center longitudinal member ground point | 8A |
| W52/6 | Right center longitudinal member ground point | 43A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 2A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 37A |
| X35/3 | Left rear door electrical connector | 1F |
| X35/4 | Right rear door electrical connector | 37F |
