Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBR
Model 205 as of model year 2019 X26/10, X26/38, X26/40
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A101 | Fuel tank diagnostic module | 18L |
| A108 | Active Brake Assist controller unit | 66L |
| A9 | Refrigerant compressor | 31L |
| B151/1 | Left front bumper pedestrian protection sensor | 47L |
| B151/1 | Left front bumper pedestrian protection sensor | 49L |
| B8/1 | Outer left front parking system distance sensor | 52L |
| B8/10 | Outer left rear parking system distance sensor | 122A |
| B8/11 | Center left rear parking system distance sensor | 115A |
| B8/12 | Center right rear parking system distance sensor | 124A |
| B8/2 | Center left front parking system distance sensor | 53L |
| B8/3 | Inner left front parking system distance sensor | 55L |
| B8/4 | Inner right front parking system distance sensor | 59L |
| B8/5 | Center right front parking system distance sensor | 60L |
| B8/6 | Outer right front parking system distance sensor | 62L |
| B8/7 | Outer right rear parking system distance sensor | 121A |
| B8/8 | Inner right rear parking system distance sensor | 114A |
| B8/9 | Inner left rear parking system distance sensor | 117A |
| Code 22P | Track package | 84A |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 76A |
| Code 234 | Blind Spot Assist (BSM) | 84A |
| Code 235 | Active Park Assist | 50A |
| Code 235 | Active Park Assist | 112A |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 63A |
| Code 460 | Canada version | 15G |
| Code 460 | Canada version | 97A |
| Code 466 | Active engine mount | 1G |
| Code 466 | Active engine mount | 32G |
| Code 494 | USA version | 15G |
| Code 494 | USA version | 97A |
| Code 830 | Additional parts for China vehicles | 15H |
| Code 835 | Additional parts for South Korea vehicles | 15H |
| Code 871 | Sensor system for trunk lid opening/closing | 91A |
| Code 889 | KEYLESS-GO | 91A |
| Code 945 | China Stage 6 exhaust treatment | 15H |
| Code FA | CABRIOLET | 106A |
| Code FC | COUPE | 106A |
| Code FS | STATION WAGON | 100A |
| Code FW | SEDAN | 100A |
| Code L | LEFT-HAND DRIVE | 6L |
| Code L | LEFT-HAND DRIVE | 22L |
| Code M177 | SPARK-IGNITION ENGINE M177 | 1A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 69A |
| Code P23 | EXCLUSIVE Exterior | 63A |
| Code R | RIGHT-HAND DRIVE | 6L |
| Code R | RIGHT-HAND DRIVE | 22L |
| Code U16 | Exhaust system with acoustic flap | 106B |
| Code U16 | Exhaust system with acoustic flap | 100B |
| Code U21 | AMG Performance exhaust system | 106B |
| Code U21 | AMG Performance exhaust system | 100B |
| Code U60 | Pedestrian protection | 45A |
| Code U78 | Switchable exhaust system | 69A |
| K40/5 | Rear fuse and relay module | 96A |
| N10/8 | Rear SAM control unit | 65A |
| N10/8 | Rear SAM control unit | 98L |
| N10/8 | Rear SAM control unit | 86A |
| N10/8 | Rear SAM control unit | 78A |
| N118 | Fuel pump control unit | 13L |
| N127 | Drivetrain control unit | 11L |
| N127 | Drivetrain control unit | 102A |
| N127 | Drivetrain control unit | 108A |
| N2/10 | Supplemental restraint system control unit | 14L |
| N2/10 | Supplemental restraint system control unit | 48A |
| N3/10 | ME-SFI [ME] control unit | 6A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 17A |
| N3/10 | ME-SFI [ME] control unit | 21A |
| N3/10 | ME-SFI [ME] control unit | 40A |
| N3/42 | Active engine mounts control unit | 3L |
| N3/42 | Active engine mounts control unit | 35L |
| N38 | Rear switching module | 94L |

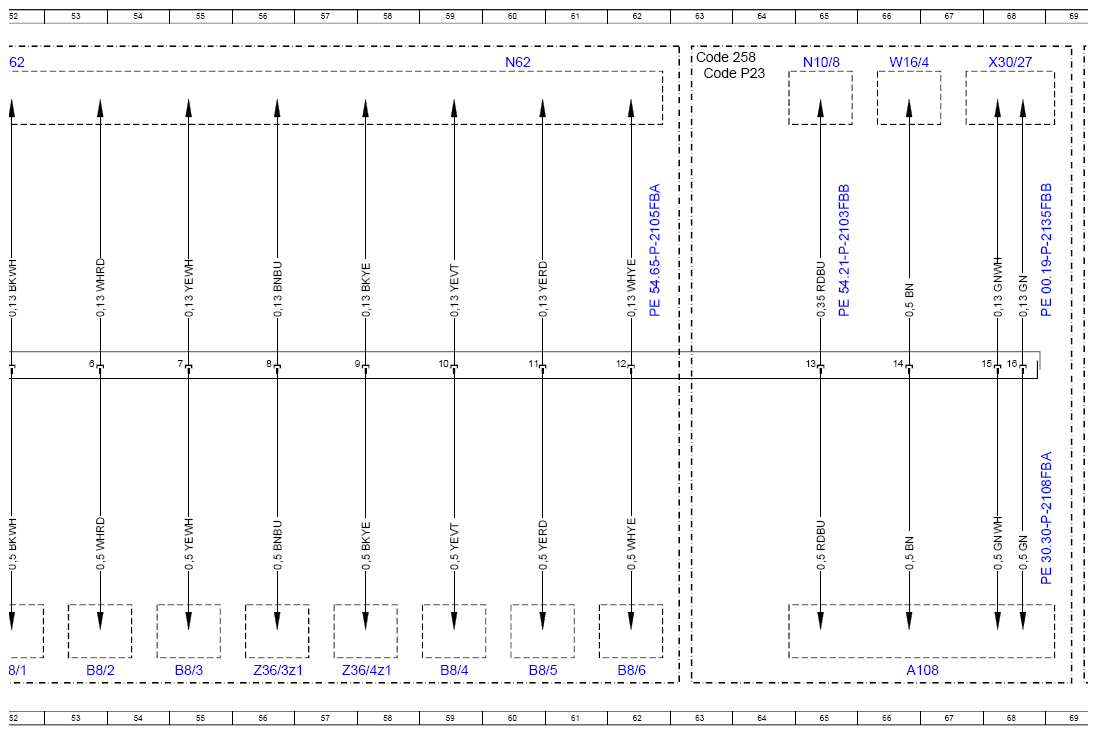

| N62 | Parking system control unit | 52A |
| N62 | Parking system control unit | 60A |
| N62 | Parking system control unit | 115L |
| N62 | Parking system control unit | 120L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 82A |
| N69/5 | KEYLESS-GO control unit | 93A |
| W1/1 | Combustion engine ground point | 24A |
| W16/4 | Right major assembly compartment ground point | 66A |
| W16/5 | Left major assembly compartment electronics ground point | 7L |
| W16/5 | Left major assembly compartment electronics ground point | 23L |
| W16/7 | Right major assembly compartment electronics ground point | 7L |
| W16/7 | Right major assembly compartment electronics ground point | 23L |
| W3/8 | Right rear wheel well ground point | 75A |
| W3/8 | Right rear wheel well ground point | 80A |
| W3/8 | Right rear wheel well ground point | 87A |
| W3/8 | Right rear wheel well ground point | 94A |
| W3/8 | Right rear wheel well ground point | 103A |
| W3/8 | Right rear wheel well ground point | 110A |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 31A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 21L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 29L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 25L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 39L |

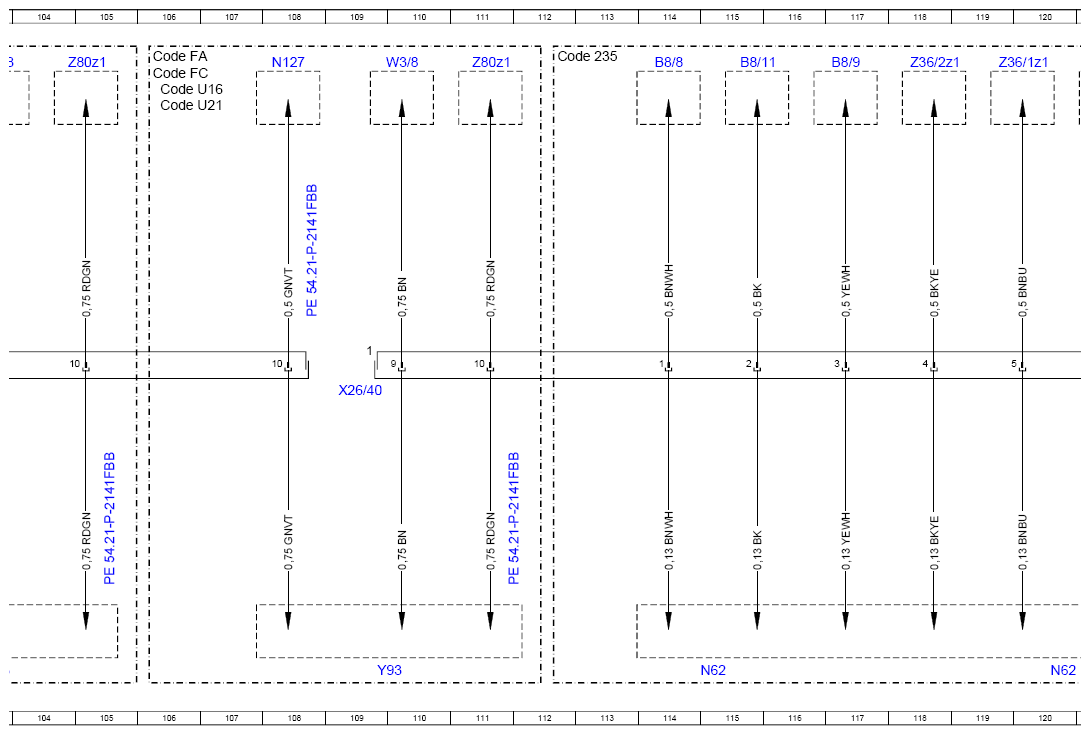

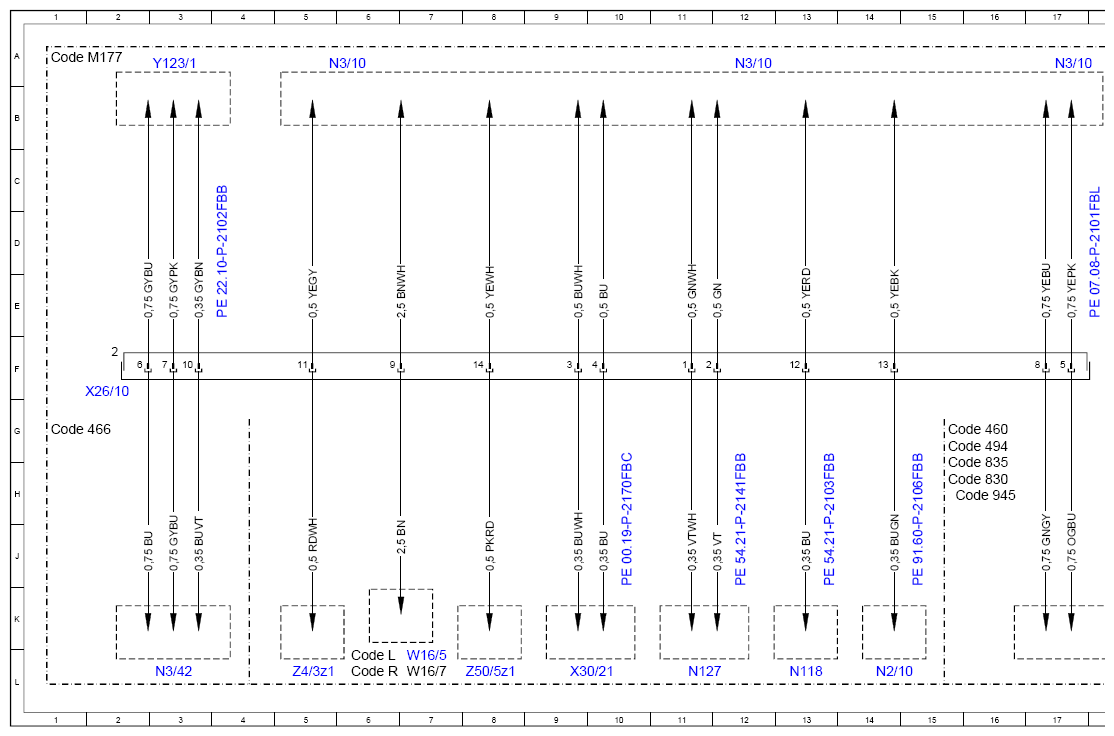

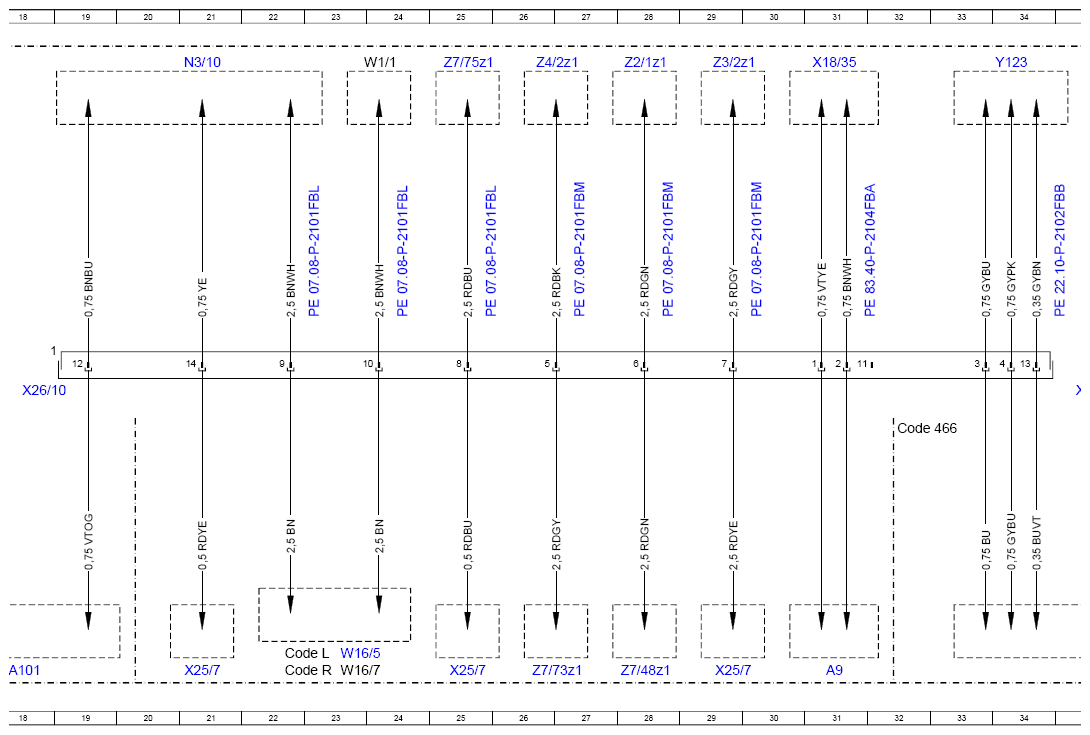

| X26/10 | Vehicle interior/engine electrical connector | 2F |
| X26/10 | Vehicle interior/engine electrical connector | 18F |
| X26/10 | Vehicle interior/engine electrical connector | 35F |

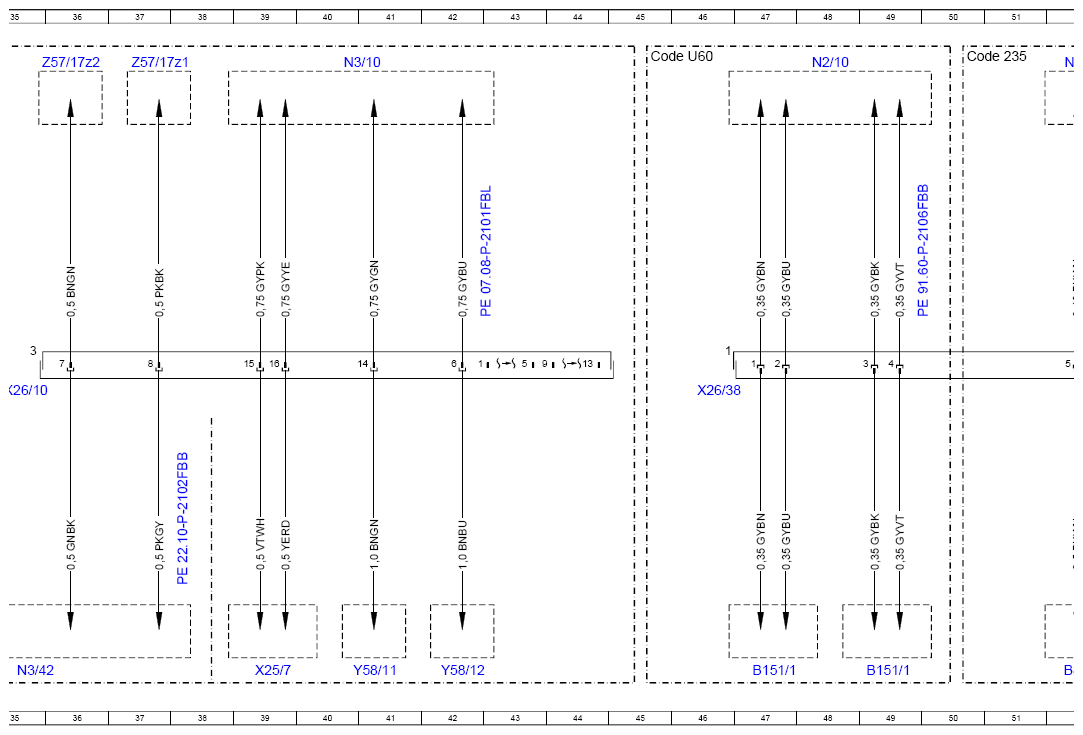

| X26/38 | Front bumper and frame wiring harness electrical connector | 46F |

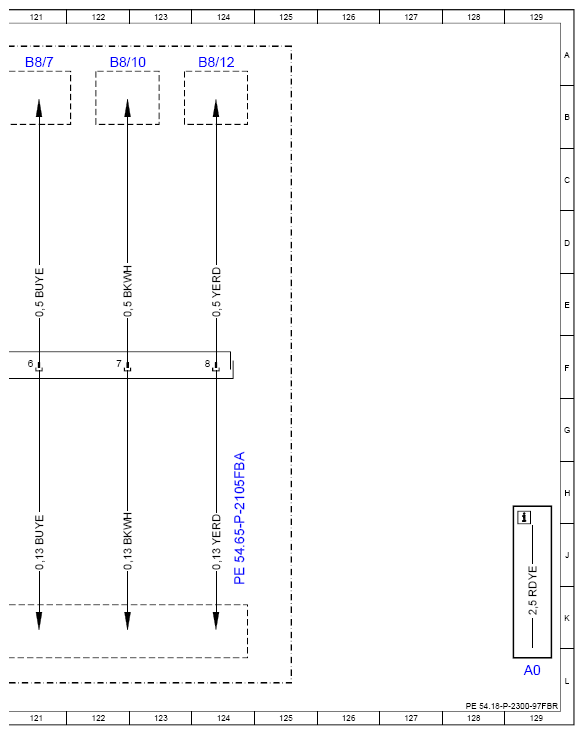

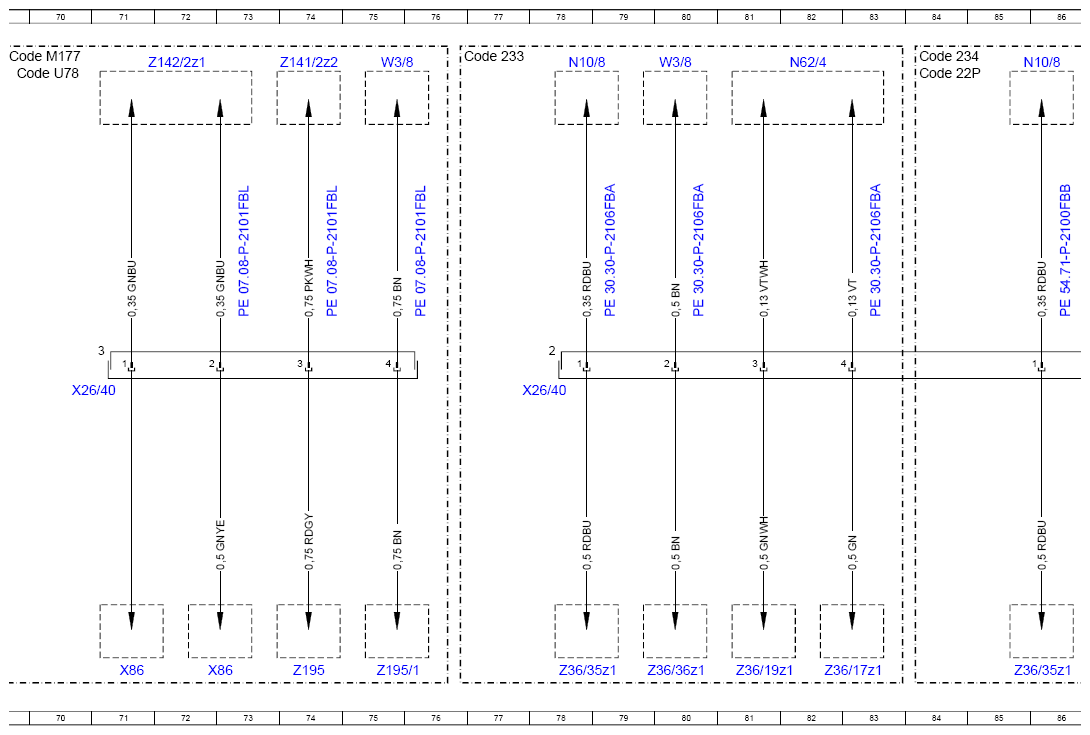

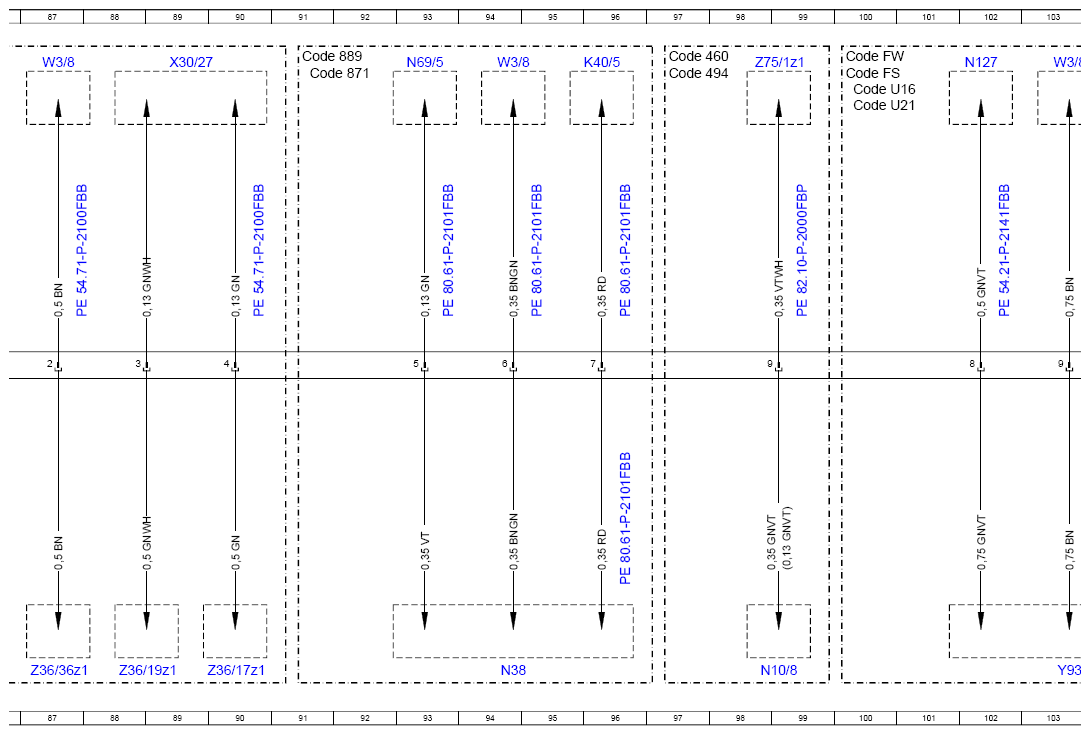

| X26/40 | Rear frame floor assembly/bumper electrical connector | 71F |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 78F |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 109F |
| X30/21 | Drivetrain CAN (CAN C1) potential distributor electrical connector | 9L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 68A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 89A |
| X86 | Exhaust flap electrical connector | 72L |
| X86 | Exhaust flap electrical connector | 71L |
| Y123 | Left active engine mount | 34A |
| Y123/1 | Right active engine mount | 3A |
| Y58/11 | Left purge control valve | 41L |
| Y58/12 | Right purge control valve | 42L |
| Y93 | Exhaust flap switchover valve | 103L |
| Y93 | Exhaust flap switchover valve | 109L |
| Z141/2z2 | Circuit 87C connector sleeve | 74A |
| Z142/2z1 | Exhaust gas LIN end sleeve | 72A |
| Z195 | Exhaust flap terminal 87/4 connector sleeve | 74L |
| Z195/1 | Exhaust flap ground connection connector sleeve | 75L |
| Z2/1z1 | Terminal 87/2 | 28A |
| Z3/2z1 | Circuit 87/3 connector sleeve | 29A |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 82L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 90L |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 81L |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 88L |
| Z36/1z1 | Rear parking system sensors ground line connector sleeve | 119A |
| Z36/2z1 | Rear parking system sensors power supply connector sleeve | 118A |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 85L |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 78L |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 80L |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 87L |
| Z36/3z1 | Front parking system sensors ground line connector sleeve | 56L |
| Z36/4z1 | Front parking system sensors positive line connector sleeve | 57L |
| Z4/2z1 | Terminal 87/4 | 26A |
| Z4/3z1 | Tml. 30 connector sleeve | 5L |
| Z50/5z1 | Tml. 15 connector sleeve | 8L |
| Z57/17z1 | Engine mount connector sleeve | 37A |
| Z57/17z2 | Engine mount connector sleeve | 36A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 28L |
| Z7/73z1 | Circuit 87/4 connector sleeve | 26L |
| Z7/75z1 | Circuit 87/3 connector sleeve | 25A |
| Z75/1z1 | License plate lamp connector sleeve | 98A |
| Z80z1 | Cross section reduction connector sleeve | 105A |
| Z80z1 | Cross section reduction connector sleeve | 111A |
