Wiring Diagram For Left Fuse And Relay Box - PE54.15-P-2101-97FBA
Model 205 up to model year 2019 Fuse and relay box K40/6 Model 253 (except 253.99) up to model year 2020 Fuse and relay box K40/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A1 | Instrument cluster | 70L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 7L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 15L |
| A50/6 | Dedicated Short-Range Communications control unit | 51L |
| A70/1 | Analog clock | 25L |
| Code 238 | Active Lane Keeping Assist | 84F |
| Code 344 | Antenna preinstallation for taxi | 5F |
| Code 344 | Antenna preinstallation for taxi | 14F |
| Code 360 | HERMES UMTS | 5F |
| Code 360 | HERMES UMTS | 14G |
| Code 362 | HERMES LTE | 5G |
| Code 362 | HERMES LTE | 14G |
| Code 386 | Comfort telephony | 5G |
| Code 386 | Comfort telephony | 14G |
| Code 425 | 6-speed manual transmission | 97F |
| Code 476 | Lane Keeping Assist | 84F |
| Code 498 | Japan version | 49F |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 88F |
| Code 882 | Interior protection and tow-away protection | 88F |
| Code 970 | Police emergency vehicles | 56F |
| Code 970 | Police emergency vehicles | 53A |
| Code 9U1 | ECALL RUSSIA (GLONASS) preinstallation | 10F |
| Code B24 | Radio remote control for stationary heater | 5G |
| Code B24 | Radio remote control for stationary heater | 14G |
| Code E64 | ECALL RUSSIA (GLONASS) | 10F |
| Code P21 | AIR-BALANCE package | 42H |
| Code U10 | SBE - Seat occupancy recognition | 27H |
| Code Z97 | Electronic interface | 53F |
| E13/1 | Glove box lamp | 37L |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f6 | Fuse 6 | 1K |
| F80/1 | Special-purpose vehicle fuse block 1 | 58L |
| H3/1 | Alarm siren | 91L |
| K40/6 | Left fuse and relay module | 4A |
| K40/6 | Left fuse and relay module | 11A |
| K40/6 | Left fuse and relay module | 22A |
| K40/6 | Left fuse and relay module | 30A |
| K40/6 | Left fuse and relay module | 37A |
| K40/6 | Left fuse and relay module | 44A |
| K40/6 | Left fuse and relay module | 52A |
| K40/6 | Left fuse and relay module | 60A |
| K40/6 | Left fuse and relay module | 71A |
| K40/6 | Left fuse and relay module | 77A |
| K40/6 | Left fuse and relay module | 84A |
| K40/6 | Left fuse and relay module | 93A |
| K40/6 | Left fuse and relay module | 101A |
| K40/6 | Left fuse and relay module | 108A |

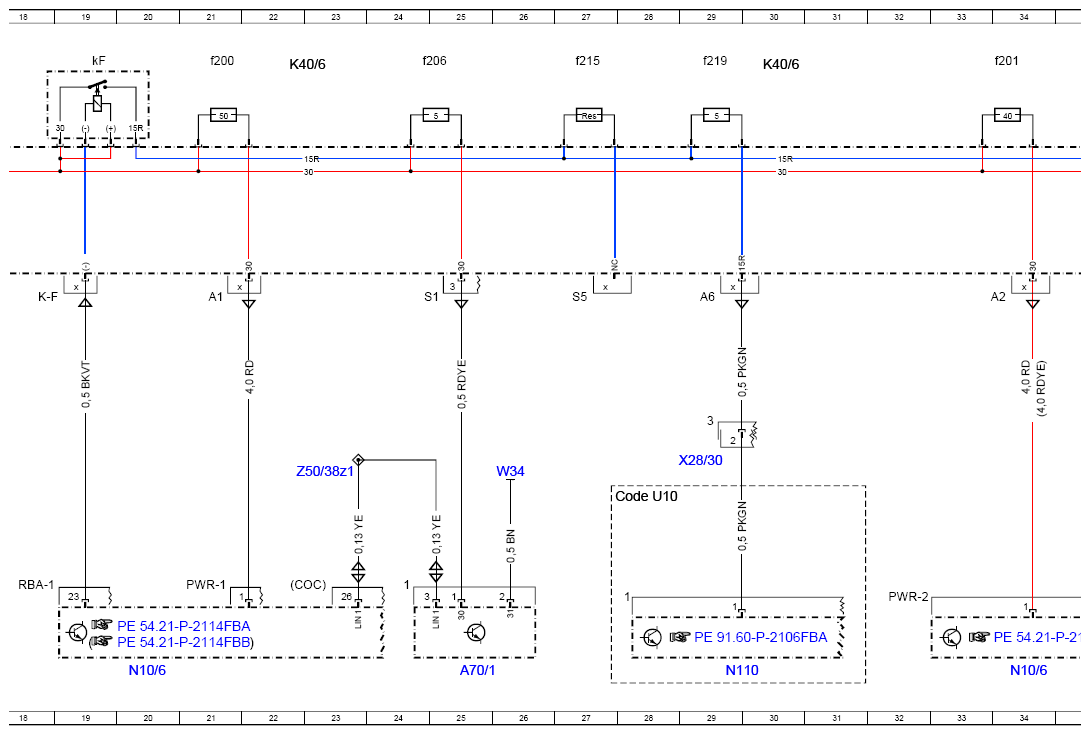

| K40/6f200 | Fuse 200 | 21A |
| K40/6f201 | Fuse 201 | 34A |

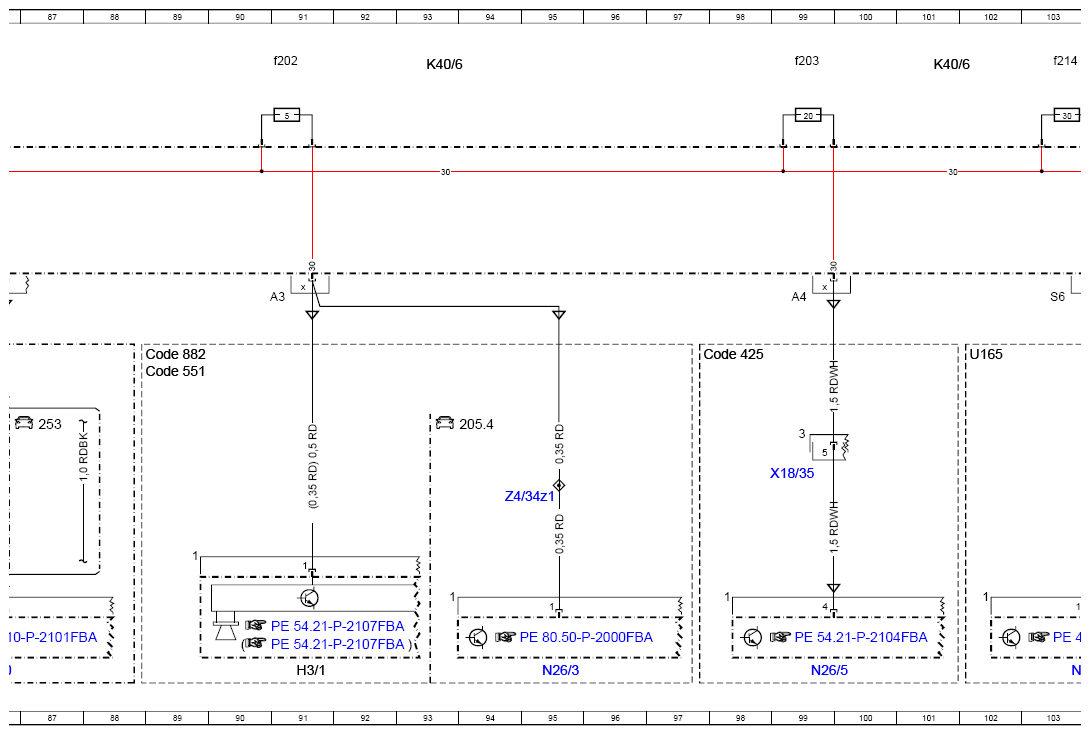

| K40/6f202 | Fuse 202 | 91A |
| K40/6f203 | Fuse 203 | 99A |

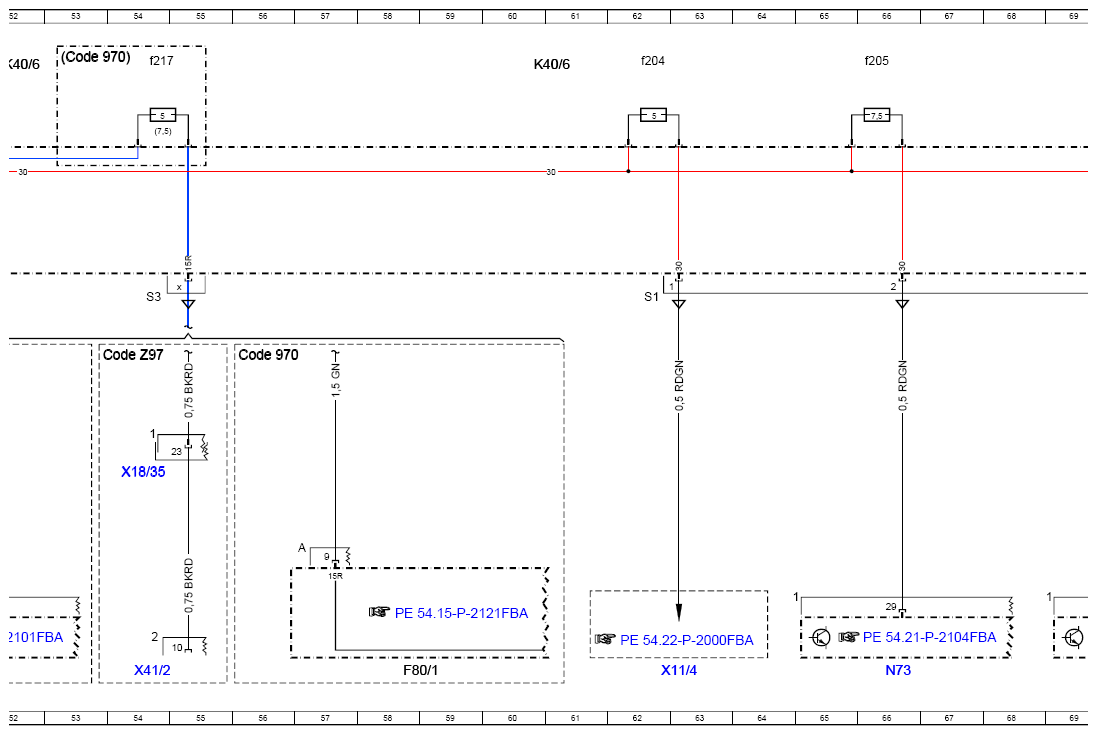

| K40/6f204 | Fuse 204 | 62A |
| K40/6f205 | Fuse 205 | 66A |
| K40/6f206 | Fuse 206 | 24A |
| K40/6f207 | Fuse 207 | 82A |

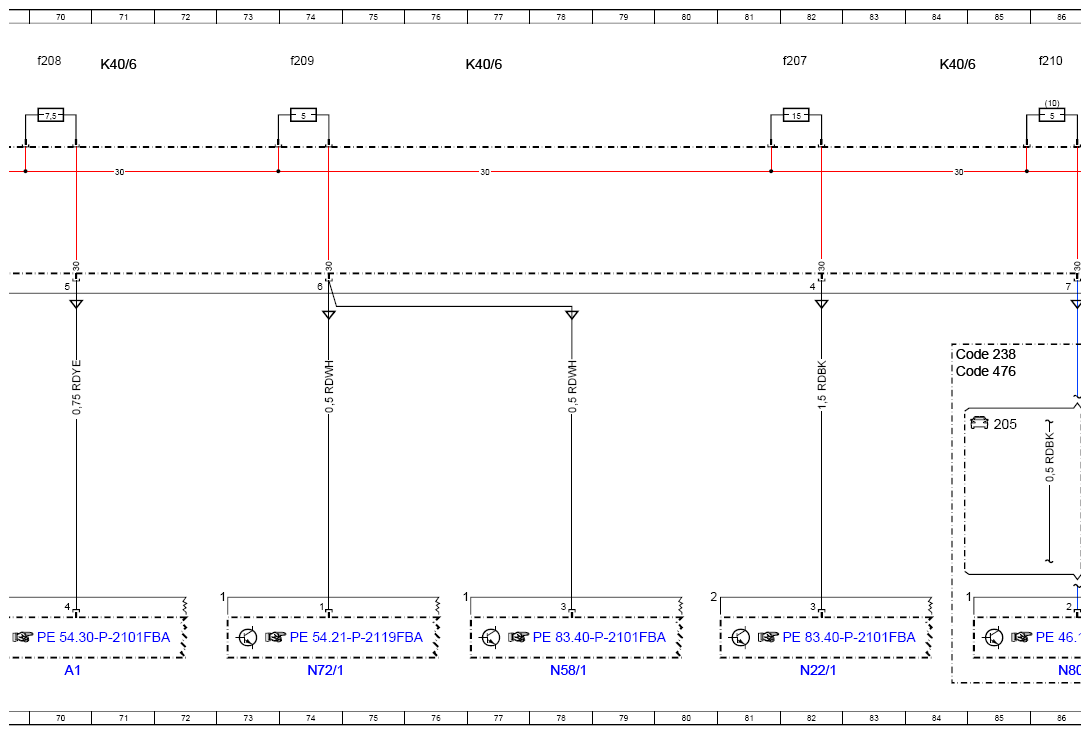

| K40/6f208 | Fuse 208 | 70A |
| K40/6f209 | Fuse 209 | 74A |
| K40/6f210 | Fuse 210 | 86A |

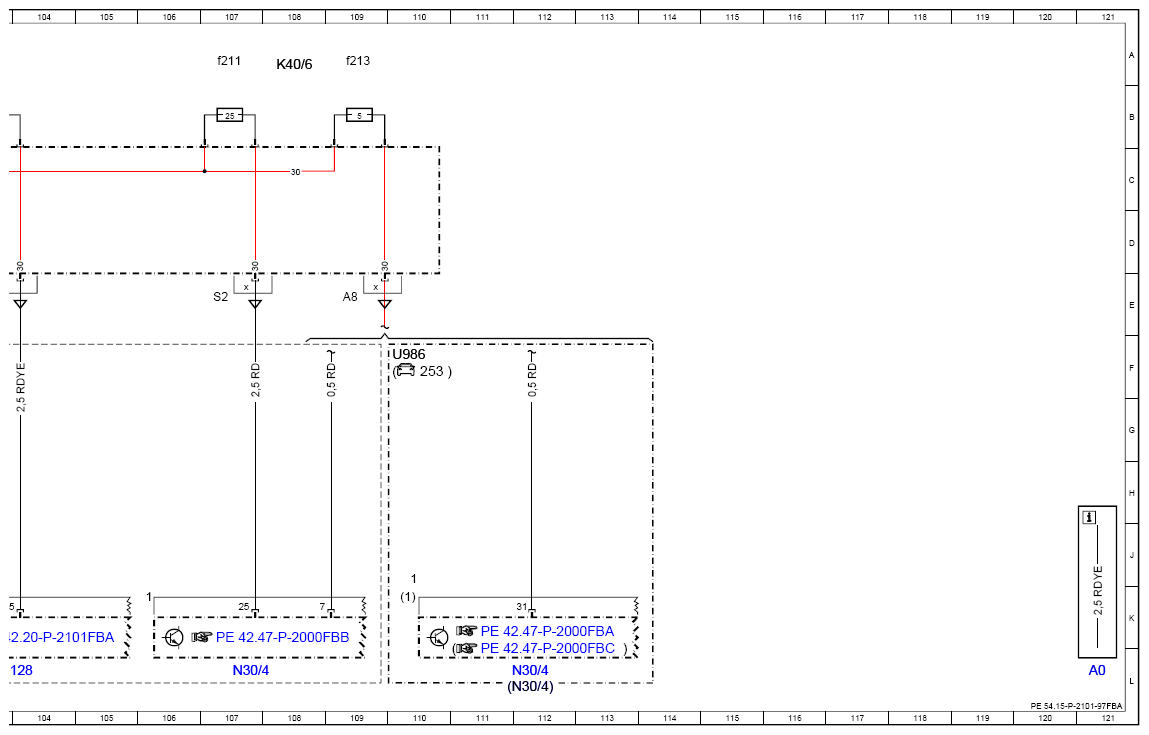

| K40/6f211 | Fuse 211 | 107A |

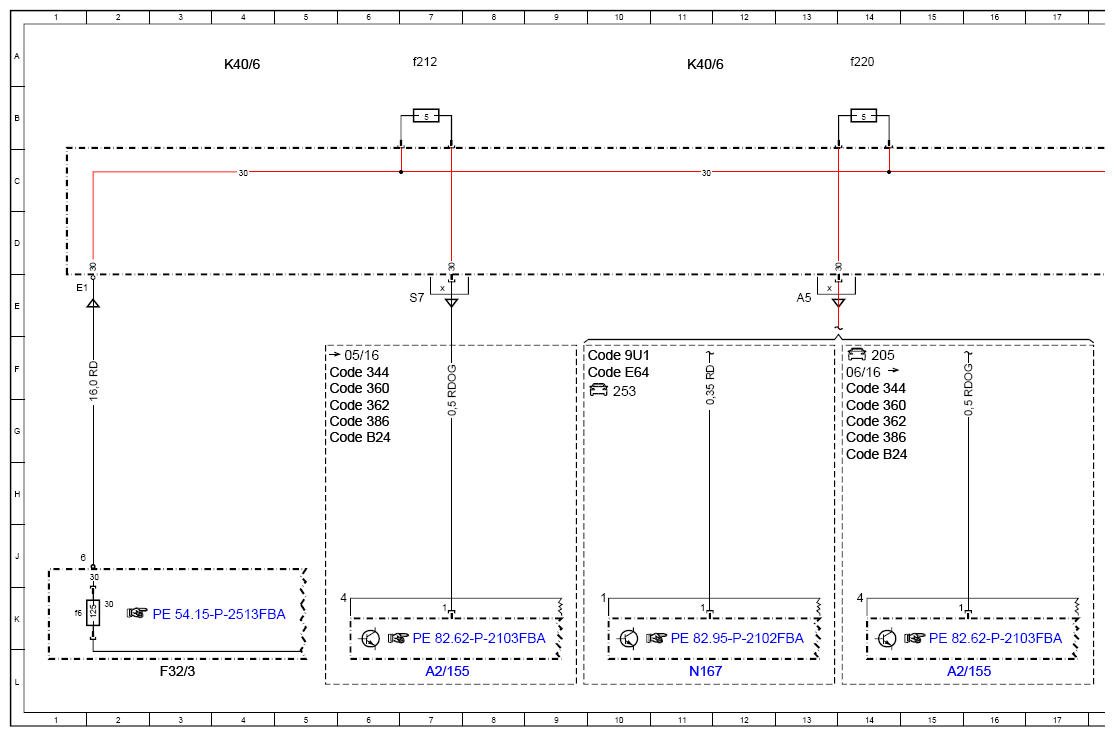

| K40/6f212 | Fuse 212 | 7A |
| K40/6f213 | Fuse 213 | 109A |
| K40/6f214 | Fuse 214 | 103A |
| K40/6f215 | Fuse 215 | 27A |

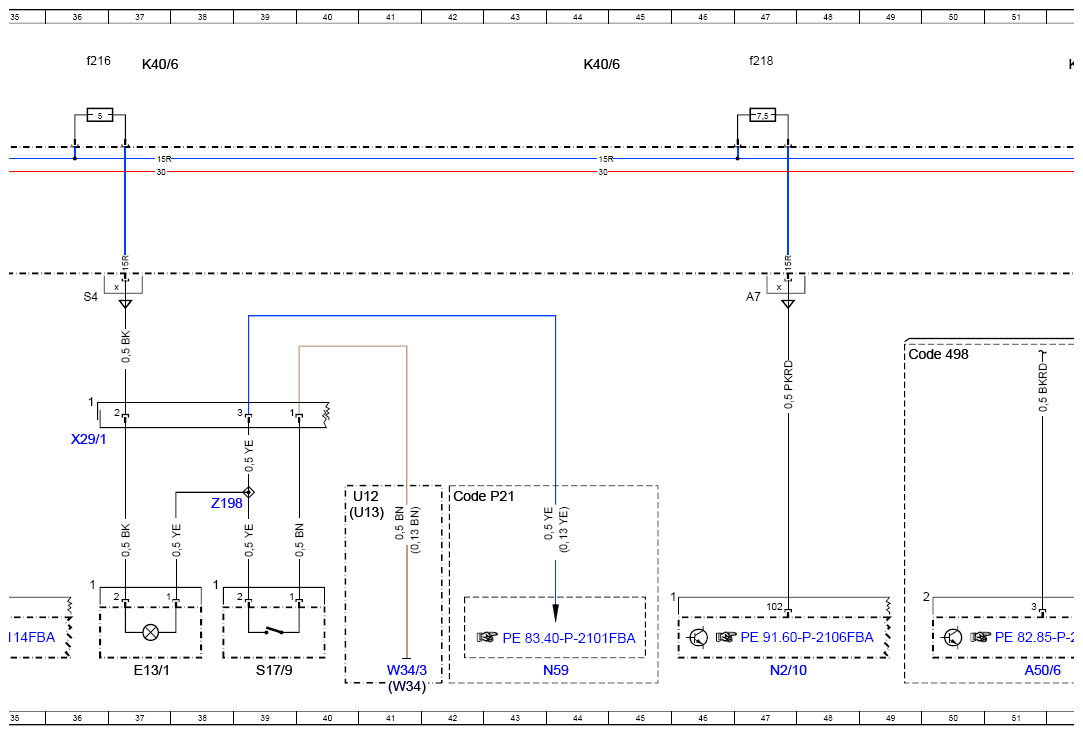

| K40/6f216 | Fuse 216 | 36A |
| K40/6f217 | Fuse 217 | 54A |
| K40/6f218 | Fuse 218 | 47A |
| K40/6f219 | Fuse 219 | 29A |
| K40/6f220 | Fuse 220 | 14A |
| K40/6kF | Circuit 15R relay | 19A |
| N10/6 | Front SAM control unit | 20L |
| N10/6 | Front SAM control unit | 34L |
| N110 | Weight Sensing System (WSS) control unit | 29L |
| N128 | Electric parking brake control unit | 103L |
| N167 | E-Call Russia (GLONASS) control unit | 11L |
| N2/10 | Supplemental restraint system control unit | 47L |
| N22/1 | Climate control, control unit | 82L |
| N26/3 | ATA [EDW]/towing sensor/interior motion sensor control unit | 95L |
| N26/5 | Electric steering lock control unit | 99L |
| N30/4 | Electronic Stability Program control unit | 107L |
| N30/4 | Electronic Stability Program control unit | 112L |
| N30/4 | Electronic Stability Program control unit | 112L |
| N58/1 | Climate control operating unit | 78L |
| N59 | Perfume atomizer generator | 44L |
| N72/1 | Upper control panel control unit | 74L |
| N73 | Electronic ignition switch control unit | 66L |
| N80 | Steering column module control unit | 86L |
| S17/9 | Glove box lamp switch | 39L |
| U12 | Valid for left-hand drive vehicles | 40H |
| U13 | Valid for right-hand drive vehicles | 40H |
| U165 | Valid for AMG | 102F |
| U986 | Not valid for AMG | 110F |
| W34 | Left footwell ground point | 41L |
| W34 | Left footwell ground point | 26H |
| W34/3 | Right footwell ground point | 41L |
| X11/4 | Diagnostic connector | 62L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 54H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 99H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 29H |
| X29/1 | Glove compartment electrical connector | 36G |
| X41/2 | Roof light bar separation point | 54L |
| Z198 | Connector sleeve, glove compartment illumination | 38H |
| Z4/34z1 | Overhead control panel terminal 30 connector sleeve | 95H |
| Z50/38z1 | Instrument panel LIN connector sleeve | 23H |
